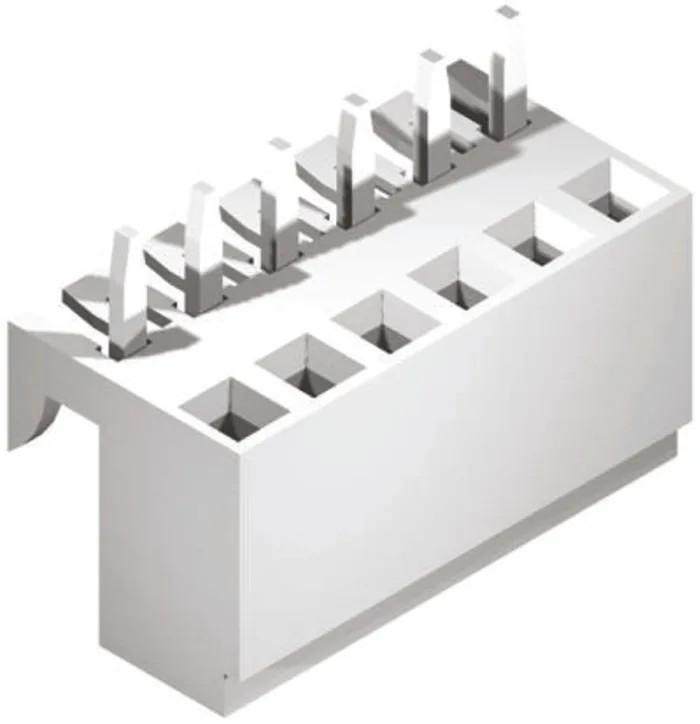

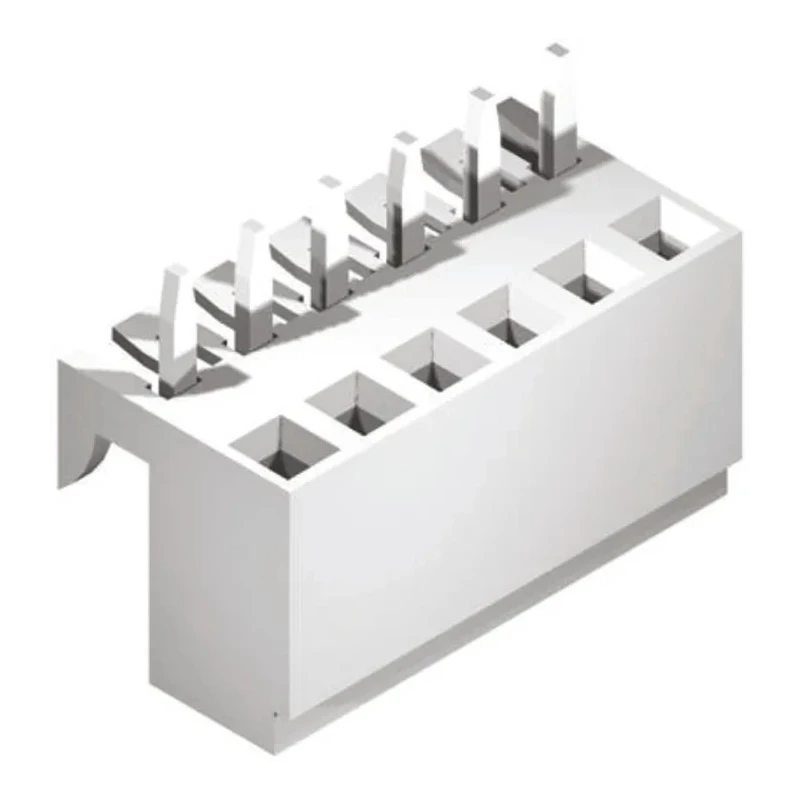

Molex KK 254 Series Straight Through Hole PCB Socket, 16-Contact, 1 Row, 2.54 mm Pitch, Solder Termination 22-17-3162
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Features 16 female contacts in a single row configuration.
- Offers a pitch of 2.54 mm suitable for standard PCB layouts.
- Constructed with nylon housing for durability and insulation.
- Brass contacts plated with gold ensure optimal conductivity and corrosion resistance.
- Supports a maximum current rating of 2.5 A and voltage rating of 250 V.
- Designed for solder termination and through-hole mounting for secure attachment.
- Operates reliably within a temperature range of -40°C to 105°C.
- Suitable for board-to-board signal connector systems in electronic assemblies.
Product Description
Molex 22-17-3162 PCB Socket is a part of the KK 254 Series, engineered for precise and robust connections in electronic assemblies. This 16-contact, single-row socket features a 2.54 mm pitch and straight orientation, making it ideal for through-hole mounting on PCBs.
Its nylon housing provides high durability and electrical insulation, while the brass female contacts plated with gold enhance signal integrity and resistant to corrosion. The socket is rated for 2.5 A current and 250 V voltage, accommodating standard industrial and laboratory equipment requirements.
It operates effectively in extreme temperature conditions ranging from -40°C up to 105°C, ensuring reliability in varied environments. This component is highly suitable for board-to-board signal connector systems within manufacturing, industrial control, and electronic device applications.
Features 16 female contacts in a single row configuration. Offers a pitch of 2.54 mm suitable for standard PCB layouts. Constructed with nylon housing for durability and insulation. Brass contacts plated with gold ensure optimal conductivity and corrosion resistance.
Supports a maximum current rating of 2.5 A and voltage rating of 250 V. Designed for solder termination and through-hole mounting for secure attachment. Operates reliably within a temperature range of -40°C to 105°C. Suitable for board-to-board signal connector systems in electronic assemblies.
Choose Molex KK 254 Series PCB Socket 22-17-3162 for dependable and high-quality electronic connectivity solutions. Browse related electronics components and connectors at EnvMart for your industrial and laboratory needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 2.54 mm, making it suitable for standard PCB layouts.
This model features 16 female contacts in a single row configuration.
It supports a maximum current rating of 2.5 A and a voltage rating of 250 V.
The housing is made of nylon for durability and insulation, while the contacts are brass plated with gold for optimal conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This socket is designed for solder termination, ensuring a secure attachment.
It is designed for through-hole mounting, which provides a secure fit on PCBs.
It is suitable for board-to-board signal connector systems in electronic assemblies.
The orientation of this model is straight, facilitating easy installation on PCBs.
The country of origin for this product is India.
This socket features female contacts, designed for connection with male connectors.
The gold plating on the brass contacts enhances signal integrity and provides corrosion resistance, ensuring reliable performance.
