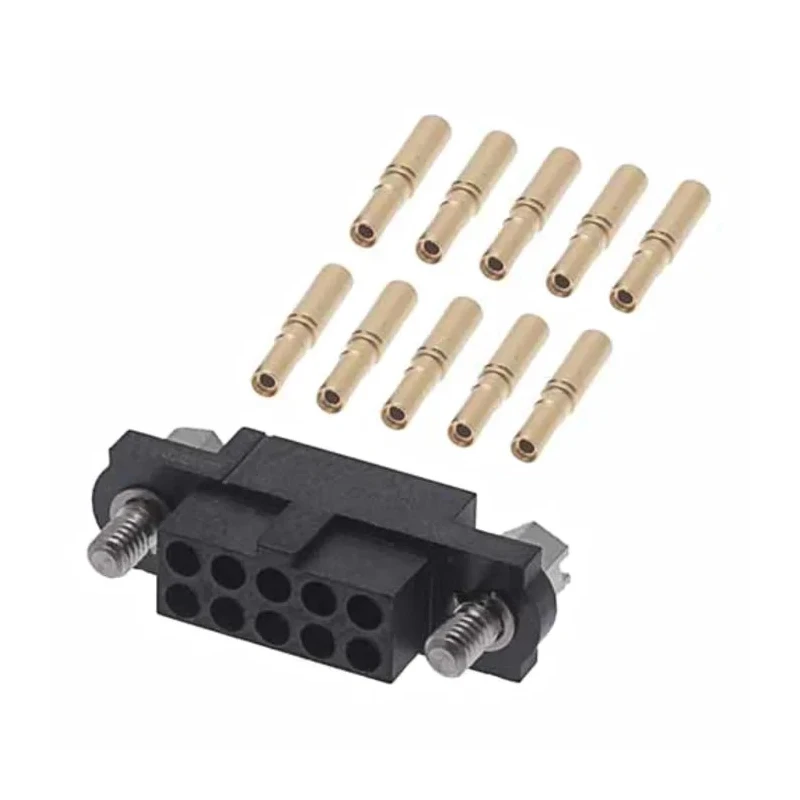

HARWIN PCB Connector Kit M80 Series Housing with Hexagonal Slotted Jackscrews and 10 Barrel Crimp Contacts Gold M80-4611005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Model | M80-4611005 |
| Series | M80 |
| Kit Type | Connector Kit |
| Complete kit | housing with Hexagonal slotted jackscrews fitted, 10 x barrel crimp contacts loose - Gold finish on contact clip and crimp shell |
Key Features
- The kit includes housing fitted with hexagonal slotted jackscrews.
- Contains 10 loose barrel crimp contacts with gold finish on contact clip and crimp shell.
- Suitable for small bore cables, accommodating 24 to 28 AWG wires with insulation diameter up to 1.1mm.
- Features a 2.00mm pitch in the M80 series connector system.
- Designed for reliable PCB and wire housing connections in electronic assemblies.
- Manufactured in the United Kingdom ensuring quality and consistency.
- Compatible spare contacts available under part number M80-0130005.
Product Description
HARWIN M80-4611005 PCB Connector Kit is a comprehensive connector solution designed for high-reliability PCB and wire housing applications. This kit includes a housing fitted with hexagonal slotted jackscrews to ensure secure mechanical fastening during installation. The kit also provides 10 loose barrel crimp contacts finished with gold plating on both the contact clip and crimp shell, promoting excellent electrical conductivity and resistance to corrosion.
The kit supports small bore cables ranging from 24 to 28 AWG with a maximum insulation diameter of 1.1mm, making it suitable for delicate wire sizes common in precision electronic assemblies. Featuring a 2.00mm pitch compliant with the M80 series Datamate connector system, this connector kit upholds industry standards for compact and reliable connectivity.
Manufactured in the United Kingdom, the HARWIN M80 Connector Kit reflects stringent quality control standards and is suitable for applications in industrial electronics, communications equipment, aerospace, and other sectors requiring dependable PCB connectors.
The kit includes housing with hexagonal slotted jackscrews fitted for secure assembly. Ten barrel crimp contacts with gold finish enhance electrical performance. Appropriate for 24 to 28 AWG cable with up to 1.1mm insulation diameter.
2.00mm pitch ensures compatibility with the M80 Datamate connector series. Ideal for high-reliability electrical and electronic manufacturing environments. Spare contacts are available separately as part number M80-0130005.
Country of Origin: United Kingdom.
For related products and components, browse the PCB Connector Kits category on EnvMart to explore high-quality connector solutions designed for industrial and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of the M80 series connector in this kit is 2.00mm, ensuring compatibility with the M80 Datamate connector system.
This connector kit is suitable for small bore cables ranging from 24 to 28 AWG, with a maximum insulation diameter of 1.1mm.
The kit includes a housing fitted with hexagonal slotted jackscrews and 10 loose barrel crimp contacts finished with gold plating on both the contact clip and crimp shell.
The HARWIN M80-4611005 connector kit is manufactured in the United Kingdom, ensuring quality and consistency.
The hexagonal slotted jackscrews are designed to ensure secure mechanical fastening during installation of the connector kit.
The gold finish on the barrel crimp contacts enhances electrical conductivity and resistance to corrosion, improving overall performance.
Yes, compatible spare contacts are available separately under part number M80-0130005.
This connector kit is suitable for applications in industrial electronics, communications equipment, aerospace, and other sectors that require reliable PCB connectors.
The kit includes 10 loose barrel crimp contacts.
The HARWIN M80-4611005 is a connector kit that includes housing and crimp contacts for PCB and wire housing applications.
The 2.00mm pitch is significant as it complies with the M80 series Datamate connector system, ensuring compact and reliable connectivity.
The complete configuration of the kit includes housing with hexagonal slotted jackscrews fitted and 10 loose barrel crimp contacts with a gold finish.
