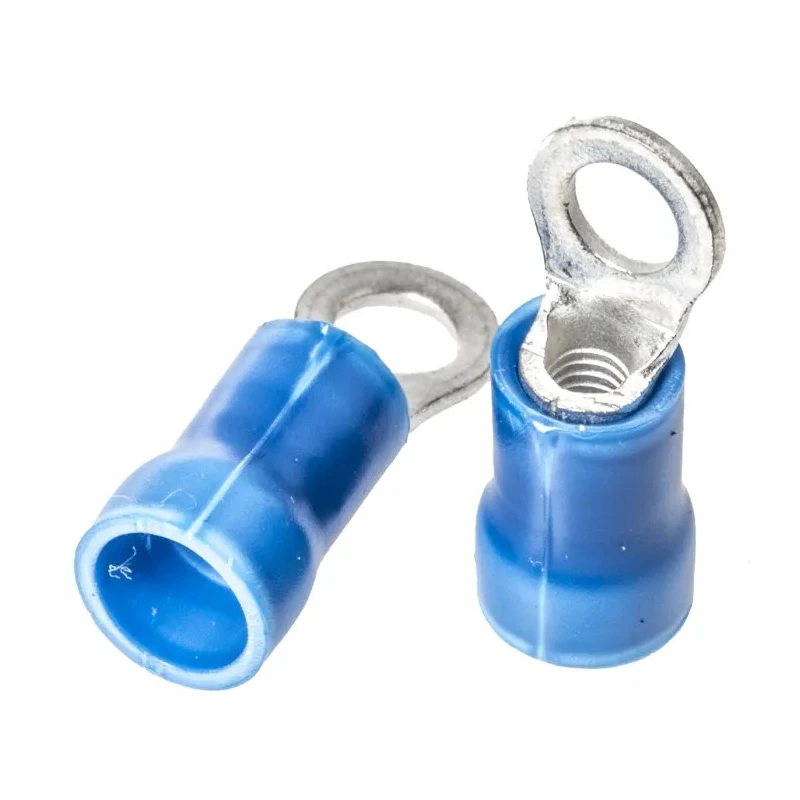

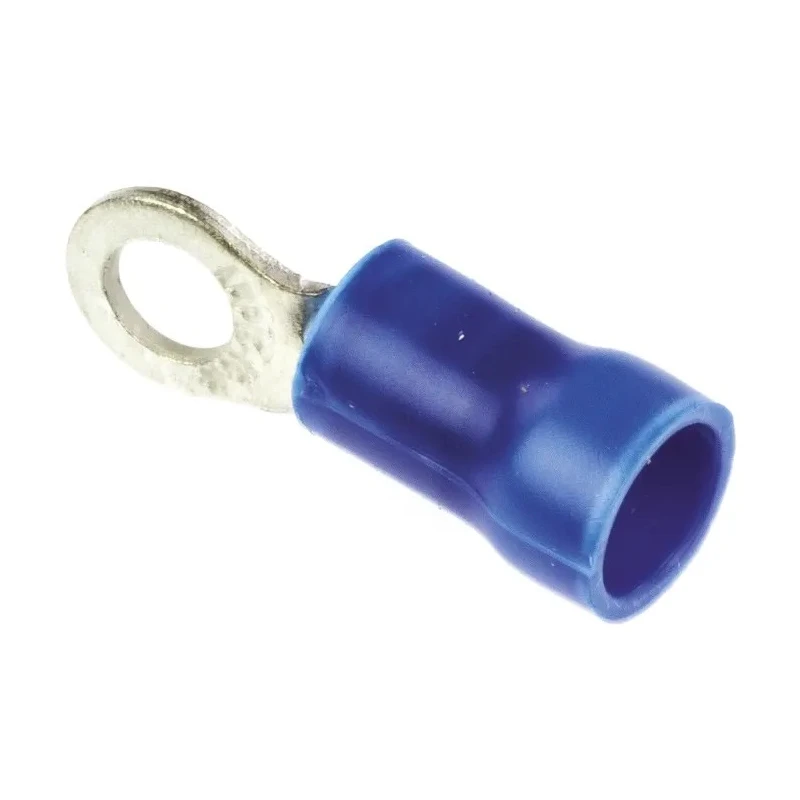

RS PRO PLASTI-GRIP Insulated Crimp Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size Blue 34158
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 34158 |
| Insulation | Insulated |
| Overall Length | 18.16mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 6.35mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed from high conductivity copper with tin plating.
- Features a 94V-0 rated vinyl insulation sleeve with high dielectric strength.
- Inner barrel serration ensures maximum tensile strength and electrical contact after crimping.
- Funnel entry design facilitates easy wire insertion for efficient crimping.
- Ring dimensions are 6.35 mm outer diameter and 3.68 mm inner diameter.
- Suitable for operating temperatures up to 105°C.
- Designed for use with wire sizes from 1.0 mm² to 2.6 mm².
- Blue color coding corresponds to wire size range compliant with industry standards.
Product Description
TE Connectivity 34158 PLASTI-GRIP insulated crimp ring terminal offers a high-quality solution for electrical connections requiring a secure and efficient crimp. The terminal is designed for use with 16 AWG to 14 AWG wire sizes and features an M3.5 stud size, making it suitable for various electronic and electrical assembly applications.
Manufactured from copper with tin plating, the contact material provides excellent conductivity while resisting corrosion and wear. The high dielectric strength vinyl insulation sleeve is rated at 94V-0, ensuring safe and reliable insulation even under demanding conditions.
The closed barrel ring tongue design includes a serrated inner barrel to maximize tensile strength and provide superior electrical contact post-crimping. The funnel-shaped wire entry simplifies wire insertion, thereby improving installation efficiency and reducing the risk of improper crimps.
With an overall length of 18.16 mm, an outer ring diameter of 6.35 mm, and an inner ring diameter of 3.68 mm, this ring terminal fits standard M3.5 studs securely. It is color-coded blue to indicate its wire size range compatibility from 1 mm² (16 AWG) up to 2.6 mm² (14 AWG).
The product is rated for maximum operating temperatures up to 105°C, making it ideal for use in automotive, industrial electrical equipment, manufacturing lines, and HVAC systems where reliable electrical connections are critical.
Constructed from high conductivity copper with tin plating. Features 94V-0 rated vinyl insulation for enhanced dielectric strength. Serrated inner barrel provides excellent electrical contact and tensile strength. Funnel wire entry design for easy insertion and crimping.
Blue insulation sleeve signifies wire size range 16 AWG to 14 AWG. Fits M3.5 stud size terminals securely. Compact size with 18.16 mm overall length. Rated for operating temperatures up to 105°C.
This TE Connectivity Ring Terminal is compatible with a wide range of electrical wiring requirements in industrial, automotive, HVAC, and manufacturing applications. With its durable construction and efficient design, it ensures secure, stable, and high-quality electrical connections.
Explore more products in the Wire Terminals & Splices category at EnvMart for comprehensive solutions to your electrical connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for use with wire sizes from 16 AWG to 14 AWG, which corresponds to a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
The terminal fits securely on M3.5 stud size terminals.
It is rated for maximum operating temperatures up to 105°C.
The terminal is constructed from high conductivity copper with tin plating, and it features a vinyl insulation sleeve.
The overall length is 18.16 mm, with an outer ring diameter of 6.35 mm and an inner ring diameter of 3.68 mm.
The funnel entry design facilitates easy wire insertion, improving installation efficiency and reducing the risk of improper crimps.
It features a 94V-0 rated vinyl insulation sleeve that provides high dielectric strength.
The serrated inner barrel ensures maximum tensile strength and provides superior electrical contact after crimping.
It is suitable for a variety of applications including automotive, industrial electrical equipment, manufacturing lines, and HVAC systems.
The thickness of the vinyl insulation is 0.79 mm.
This terminal belongs to the PLASTI-GRIP series by TE Connectivity.
The country of origin for this terminal is India.
