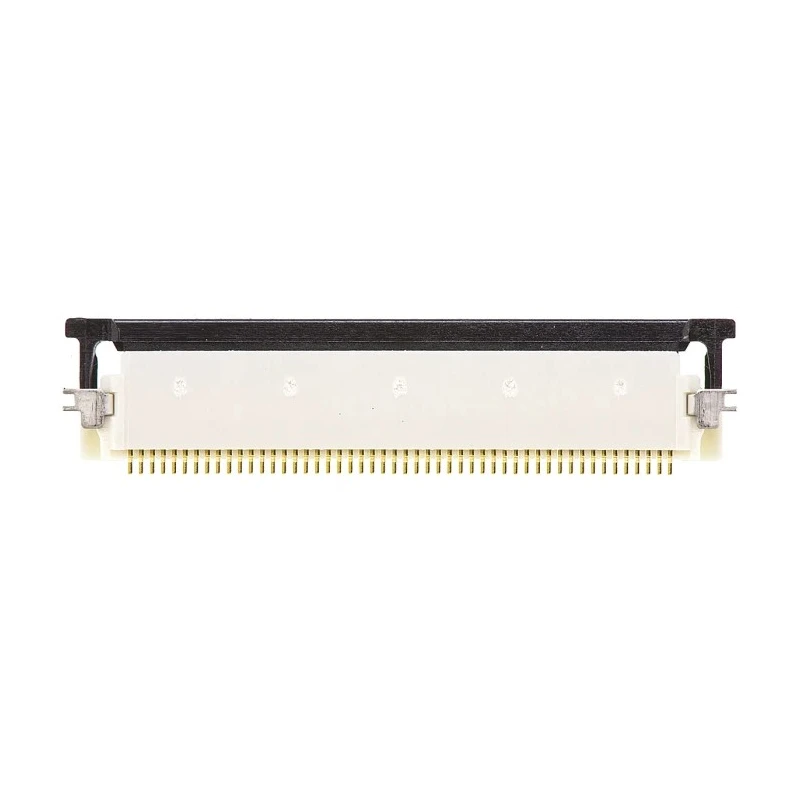

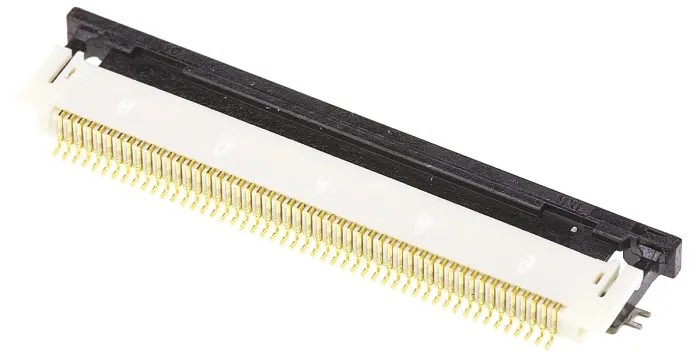

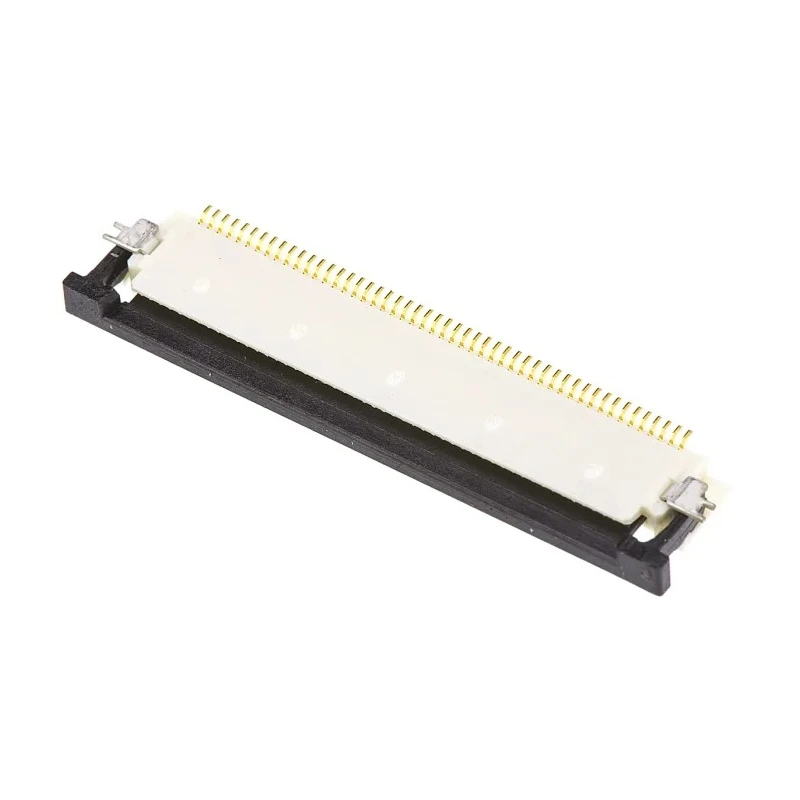

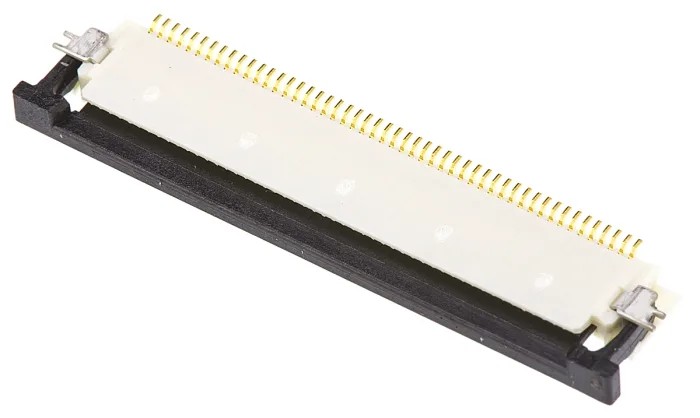

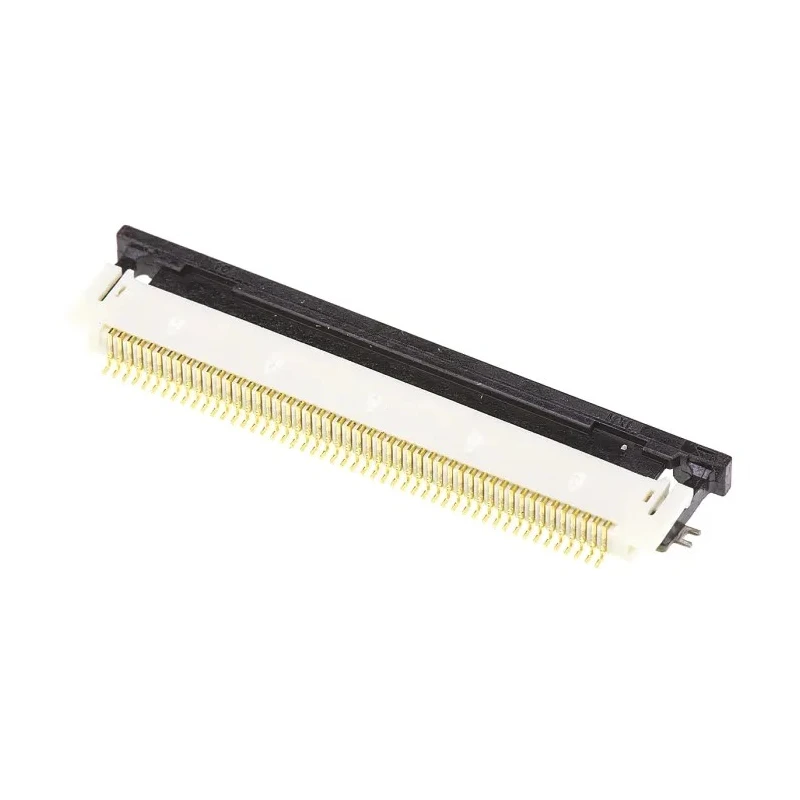

Molex 0.5 mm Pitch 50 Way Right Angle Female Easy-On FPC Connector, Solder Termination 54132-5062

Molex 54132-5062 is a 0.5 mm pitch, 50 way right angle female Easy-On FPC connector with solder termination designed for surface mounting. It features a space-saving design with a slide type actuator that facilitates secure and effortless insertion of flat flexible cables (FFC) or flexible printed circuits (FPC). The movable contacts maintain strong electrical retention, ensuring continuous electrical contact even when cables are subjected to mechanical motion.

This connector is ideal for devices requiring high-density signal interconnections such as automotive navigation and audio systems, digital cameras, mobile phones, tablets, and medical equipment. Its design includes solder tabs that secure and relieve strain on the solder tail joints to the PCB, enhancing mechanical stability during thermal cycling and handling.

Constructed with phosphor bronze contacts plated in gold over nickel, and housed in durable nylon, the connector supports operating voltages up to 50V and currents of 500mA. It operates reliably across a temperature range of -20°C to 85°C, making it suitable for various industrial and consumer electronics applications.

The connector is part of the 54132 series and is manufactured in Malaysia to meet quality standards for FPC connectors without specific approvals. Its right angle orientation and single row, bottom contact configuration provide a compact footprint suitable for dense PCB layouts.

Space-saving design for tight packaging applications. Zero Insertion Force (ZIF) slide type actuator for easy and secure FPC insertion. Movable contacts ensure durable contact retention. Solder tabs provide mechanical stability on PCB.

Phosphor bronze contacts plated with gold over nickel for corrosion resistance. Nylon housing for rugged durability. Operating voltage up to 50V and current rating of 500mA. Temperature range from -20°C to 85°C suitable for diverse environments.

Right angle orientation supports flexible PCB layouts. Locking mechanism enhances connector mating security.

These properties make the Molex 54132-5062 connector a reliable choice for industrial, automotive, telecommunications, and consumer electronic applications. Explore further FPC Connector options and accessories on EnvMart for comprehensive electronics design solutions.
