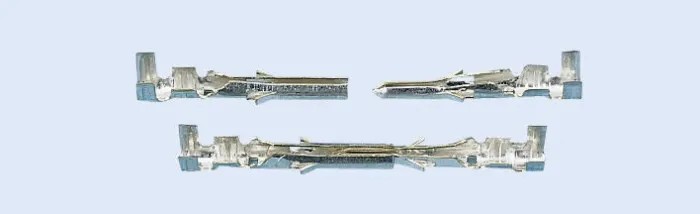

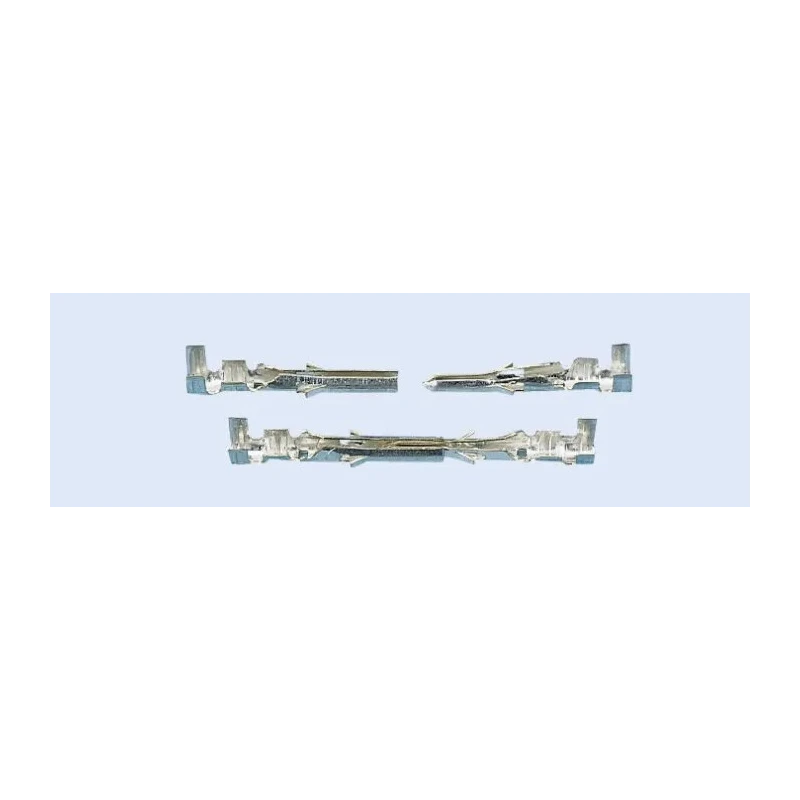

Molex 1560 Series Male Crimp Terminal for STANDARD .062 in Connector Housing, Gold Plated Brass Contact 24-18 AWG 02-06-6101

Molex 02-06-6101 is a high-quality Male Crimp Terminal from the 1560 Series designed for use with STANDARD .062 inch connector housings. This crimp terminal is engineered with gold-plated brass contacts to guarantee excellent conductivity and resistance to corrosion, suitable for a variety of electronic and electrical applications.

It accommodates wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum, allowing flexibility in wire selections. The terminal supports a rated voltage of 250V and a current rating of 5V, ensuring consistent and stable electrical connections in circuits.

The shell is made from nylon UL 94-V2, featuring a neutral natural color that provides effective insulation and mechanical strength. The operating temperature range of this terminal is from -40°C up to 105°C, making it suitable for use in demanding environments including consumer electronics, communications, networking, and portable devices.

The termination type is crimp, which provides a secure and reliable mechanical and electrical bond to the wire. The maximum contact resistance is rated at 3.2 milliohms, ensuring minimal voltage drop and signal degradation.

This terminal belongs to the Molex Standard .062 inch Crimp Terminal system, which features round terminals that can be oriented in any direction, secured by a passive friction lock within the housing. This system supports 1 to 36 circuit housings, facilitating versatile wiring harness designs.

Designed to fit STANDARD .062 inch connector housings for compatibility. Gold-plated brass contacts enable low resistance and corrosion resistance. Supports wire sizes from 24 AWG minimum to 18 AWG maximum for flexible wiring.

Rated voltage of 250V and current rating of 5V ensures stable electrical performance. Operates within temperature range of -40°C to 105°C for diverse environments. Features nylon UL 94-V2 shell material with neutral natural color for insulation and durability.

Termination type is crimp for secure mechanical and electrical connection. Maximum contact resistance of 3.2 milliohms ensures minimal signal loss.

This product is ideal for industrial, electronics manufacturing, networking equipment assembly, and other commercial applications requiring reliable connector terminals. It is made in the United States to stringent quality standards.
