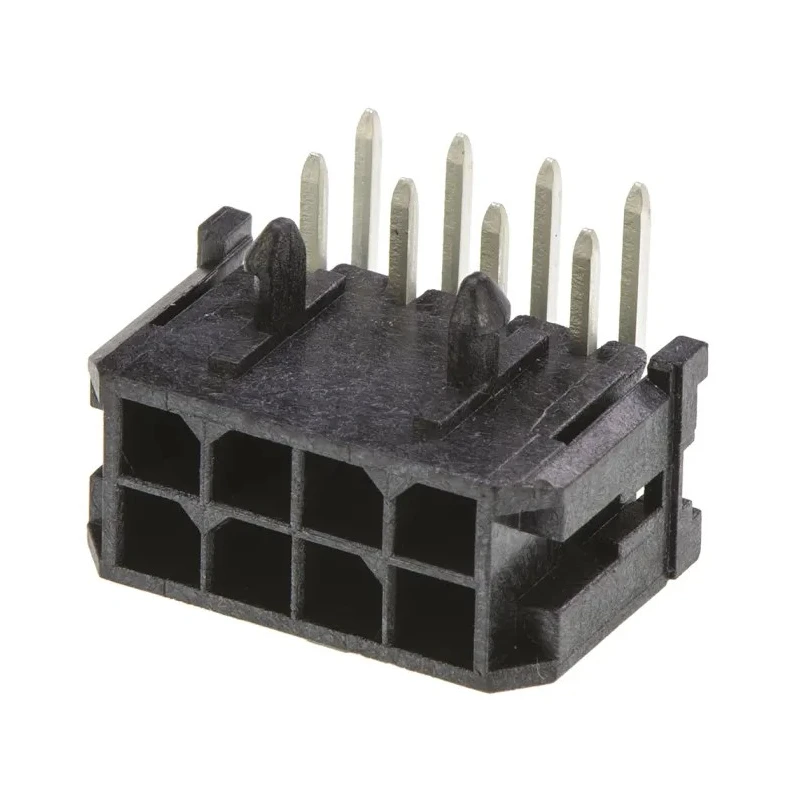

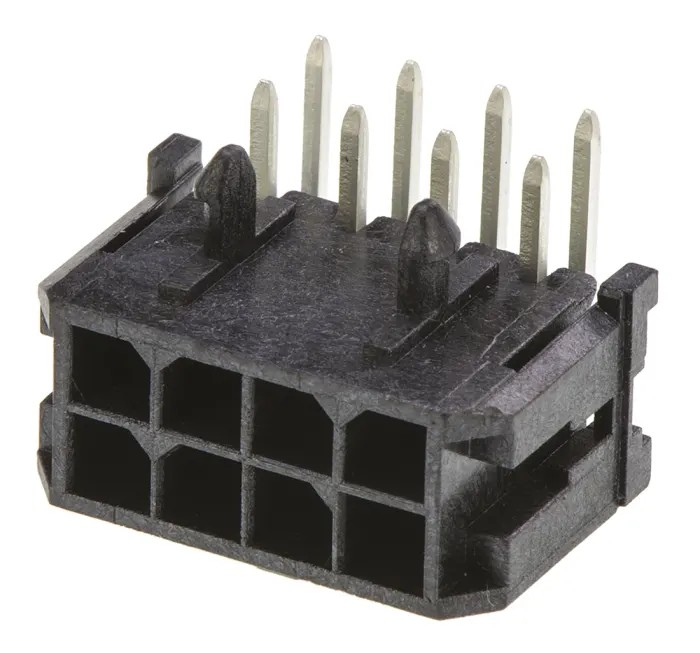

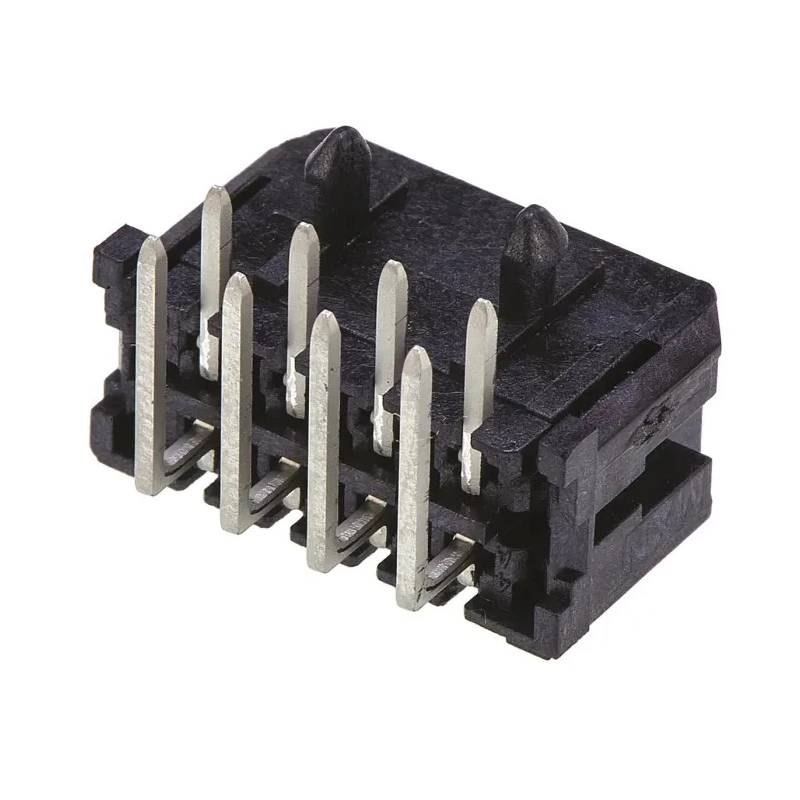

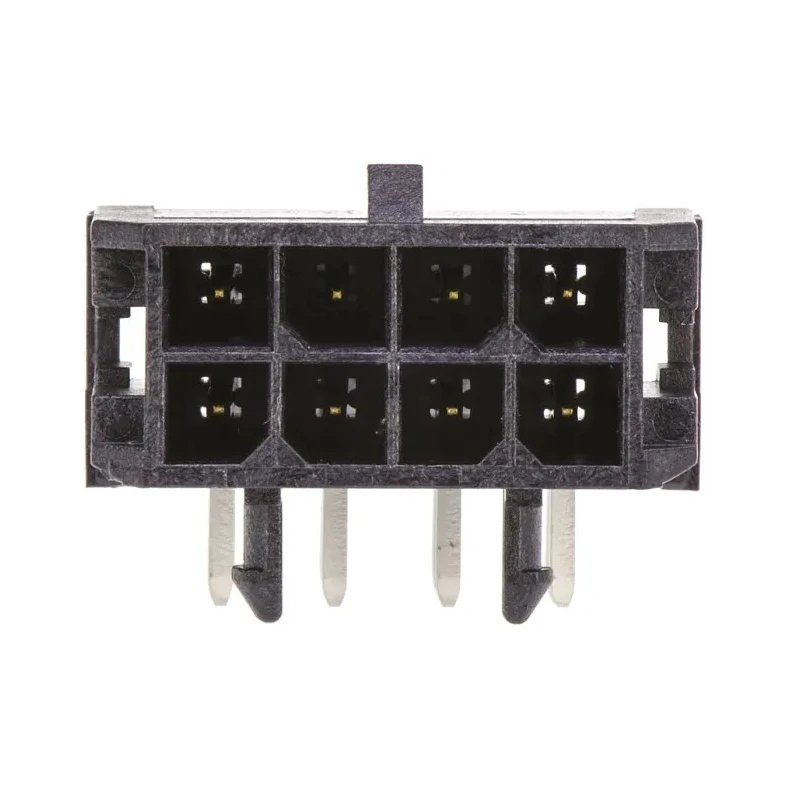

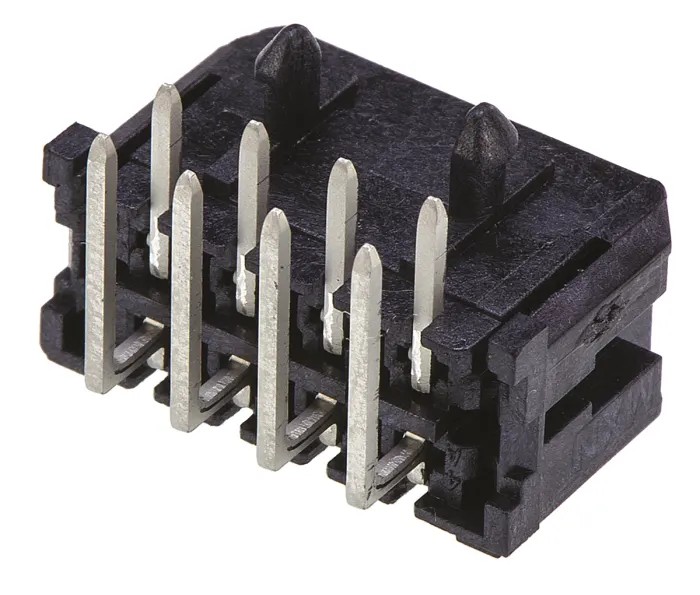

Wurth Elektronik Micro-Fit 3.0 Series Right Angle Through Hole PCB Header 8 Contacts 3 mm Pitch 2 Rows Shrouded 43045-0802

Molex 43045-0802 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is engineered as a dual-row, 8-contact PCB connector with 3 mm pitch, designed to provide a compact and reliable power distribution solution for electronic applications. This connector features a shrouded, right angle orientation with a through hole mount, ensuring a secure and stable connection on the PCB.

The housing is made from high-temperature UL 94V-0 Liquid Crystal Polymer, capable of withstanding IR reflow soldering temperatures up to 265°C, suitable for modern manufacturing processes. Gold-plated brass contacts deliver excellent electrical conductivity and corrosion resistance, with a current rating of up to 5A, making it useful in mid-power electronic devices.

Positive latching via a locking ramp on the housing secures the connector to its mating counterpart to prevent accidental disconnections during operation. Additionally, the snap-in plastic peg PCB locks provide mechanical stability by firmly affixing the connector to the PCB substrate.

Fully isolated dual beam terminals on the contacts reduce electrical arcing, improving reliability in diverse operational environments. The PCB header is designed with environmental robustness, operating over temperatures from -40°C to 125°C, making it suitable for a wide range of industrial and commercial applications.

Common applications for this Micro-Fit 3.0 Series PCB header include military commercial off-the-shelf (COTS) equipment, solar power installations, consumer products such as dryers and refrigerators, data communication devices including routers and servers, medical instruments, telecommunications equipment, and gaming terminals.

Compact PCB header designed for mid-range power distribution. Capable of handling up to 5A current safely. Right angle orientation with through hole mounting. Shrouded design with positive locking to prevent accidental disconnections.

Constructed with high-temperature UL 94V-0 Liquid Crystal Polymer housing. Gold-plated brass contacts ensure reliable electrical performance. Suitable for IR reflow soldering withstanding up to 265°C. Snap-in plastic peg PCB locks for secure placement on PCB.

Fully isolated dual beam terminals reduce arcing risk. Applications include military COTS, solar power, consumer appliances, data communications, medical, and telecommunications. Explore the Electronics & Electricals category for other high-quality PCB connectors and header solutions to match your design requirements.
