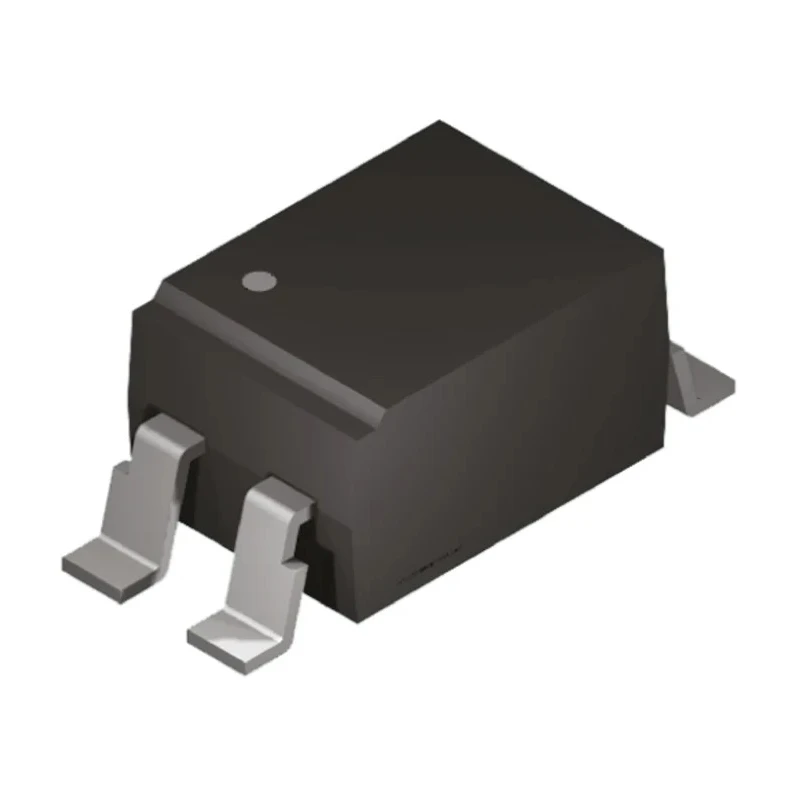

Vishay DC Input Optocoupler Surface Mount Phototransistor Output 4-Pin SOP TCLT1002

Vishay TCLT1002 DC Input Optocoupler is a surface mount phototransistor output device housed in a compact 4-pin SOP package. It is engineered for electrical isolation in industrial, electronic, and control systems, providing reliable signal transfer and high noise immunity with an isolation voltage rating of 5000V ac.

This optocoupler operates with DC input current up to 60mA and withstands a wide operating temperature range from -55°C to 100°C making it ideal for demanding environments. The device exhibits typical rise and fall times of 3μs and 4.7μs respectively, enabling swift response in switching applications.

The current transfer ratio ranges from 0.63% minimum to 125% maximum, offering performance flexibility for various control and interface circuits. Its surface mount 4-pin SOP package supports automated assembly and compact circuit designs.

Vishay maintains compliance with international standards including EN and UL, assuring product safety and quality. Applications include industrial automation, signal isolation, and power supply interface circuits in electronics manufacturing, laboratory instrumentation, and HVAC controls.

The optocoupler provides high isolation voltage of 5000V ac. Designed for DC input current with maximum input current of 60mA. Wide operating temperature range from -55°C to 100°C. Fast typical rise and fall times of 3μs and 4.7μs respectively.

Current transfer ratio from 0.63% to 125% ensures reliable signal transfer. Compact 4-pin SOP surface mount package supports efficient PCB layout. Complies with EN, UL standards ensuring safety and certification compliance.

Single channel optocoupler suitable for diverse industrial electronics applications. Explore more from Vishay Optocoupler series to find suitable solutions for your industrial electronic design and manufacturing needs at EnvMart.
