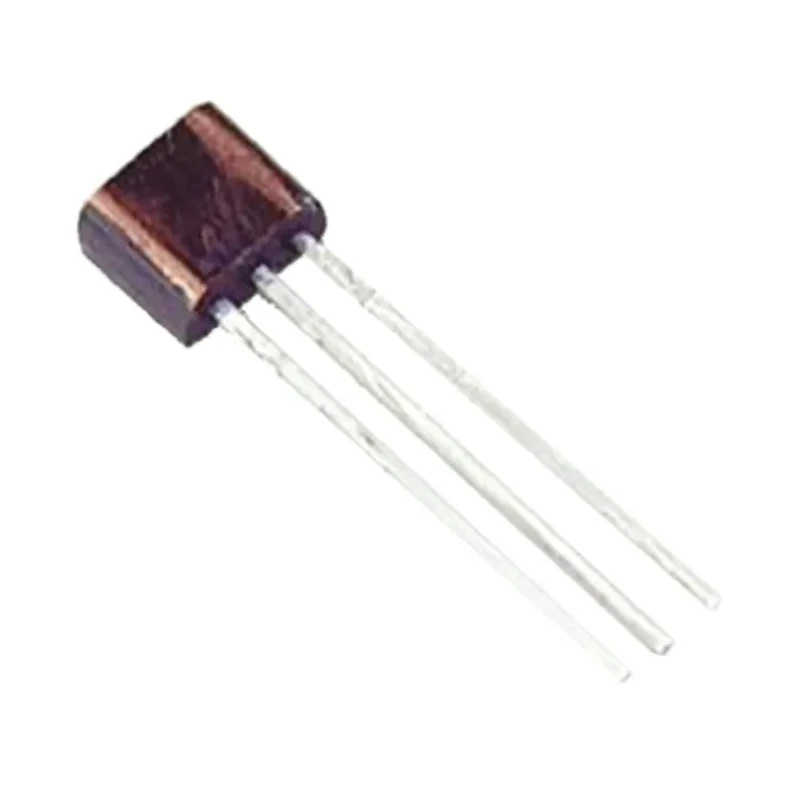

DiodesZetex General Purpose NPN Bipolar Transistor 2 A, 45 V, 1 W Power Dissipation, E-Line Package ZTX690BSTZ

DiodesZetex ZTX690BSTZ is a general-purpose NPN bipolar transistor designed primarily for switching and amplification in electronic circuits. It supports a maximum collector current of 2 A and can handle collector-emitter voltages up to 45 V. The transistor is housed in a compact 3-pin E-Line package suitable for through-hole PCB mounting.

This transistor's maximum power dissipation rating of 1 W makes it suitable for moderate power applications in consumer electronics, industrial controls, and automotive systems. Its minimum DC current gain (hFE) of 150 provides reliable amplification performance. The device is engineered to operate reliably within a wide temperature range of -55°C to 200°C, ensuring durability under harsh environmental conditions.

The maximum transition frequency of 150 MHz allows usage in medium frequency switching and amplification circuits found in communication and signal processing equipment. The single transistor configuration and standard E-Line package design facilitate easy integration into a broad range of electronic assemblies.

Maximum DC collector current is 2 A for high current switching applications. Rated collector-emitter voltage of 45 V ensures stable operation in low to medium voltage circuits. E-Line package provides compact and reliable through-hole mounting.

Maximum power dissipation is 1 W allowing moderate power handling capabilities. Minimum DC current gain (hFE) of 150 for enhanced signal amplification. Wide operating temperature range from -55°C to 200°C for robust performance.

Maximum transition frequency of 150 MHz suitable for medium frequency applications. 3-pin E-Line package configuration for standard bipolar transistor footprint.

This transistor is ideally suited for industrial, electronic component manufacturing, automotive electronic control systems, consumer electronics, and educational laboratory use. It supports applications requiring robust and reliable transistor switching and amplification performances.
