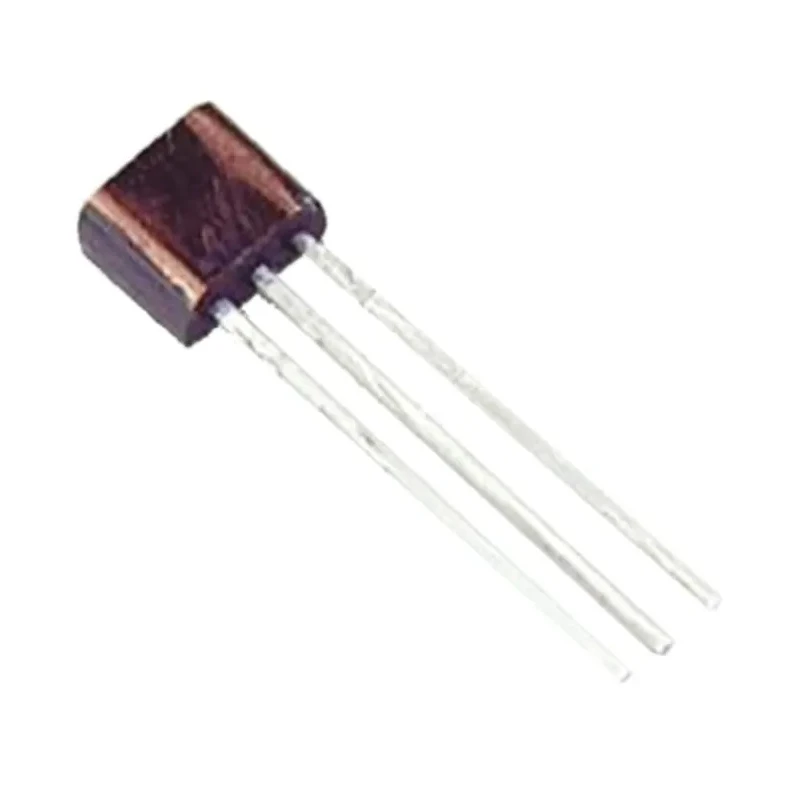

DiodesZetex High Voltage PNP Bipolar Transistor ZTX758, 500 mA, 400 V, 3-Pin E-Line Through Hole ZTX758

DiodesZetex ZTX758 is a high voltage PNP bipolar transistor designed primarily for electronic and automotive applications requiring medium power amplification and switching.

This transistor is rated to handle a maximum DC collector current of 500 mA and a maximum collector-emitter voltage of 400 volts, making it suitable for circuits demanding robust voltage endurance. The device features a single transistor configuration with PNP polarity housed within an E-Line package, allowing easy through-hole mounting on printed circuit boards.

Its electrical characteristics include a maximum power dissipation of 1 watt and a transition frequency of up to 50 MHz, providing a balance of efficient power handling and switching speed. The transistor can operate reliably within a wide temperature range from -55°C up to 200°C, meeting automotive industry standards including AEC-Q101, ensuring durability in harsh environments.

Physically, the ZTX758 transistor provides a compact footprint with a height of 17.98 mm, a length of 4.77 mm, and a width of 2.41 mm, making it suitable for versatile PCB designs. Its minimum current gain (hFE) of 40 ensures effective signal amplification in various circuits.

This transistor is widely used in industrial, automotive electronics, power management, and control systems, where stable PNP transistor performance is essential. It offers reliable and temperature-resilient operation for effective switching and amplification tasks.

Maximum DC collector current of 500 mA. Maximum collector-emitter voltage rating of 400 V. Single transistor PNP configuration. Power dissipation capacity up to 1 watt. Transition frequency up to 50 MHz. Operating temperature range from -55°C to 200°C.

Minimum DC current gain of 40. E-Line 3-pin through-hole package. Compact physical dimensions with high reliability. Meets automotive standard AEC-Q101.

This DiodesZetex transistor is an excellent choice for reliable, high-voltage, and automotive-grade transistor applications. Explore more products in our Bipolar Transistors category at EnvMart for diverse industrial and electronics solutions.
