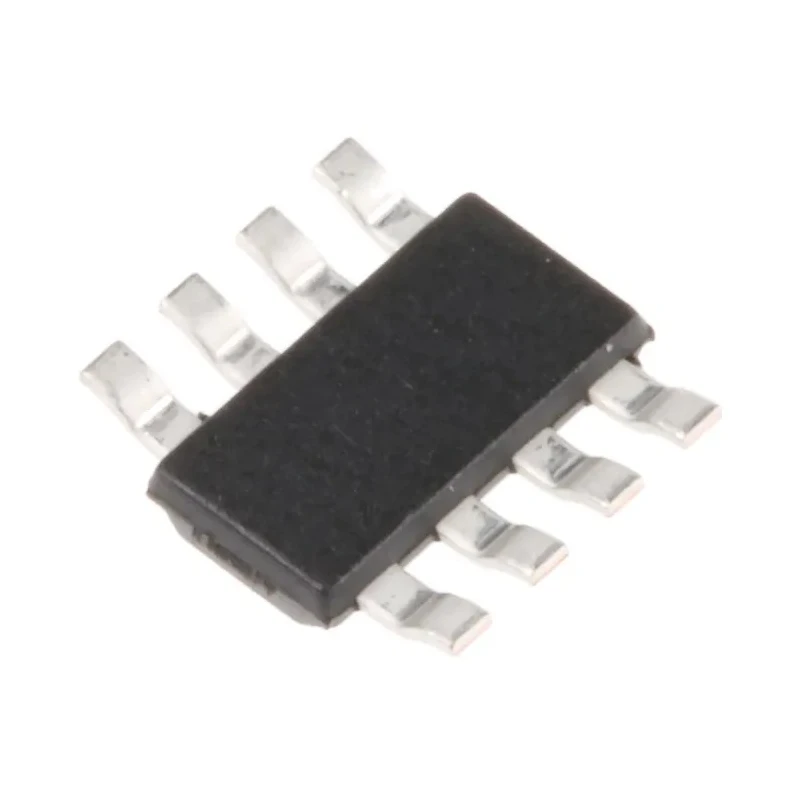

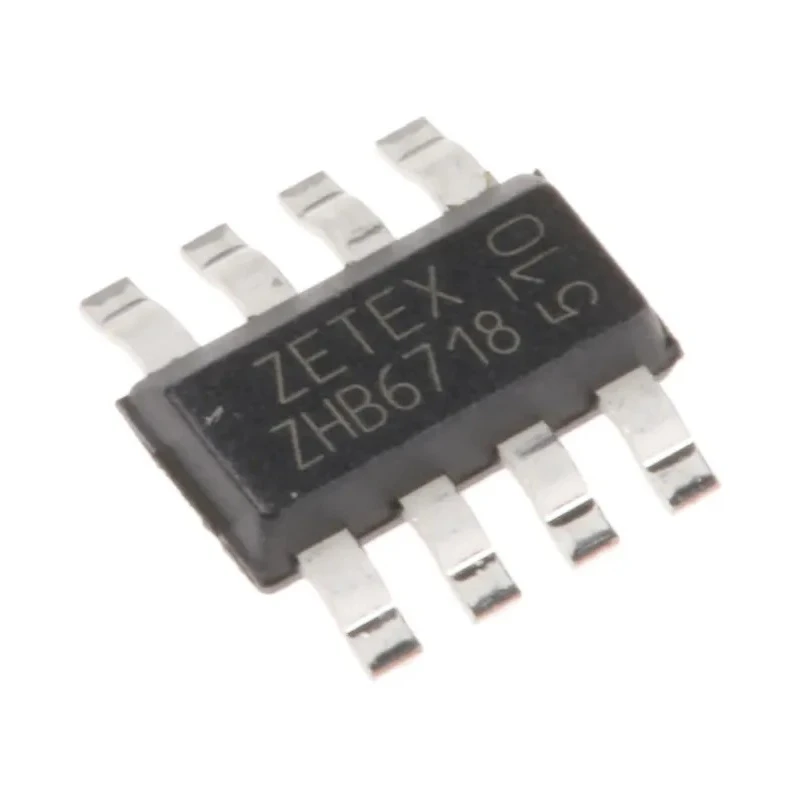

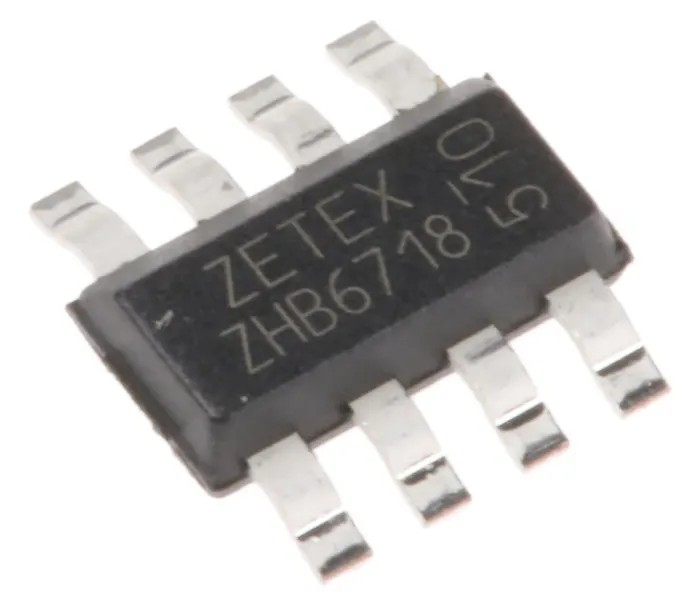

DiodesZetex Quad Transistor H-Bridge, 2.5 A NPN + PNP, 20 V, 8-Pin Surface Mount ZHB6718TA

DiodesZetex ZHB6718TA is a quad transistor H-bridge designed with NPN and PNP transistors, capable of handling a maximum DC collector current of 2.5 A and a maximum collector emitter voltage of 20 V. This 8-pin surface mount device is engineered for efficient power management and is ideal for use in switching and driver circuits, particularly H-bridge configurations used in motor control and power applications.

The transistor features a full bridge configuration that allows for bidirectional current flow, simplifying circuit design for DC motor drivers and other switching applications. The device supports a maximum power dissipation of 2 W, enabling it to operate safely under typical industrial loads with proper heat dissipation.

Its high maximum transition frequency of 140 MHz facilitates fast switching, essential for switching regulators, signal amplification, and high-frequency applications in industrial and automotive environments. The transistor operates reliably over a wide temperature range from -55°C to 150°C, meeting stringent automotive quality standards with its AEC-Q101 compliance.

The compact dimensions of 6.7 mm length, 7.3 mm width, and 1.7 mm height allow the ZHB6718TA to fit efficiently on PCB layouts where space is at a premium. Its surface mount package type supports automated assembly processes, ensuring efficient manufacturing and reduced costs.

Manufactured in Germany, the ZHB6718TA reflects robust European quality standards, providing long-term reliability and performance for designs requiring stable, high current transistor solutions. This product is well suited for industrial electronics, automotive controls, power management circuits, and electronic device manufacturing sectors.

Maximum collector current: 2.5 A. Maximum collector emitter voltage: 20 V. 8-pin surface mount package for compact design. Quad transistor full bridge configuration. Wide operating temperature range from -55°C to 150°C. Max power dissipation of 2 W.

High transition frequency of 140 MHz. Complies with automotive standard AEC-Q101. Dimensions: 6.7 mm x 7.3 mm x 1.7 mm. Country of origin: Germany. Explore the DiodesZetex range and other semiconductor components at EnvMart for reliable and efficient electronic part sourcing.
