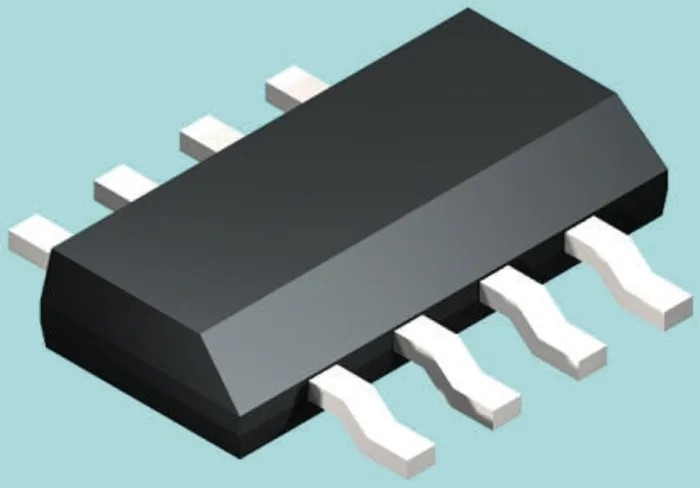

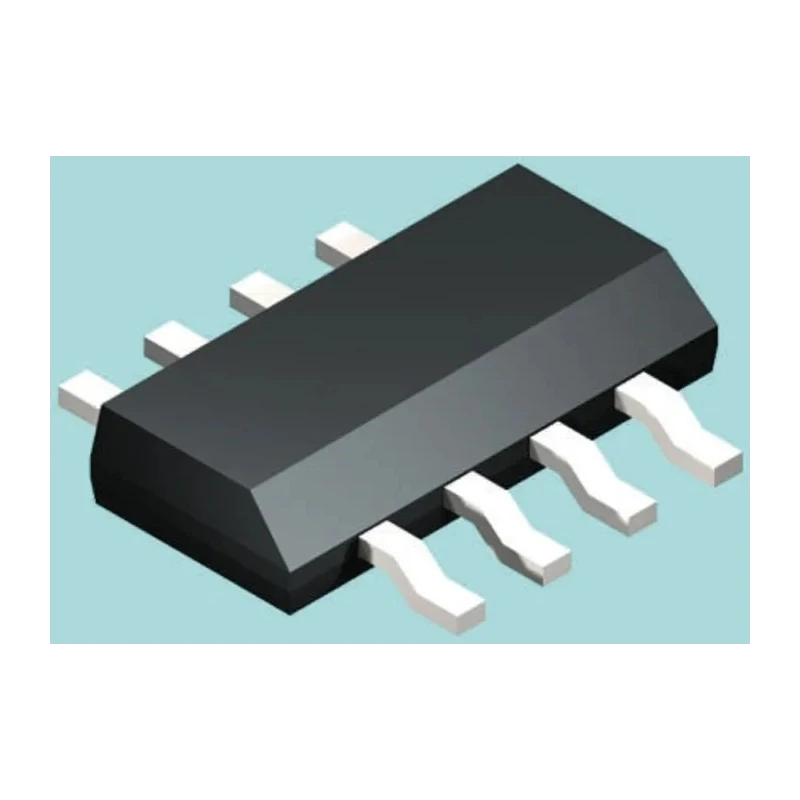

DiodesZetex 8-Pin Surface Mount Dual NPN + PNP Transistor 2 A 45 V ZDT6790TA

DiodesZetex ZDT6790TA is an 8-pin surface mount dual transistor featuring both NPN and PNP polarities. Designed for high reliability and versatility in electronic circuit applications, this transistor supports a maximum collector current of 2 amperes and collector emitter voltage up to 45 volts, making it ideal for a range of signal amplification and switching tasks.

The transistor configuration is isolated, ensuring minimal interference between the two transistors. This device offers a power dissipation capacity of 2.75 watts, allowing it to operate efficiently under moderate thermal stresses without degradation.

With a minimum DC current gain (hFE) of 150, the ZDT6790TA maintains strong amplification performance across its specified frequency range, which peaks at 150 MHz. The wide operating temperature range from -55°C to 150°C enables use in automotive, industrial, and other demanding environments where thermal stability is critical.

Packaged in a compact surface mount format with 8 pins, its footprint supports modern PCB design needs, minimizing space while maintaining electrical robustness. Its automotive standard compliance to AEC-Q101 further attests to its suitability for automotive electronics and other quality-sensitive applications.

Dual NPN and PNP transistor configuration minimizes space and maximizes circuit flexibility. Surface mount package facilitates efficient manufacturing and assembly. Strong current and voltage ratings support a broad range of applications.

Wide temperature and frequency specifications allow for versatile industrial use. Compliant with AEC-Q101 automotive standards for dependable operation. Compact dimensions enable high-density PCB layouts.

This transistor is ideally used in electronic devices requiring dual transistor functions with reliable operation under electrical and thermal stress. Common industrial applications include automotive electronics systems, manufacturing process controls, and communication equipment.
