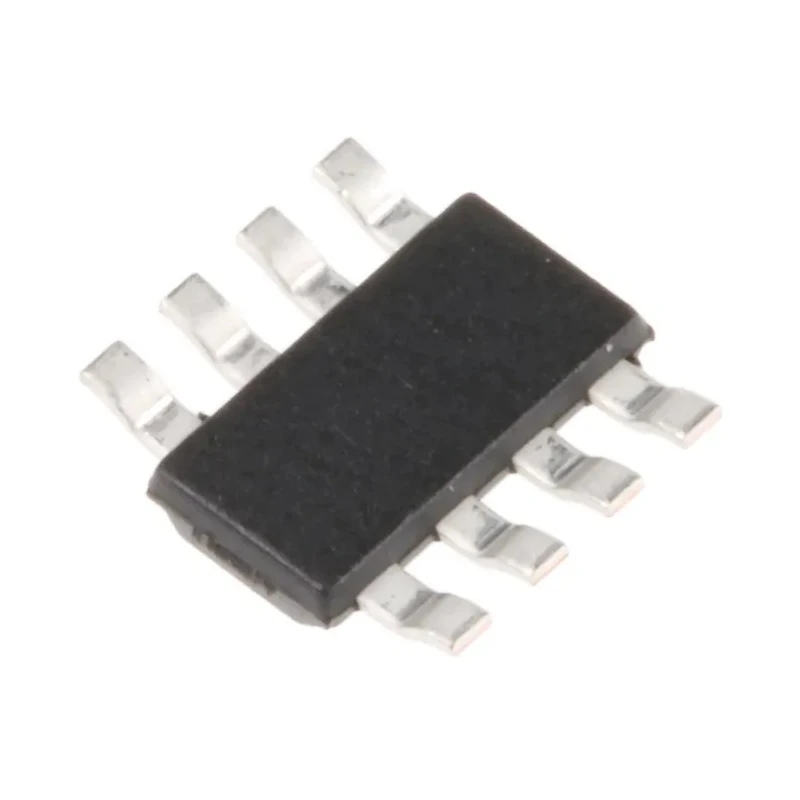

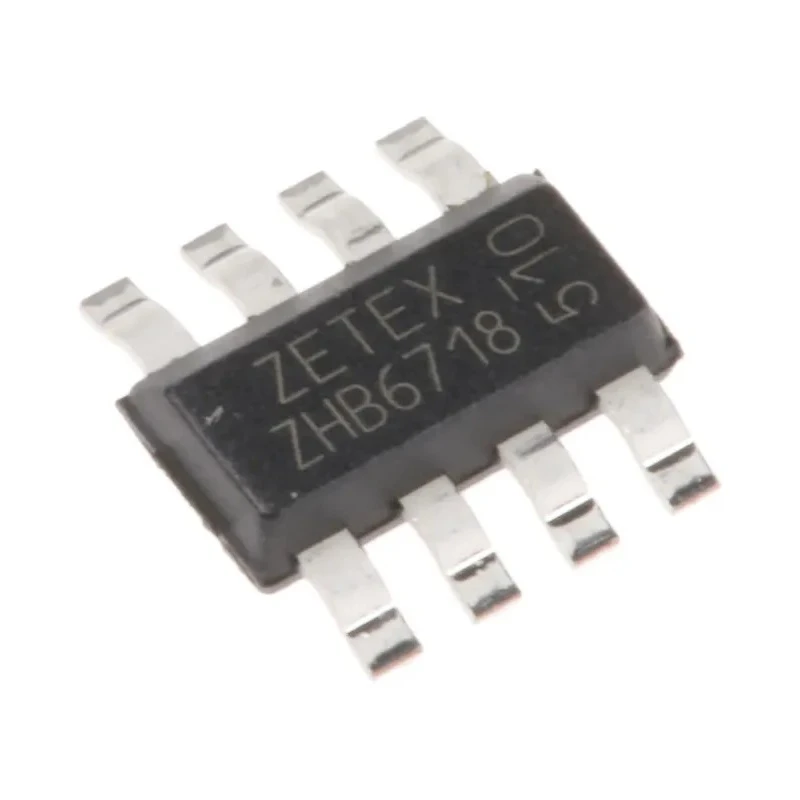

DiodesZetex 2.5 A NPN + PNP 20 V 8-Pin Surface Mount Quad Transistor H-Bridge ZHB6718TA

DiodesZetex ZHB6718TA quad transistor H-bridge is engineered for electronic applications requiring efficient and reliable switching. This device integrates both NPN and PNP transistors in a full bridge configuration, supporting a maximum DC collector current of 2.5 amperes and a collector emitter voltage rating of 20 volts. Its surface mount 8-pin package is designed for compact and automated PCB assembly processes.

The transistor exhibits a maximum operating temperature range from -55°C to 150°C, making it suitable for harsh industrial and automotive environments. With a power dissipation capacity of 2 watts and a maximum transition frequency of 140 MHz, it supports fast switching applications while maintaining thermal stability. The device complies with the stringent automotive standard AEC-Q101, endorsing its use in automotive electronics.

The physical dimensions, including a length of 6.7 mm, width of 7.3 mm, and height of 1.7 mm, provide a small footprint for space-constrained designs. This quad transistor H-bridge is commonly used in motor control circuits, power regulation, and signal amplification in industrial, automotive, and electronic equipment manufacturing.

This transistor supports a maximum DC collector current of 2.5 amperes. Operates with a maximum collector emitter voltage of 20 volts. Maximum power dissipation is 2 watts for thermal reliability. Full bridge transistor configuration enhances control versatility.

Operating temperature ranges from -55°C to 150°C for durability. Maximum transition frequency of 140 MHz for high-speed switching. 8-pin surface mount package facilitates compact PCB layout. Meets AEC-Q101 automotive standard for quality assurance.

Compact dimensions for integration on tight circuit boards. Manufactured in Germany ensuring high-quality production standards.

Renowned for its robustness and efficiency, the ZHB6718TA transistor from DiodesZetex is ideal for electronics, automotive systems, and other industrial applications where reliable H-bridge transistor configurations are essential. Explore our range of Bipolar Transistors and other semiconductor products on EnvMart for advanced electronic component solutions.
