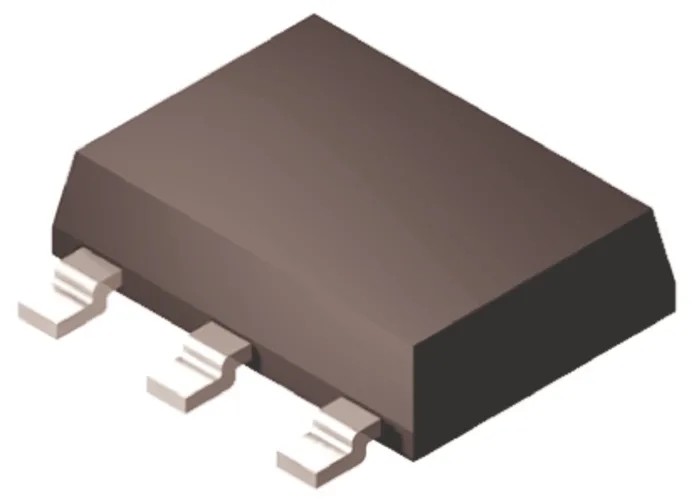

DiodesZetex General Purpose NPN Transistor 3 A 25 V 4-Pin SOT-223 FZT649TA

DiodesZetex FZT649TA is a general purpose NPN bipolar transistor engineered for switching and amplification applications requiring up to 3 A collector current and a collector-emitter voltage of 25 V. Packaged in a compact 4-pin SOT-223 surface-mount form factor, it is ideal for space-constrained circuit boards in industrial, automotive, and consumer electronics.

This transistor provides a minimum current gain (hFE) of 15 and a maximum transition frequency of 240 MHz, enabling efficient high-frequency operation. It handles a maximum power dissipation of 2 W and supports a broad operating temperature range from -55°C to 150°C, ensuring reliability in harsh environments.

Compliance with automotive standards AEC-Q100, AEC-Q101, and AEC-Q200 confirms its suitability for automotive electronics design. The transistor’s single NPN configuration and surface mount package make it versatile for general-purpose switching, amplification, and signal processing use cases in embedded systems, power management, and consumer devices.

Maximum DC collector current of 3 A ensures effective switching performance. Collector-emitter voltage rating of 25 V suitable for low to medium voltage applications. Compact 4-pin SOT-223 surface-mount package facilitates PCB space saving.

High maximum transition frequency of 240 MHz allows high-speed operation. Transistor configured as single NPN type with a minimum DC current gain of 15. Maximum power dissipation of 2 W supports robust thermal handling. Wide operating temperature range from -55°C to 150°C meets industrial requirements.

Automotive grade compliant with AEC-Q100, AEC-Q101, and AEC-Q200 standards.

This product is widely used in industrial electronics, automotive systems, power supply circuits, signal amplification, and switching applications. Its small package and automotive qualification make it particularly valuable for embedded electronic modules, industrial controllers, and automotive electronic control units (ECUs).
