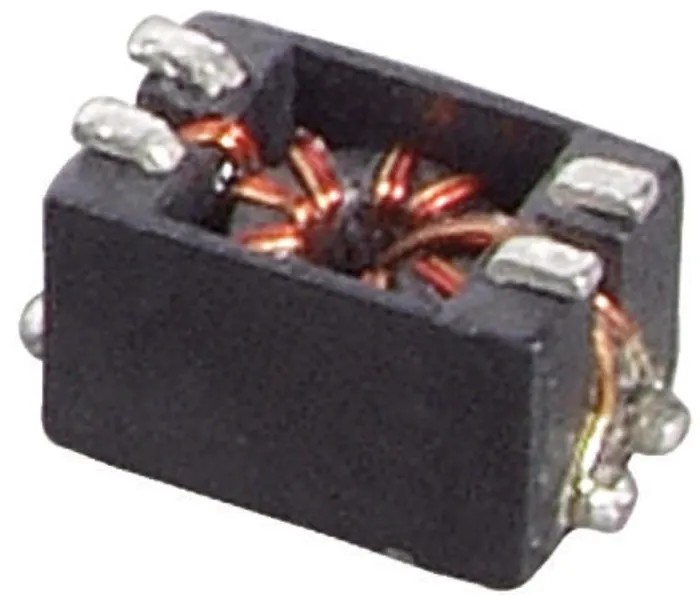

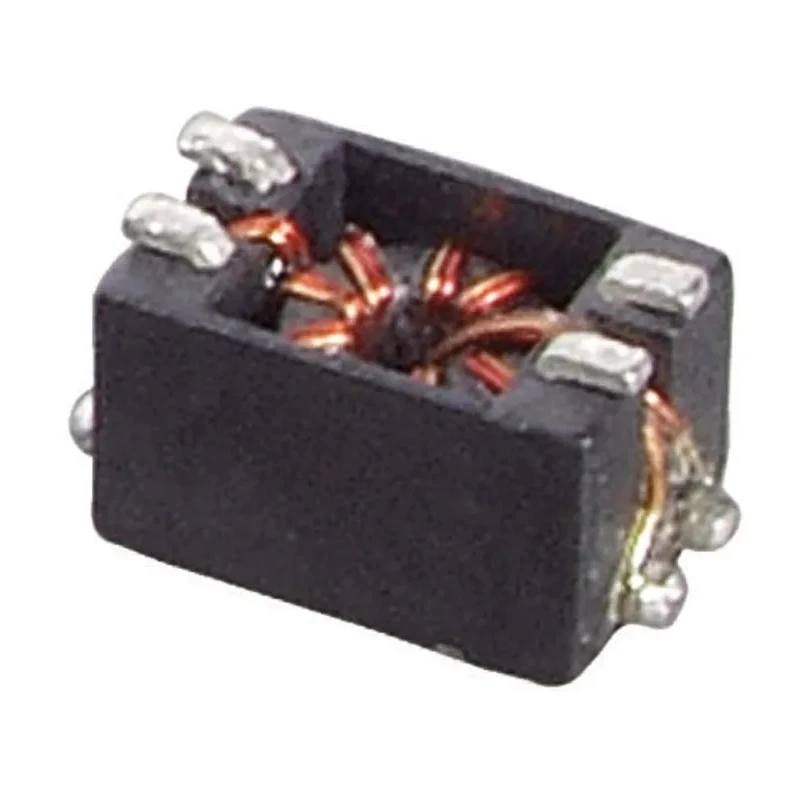

Wurth Elektronik WE-SLM Surface Mount Common Mode Line Filter with Ferrite Core 100 μH -30 to 50 % Tolerance 300 744242101

Name: Wurth Elektronik WE-SLM Surface Mount Common Mode Line Filter with Ferrite Core 100 μH -30 to 50 % Tolerance 300 744242101
Brand: Wurth Elektronik
SKU: 205686
Price: 4.3 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Operating Temperature	- 40°C to +125°C
Height	3.3mm
Length	6mm
Depth	3.3mm
Packaging	Tape & Reel
Series	WE-SLM
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	100μH
Standards/Approvals	UL 94 V0
Maximum DC Current	300mA
Pin Count	4
Maximum DC Resistance	580mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

High current capability up to 300 mA suitable for demanding applications.
Ferrite core ensures effective noise suppression and signal integrity.
Inductance tolerance ranges from -30 to 50 percent for precise performance.
Compact surface mount design with 6 mm length and 3.3 mm height and depth.
Wirewound construction provides stability and reliability.
Approved to automotive standard AEC-Q200 for robustness.
Maximum operating temperature of 125°C allows usage in harsh environments.
Packaging on tape and reel supports efficient automated assembly.

Product Description

Wurth Elektronik 744242101 Surface Mount Common Mode Line Filter is engineered with a ferrite core and provides 100 μH inductance with a tolerance of -30 to 50 percent. The component supports a maximum DC current of 300 mA and is designed for surface mount technology, measuring 6 mm in length and 3.3 mm in both height and depth. This wirewound inductor from the WE-SLM series is suitable for high-performance electronic applications requiring noise suppression.

Certified to the AEC-Q200 automotive standard and UL 94 V0 flammability rating, this line filter is capable of surviving demanding automotive and industrial environments. It operates effectively between -40°C to 125°C, ensuring reliable performance under wide temperature ranges. The inductor’s maximum self-resonant frequency is 100 kHz, suitable for filtering noise in various signal and power lines.

This device comes packaged on tape and reel, enabling streamlined integration into automated PCB assembly lines. Its core material, ferrite, contributes to excellent magnetic properties essential for common mode noise filtering applications.

Typical uses include USB, CAN, FireWire interfaces, sensor lines, signal lines, and power supply filtering. The Wurth WE-SLM common mode chokes help to maintain signal integrity and reduce electromagnetic interference in electronic circuits.

High current capacity ensures stable operation in noise-sensitive circuits. Compact size supports space-efficient PCB layouts. Wirewound construction assures high reliability and consistent inductance. Certification meets rigorous automotive and safety standards.

Broad operating temperature range for industrial and automotive use.

This Wurth Elektronik product is a reliable choice for engineers requiring efficient common mode noise suppression in surface mount applications. Explore more components in the Surface Mount Inductors category at EnvMart for varied electronic design needs.
