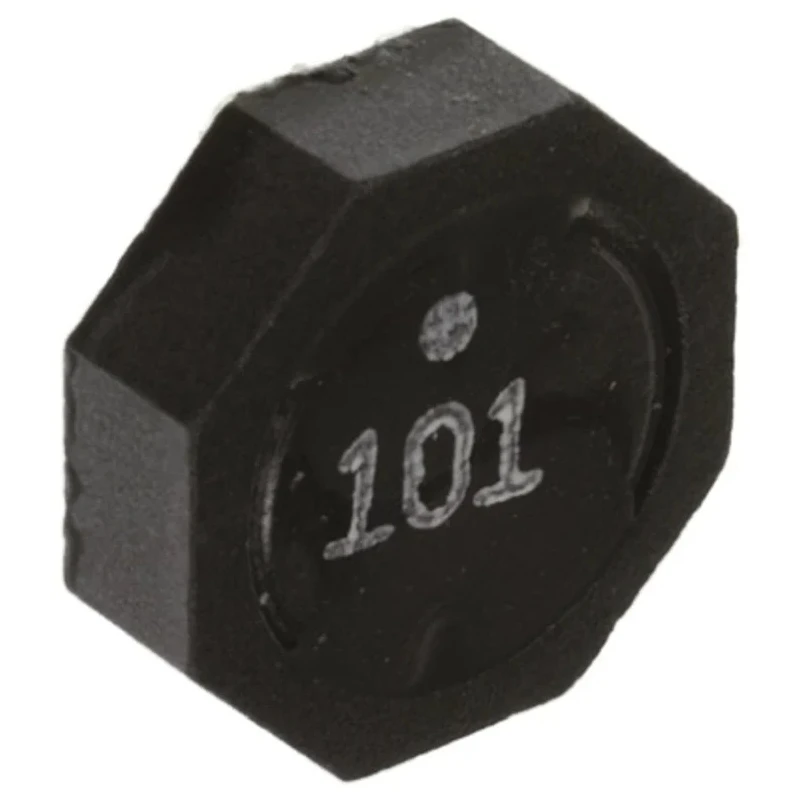

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 100μH ±30% 1A Idc 1028 Package 744065101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 2.8mm |
| Length | 10mm |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Package/Case | 1028 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 470mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 7MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/Approvals IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, RoHS |
Key Features
- This inductor features a ferrite core for stable magnetic properties.
- The 1028 package provides a compact 10mm length with 2.8mm height and 10mm depth.
- Designed with a wirewound inductive construction ensuring high current capability.
- It supports operating temperatures from -40°C to 125°C for diverse environments.
- Includes magnetic shielding to reduce leakage fields, enhancing circuit reliability.
- Complies with automotive standard AEC-Q200 and international standards IEC 60286-3, IPC/JEDEC J-STD-020E, and RoHS.
- Maximum DC resistance is 470mΩ, suitable for efficient power applications.
- Terminated for surface mount technology facilitating automated PCB assembly.
Product Description
Wurth Elektronik 744065101 is a shielded wirewound surface mount inductor with a ferrite core, offering 100μH inductance and ±30% tolerance. Its compact 1028 package measures 10mm in length, 2.8mm in height, and 10mm in depth, making it ideal for space-constrained applications requiring high reliability.
This inductor provides a maximum DC current of 1A and features a maximum DC resistance of 470mΩ, ensuring efficient energy transfer with minimal losses. The magnetically shielded design significantly reduces leakage fields, preventing interference with nearby components.
Designed for harsh environments, it operates across a wide temperature range from -40°C to +125°C and meets automotive grade AEC-Q200 standards, as well as several international standards including IEC 60286-3:2013, IPC/JEDEC J-STD-020E, JEDEC JS709B, REACH, and RoHS compliance.
Its wirewound construction provides stable inductance, and the surface mount termination style is optimized for modern automated PCB assembly processes. The inductor has a maximum self-resonant frequency of 7MHz, making it well-suited for use in DC/DC converters, embedded PCs, portable power devices such as PDAs and digital cameras, and telemetric data gathering systems.
This inductor utilizes a ferrite core to maintain magnetic stability and low loss during operation. The highly shielded construction minimizes electromagnetic interference in sensitive circuits. Compact 1028 package supports high current handling in a small footprint.
Complies with industry-leading quality and safety standards for robust application use. Wide operating temperature range enables deployment in diverse industrial and automotive applications. Low DC resistance enhances energy efficiency in power supply circuits.
Surface mount design facilitates efficient automated manufacturing. Maximum self-resonant frequency supports stable operation under high-frequency conditions.
Wurth Elektronik products like the 744065101 are trusted in sectors including electronics manufacturing, automotive engineering, telecommunications, and portable consumer electronics. Its design ensures long-term reliability and consistent performance under demanding conditions.
Explore more high-performance electronic components from Wurth Elektronik and similar brands in the Surface Mount Inductors category on EnvMart to aid your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100μH with a tolerance of ±30%.
The 1028 package measures 10mm in length, 2.8mm in height, and 10mm in depth.
It has a maximum DC current rating of 1A, allowing for efficient energy transfer in applications.
The maximum DC resistance is 470mΩ, which contributes to its efficiency in power applications.
This inductor operates effectively within a temperature range of -40°C to +125°C.
The maximum self-resonant frequency is 7MHz, making it suitable for high-frequency applications.
It features a wirewound construction, which provides stable inductance and high current capability.
Yes, it complies with the automotive standard AEC-Q200, ensuring its reliability in automotive applications.
The core material of this inductor is ferrite, which helps maintain stable magnetic properties.
It is packaged in tape and reel format, which is suitable for automated PCB assembly processes.
This inductor meets several international standards, including IEC 60286-3, IPC/JEDEC J-STD-020E, and RoHS compliance.
It is suitable for use in DC/DC converters, embedded PCs, portable power devices, and telemetric data gathering systems.
