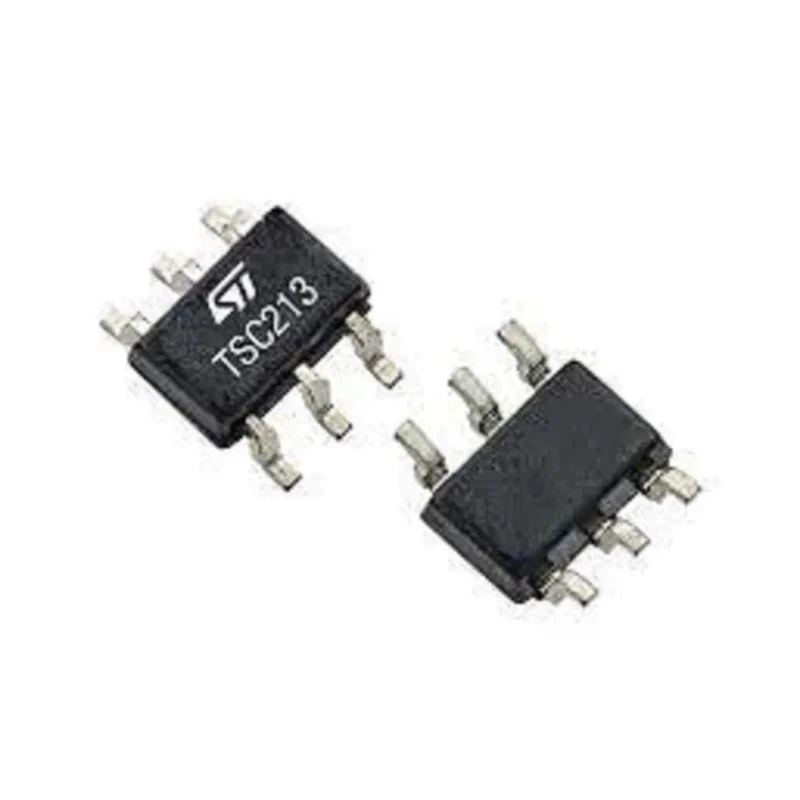

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC213IYCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | TSC213IYCT |
| Mount Type | Surface |
| Series | TSC213 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 100kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Wide supply voltage range from 2.7 V to 26 V suitable for various applications.
- High common mode rejection ratio of 105 dB ensures excellent signal fidelity.
- Low supply current of 5 mA supports efficient power consumption.
- Wide operating temperature range of -40°C to 125°C suitable for automotive standards.
- Compact surface mount SC-70-6 package measuring 2.2 mm by 1.1 mm for space-saving PCB design.
- Zero-drift architecture delivering high precision with low offset and gain drift.
- Automotive standard compliance with AEC-Q100 ensuring ruggedness and reliability.
- Typical gain bandwidth product of 100 kHz supporting fast signal processing.
Product Description
The STMicroelectronics TSC213IYCT current sensing amplifier is a high precision device engineered to accurately sense current through a shunt resistor, operating across a wide common mode voltage range from -0.3 to +26 V with supply voltages between 2.7 and 26 V. Packaged in a compact 6-pin SC-70-6 surface mount package measuring 2.2 mm in length and 1.1 mm in height, this amplifier provides a low quiescent current of 5 mA and features a zero-drift architecture that guarantees minimal offset drift of 0.1 μV/°C and gain drift of 20 ppm/°C.
This device is ideal for automotive, telecommunications, and industrial applications requiring precise current monitoring over broad operating temperature ranges from -40°C up to 125°C. It meets automotive standard AEC-Q100 ensuring dependability in demanding environments. The high common mode rejection ratio of 105 dB and gain bandwidth product of 100 kHz enable the accurate measurement of current signals under noisy conditions and rapid signal variations.
The device is surface-mounted for modern PCB applications, enabling space-efficient and reliable integration. The TSC213IYCT is designed for single channel current sensing, making it suitable for monitoring power supplies, battery management systems, motor controls, and other industrial measuring instruments.
Wide supply voltage range from 2.7 V to 26 V. High common mode rejection ratio of 105 dB. Low supply current consumption of 5 mA. Wide temperature range suitability, -40°C to 125°C. Compact SC-70-6 6-pin surface mount package.
Zero-drift architecture for high accuracy and stability. Certification to automotive standard AEC-Q100. Gain bandwidth product of 100 kHz.
Common applications include automotive current monitoring, telecom equipment, industrial control systems, and power management circuits. This device balances precision, efficiency, and ruggedness for demanding current sensing tasks in industrial and commercial electronics.
Explore EnvMart for a full range of Current Sensing Amplifiers and semiconductor components designed for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSC213IYCT operates with a supply voltage range from 2.7 V to 26 V.
This model features a high common mode rejection ratio of 105 dB, ensuring excellent signal fidelity.
The maximum operating temperature for this current sensing amplifier is 125°C.
This unit can operate at a minimum temperature of -40°C.
The typical gain bandwidth product for this amplifier is 100 kHz, supporting fast signal processing.
It has a low supply current consumption of 5 mA, which supports efficient power usage.
This model is packaged in a compact SC-70-6 surface mount package measuring 2.2 mm in length and 1.1 mm in height.
This device supports a single channel for current sensing applications.
It complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The height of this current sensing amplifier package is 1.1 mm.
This model is suitable for applications such as automotive current monitoring, telecommunications, and industrial control systems.
The length of the TSC213IYCT package is 2.2 mm.
