TDK B32024 Film Capacitor 680 nF 300V AC 300 V DC Through Hole Mount B32024A3684M000

Free Delivery in India | Lowest Global Shipping Charges

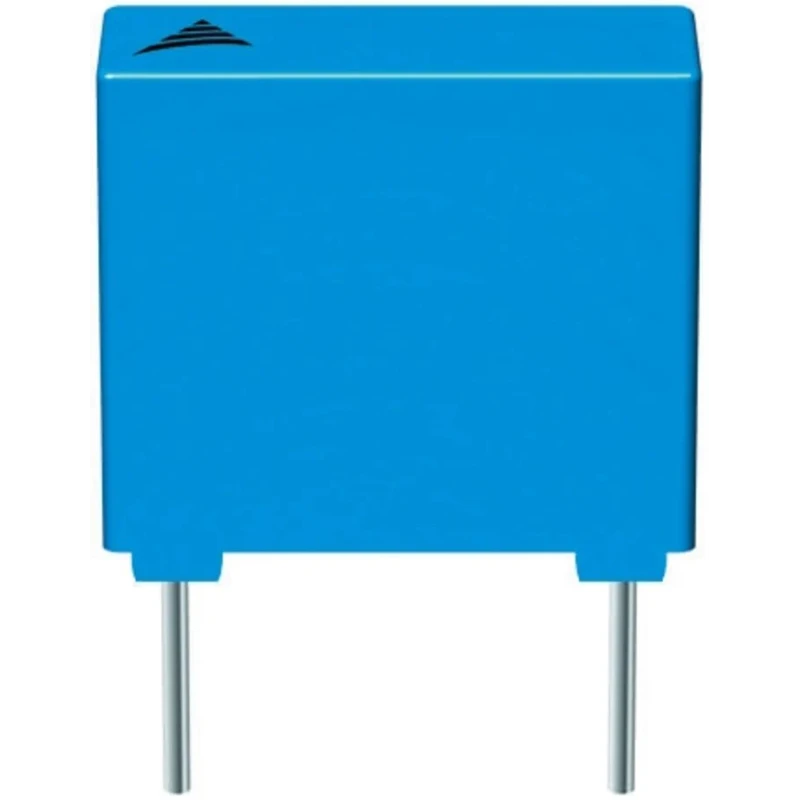

TDK B32024 Film Capacitor 680 nF 300V AC 300 V DC Through Hole Mount B32024A3684M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	30mm
Length	31.5mm
Model	B32024A3684M000
Width	19mm
Mount Type	Through Hole
Series	B32024
Maximum Operating Temperature	110°C
Capacitance	680nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

High-quality polypropylene construction ensures durability.
Rated for maximum operating temperature of 110°C.
Standard compliance with CSA and UL approvals.
Compact dimensions with 31.5mm length and 19mm width.
Suitable for AC voltages up to 300V and DC voltages up to 300V.
Y2 suppression class ideal for interference suppression and 'line to ground' applications.
Lead pitch of 27.5mm and pin count of 2 for easy integration.
Lead diameter measures 0.8mm ensuring secure connections.

Product Description

TDK B32024A3684M000 Film Capacitor is a high-performance electronic component designed for through hole mounting, featuring a capacitance of 680 nF and rated for 300V AC and 300 V DC operation. It is constructed with polypropylene, enclosed in a durable plastic case with UL 94 V-0 flame retardancy and sealed with epoxy resin complying with UL 94 V-0 standards. The capacitor exhibits compact dimensions of 31.5mm length, 19mm width, and 30mm height, allowing it to fit seamlessly into various electronic assemblies.

This capacitor is certified compliant with CSA and UL standards and designed to operate within a temperature range of -40°C to 110°C, making it suitable for demanding environments in industrial and commercial electronic applications. The Y2 suppression class characteristic enables effective interference suppression, making it ideal for 'line to ground' and interference suppression use cases.

With a lead pitch of 27.5mm and two pins each with a diameter of 0.8mm, it is compatible with common through hole mounting circuits. Its polypropylene material ensures excellent self-healing properties and high voltage capability for reliable long-term operation.

High-quality polypropylene construction ensures durability. Rated maximum operating temperature of 110°C. Compliant with CSA and UL standards. Compact design with dimensions 31.5mm (L) x 19mm (W) x 30mm (H). Rated for 300V AC and 300 V DC voltages.

Y2 suppression class for interference suppression applications. Lead pitch of 27.5mm and pin count of 2. Lead diameter of 0.8mm allows secure mounting. Operating temperature range from -40°C to 110°C.

Typical applications include industrial electronics, power supply filtering, interference suppression, and electronic assemblies requiring reliable Film Capacitor performance. This component is intended for use in circuits needing compact capacitors with excellent voltage tolerance and safety approvals.
