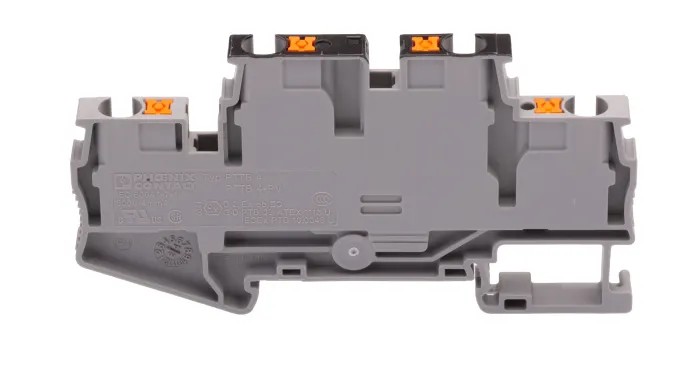

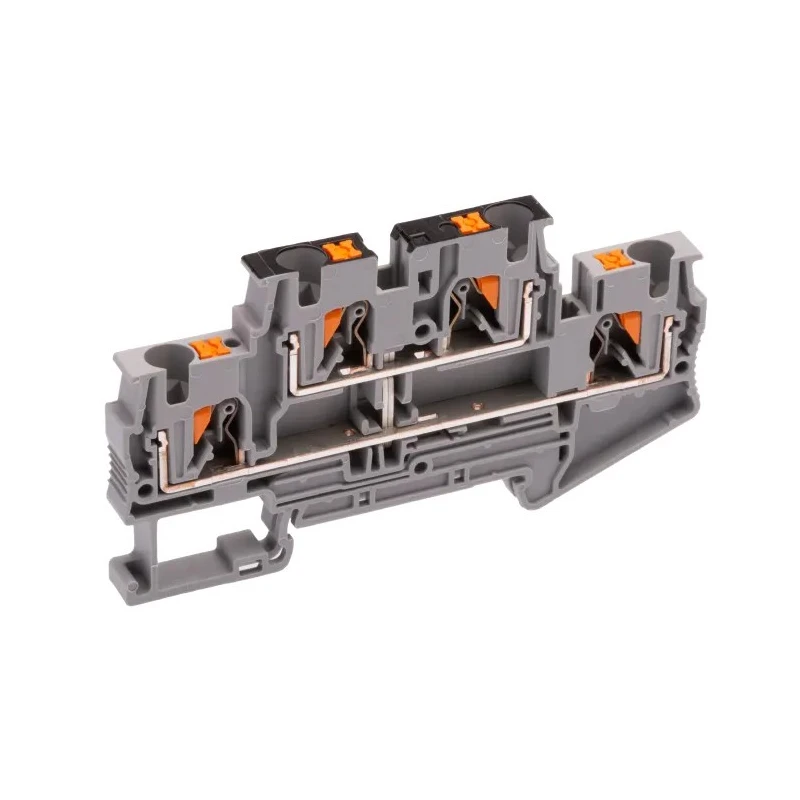

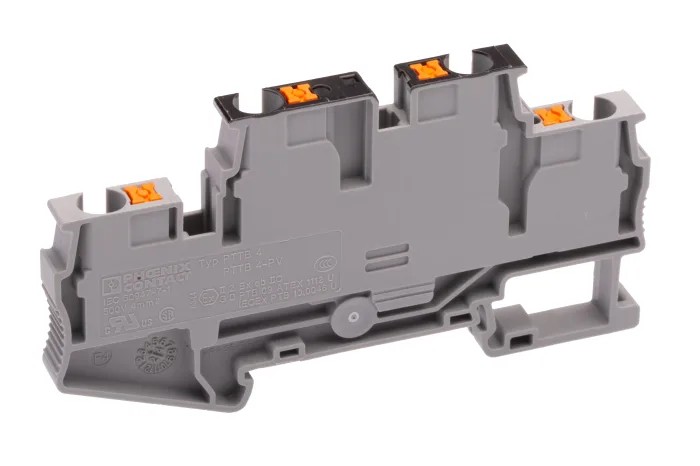

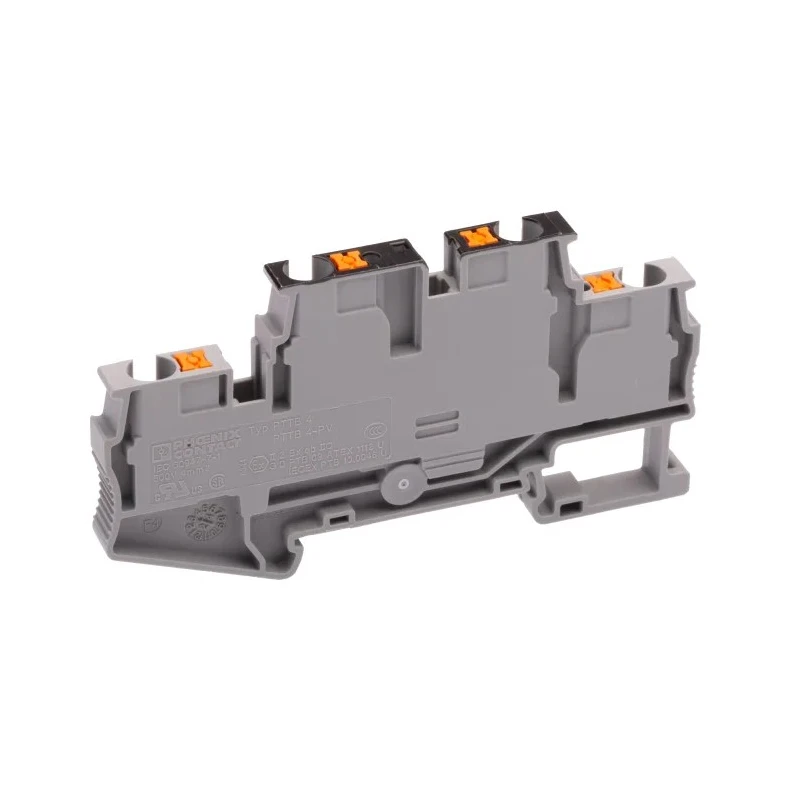

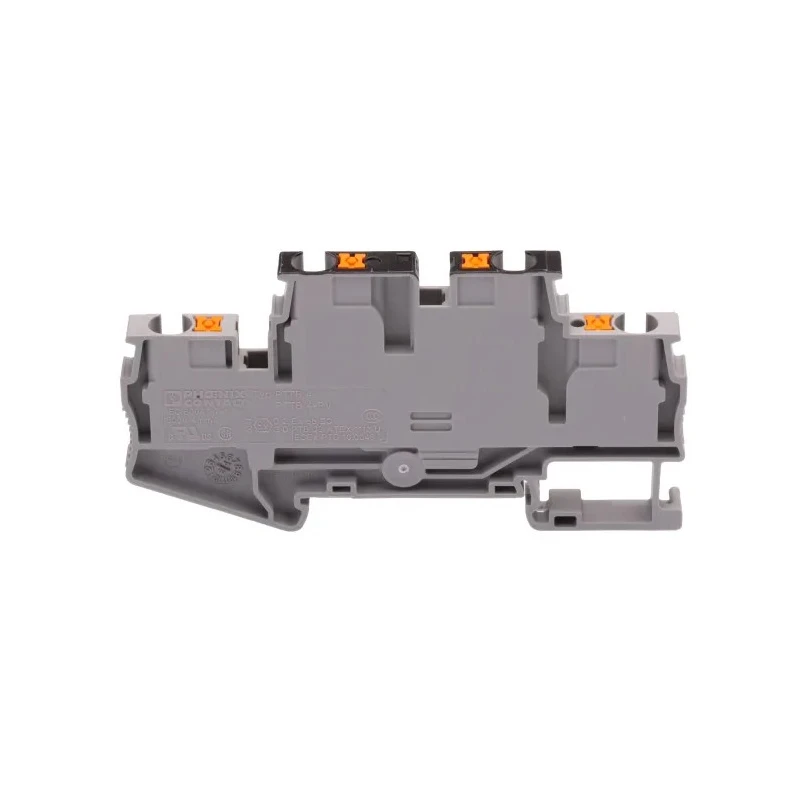

Phoenix Contact PTTB 4-PV Series Double Level Terminal Block Grey, 30A, 500V, Push-in, 2-Level, IECEx, ATEX 3211825

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PTTB 4-PV Series Double Level Terminal Block Grey, 30A, 500V, Push-in, 2-Level, IECEx, ATEX 3211825

Name: Phoenix Contact PTTB 4-PV Series Double Level Terminal Block Grey, 30A, 500V, Push-in, 2-Level, IECEx, ATEX 3211825
Brand: PHOENIX CONTACT
SKU: 217426
Price: 11.71 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Model	3211825
Series	PTTB 4-PV
Termination Type	Push-in
Maximum Operating Temperature	105°C
Number of Levels	2
Sub Type	Multi-Level
Minimum Operating Temperature	-60°C
Hazardous Area Certification	IECEx, ATEX
Standards/Approvals	GOST, IECEX, PTB, UL, cUL, CSA, IEC 60947-7-1
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	10AWG
Cable CSA	0.2, 6mm²
Terminal Block Current	30A

Key Features

Rated for 30A current and 500V voltage for demanding industrial applications.
Supports cable cross-sectional areas from 0.2 mm² to 6 mm² and wire sizes from 24 AWG to 10 AWG.
Double level, space-saving design suitable for optimized control panel layouts.
Push-in termination type ensures fast, tool-free wiring and robust contact.
Certified for hazardous areas with IECEx and ATEX approvals.
Operates reliably in temperatures ranging from -60°C to 105°C.
Complies with standards including GOST, IECEX, PTB, UL, cUL, CSA, and IEC 60947-7-1.

Product Description

Phoenix Contact 3211825 PTTB 4-PV Series Double Level Terminal Block Grey, rated at 30A and 500V, is an advanced wiring component designed for industrial and electrical engineering applications. This push-in terminal block provides secure and compact wiring with a two-level design for efficient use of panel space.

The terminal block supports cables with a cross-sectional area between 0.2 mm² and 6 mm², compatible with wire sizes from 24 AWG to 10 AWG, enabling versatile connectivity options. Its push-in termination technology allows for quick and reliable installation without the need for additional tools.

Engineered for use in harsh and potentially hazardous environments, this terminal block holds IECEx and ATEX hazardous area certifications ensuring safety and compliance. It is suitable for applications in industrial automation, manufacturing control panels, and electrical systems requiring durable and safe connections.

The robust design tolerates a wide operating temperature range from -60°C to 105°C, making it dependable in extreme conditions. It meets rigorous international standards such as GOST, IECEX, PTB, UL, cUL, CSA, and IEC 60947-7-1.

30A current rating and 500V voltage compatibility for industrial use. Support for cable cross-sectional areas 0.2 mm² to 6 mm². Double level and space-saving design suited for optimized control panel layout. Tool-free, push-in termination for fast installation and secure contact.

IECEx and ATEX certified for hazardous area applications. Wide operating temperature range from -60°C to 105°C ensures reliability. Compliant with multiple international safety and performance standards.

This terminal block is ideal for wiring needs in industrial automation systems, electrical panels, machinery control panels, and any environment requiring certified, durable, and compact terminal blocks.

Explore the wider range of DIN Rail Terminal Blocks at EnvMart for quality industrial and electrical connection solutions.
