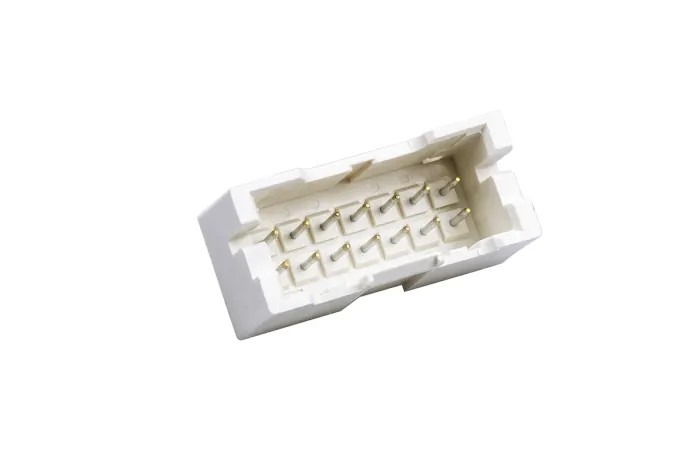

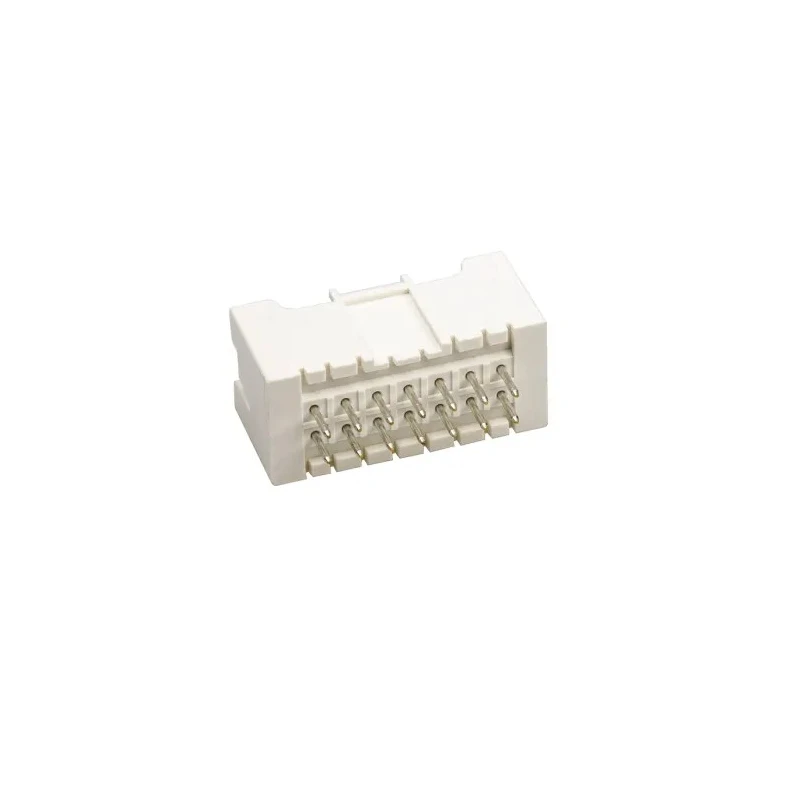

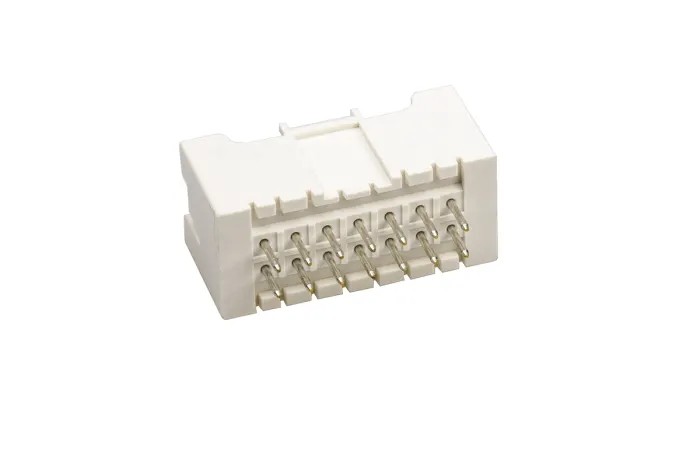

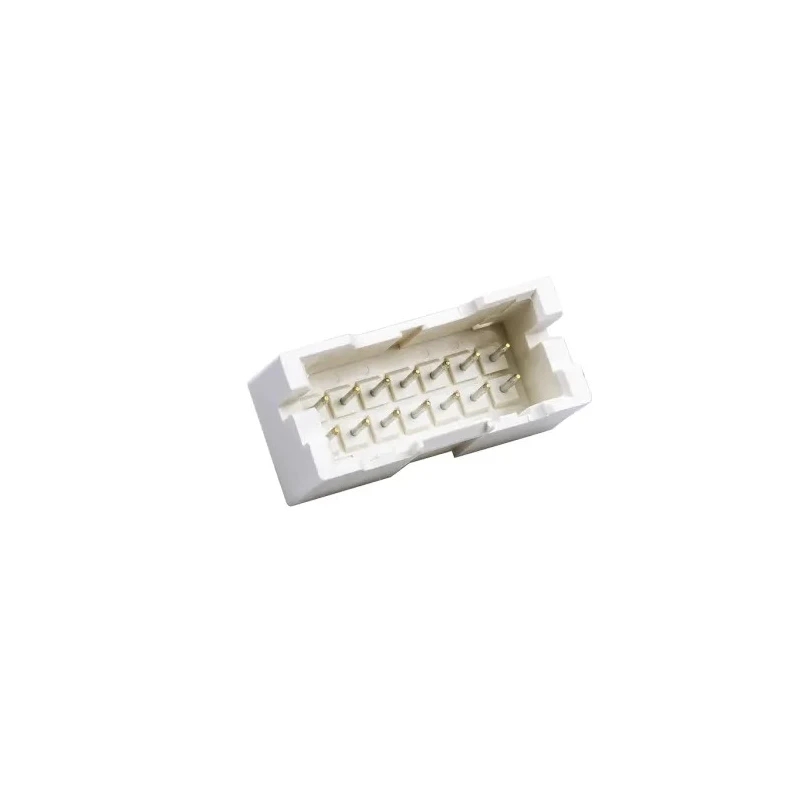

JST XAD Series Straight Through Hole PCB Header 14 Contacts 2.5mm Pitch 2 Row Shrouded B14B-XADSS-N(LF)(SN)

The JST B14B-XADSS-N(LF)(SN) is a high-quality PCB header from the XAD Series designed for reliable wire-to-board electrical connections in industrial and electronic applications. It features a 2.5 mm pitch with 14 male contacts arranged in 2 rows and has a straight orientation with a shrouded housing for enhanced protection against mis-insertion. The housing material is a glass-filled polyamide (PA66) wafer which is naturally white, providing durability and mechanical stability.

This connector supports a maximum voltage of 250 V and a current rating of 3 A, making it suitable for a variety of low power electronic circuits and control systems. The use of copper alloy contacts plated with tin ensures consistent electrical conductivity and corrosion resistance. The termination type is solder, compatible with standard PCB assembly processes.

Operating temperature range of -25°C to 85°C allows the header to function reliably in diverse environmental conditions, ideal for industrial, manufacturing, electronics assembly, and prototyping uses. The secure locking design with ribbed housings prevents accidental disconnections and mis-insertion.

This PCB header is precision-made in Japan, adhering to strict manufacturing quality standards, ensuring long-term reliability on critical boards. It is commonly used in PCB manufacturing, electrical assemblies, and equipment requiring secure board connections.

Features 14 male contacts for enhanced connectivity. 2.5 mm pitch allows for compact and precise mounting. Constructed with polyamide housing for durability and resistance. Through hole mount type ensures secure PCB attachment.

Contact plating with tin over copper alloy material enhances conductivity. Shrouded design prevents mis-insertion and protects contacts. Temperature range from -25°C to 85°C suitable for varied environments. Rated voltage of 250 V and current of 3 A for stable electrical performance.

Termination type is solder for strong and lasting connections. Manufactured origin: Japan.

This product is essential for engineers and technicians working on electronic device assembly, PCB design, and production testing. Explore more PCB Headers from JST and related accessories on EnvMart to complete your connector requirements.
