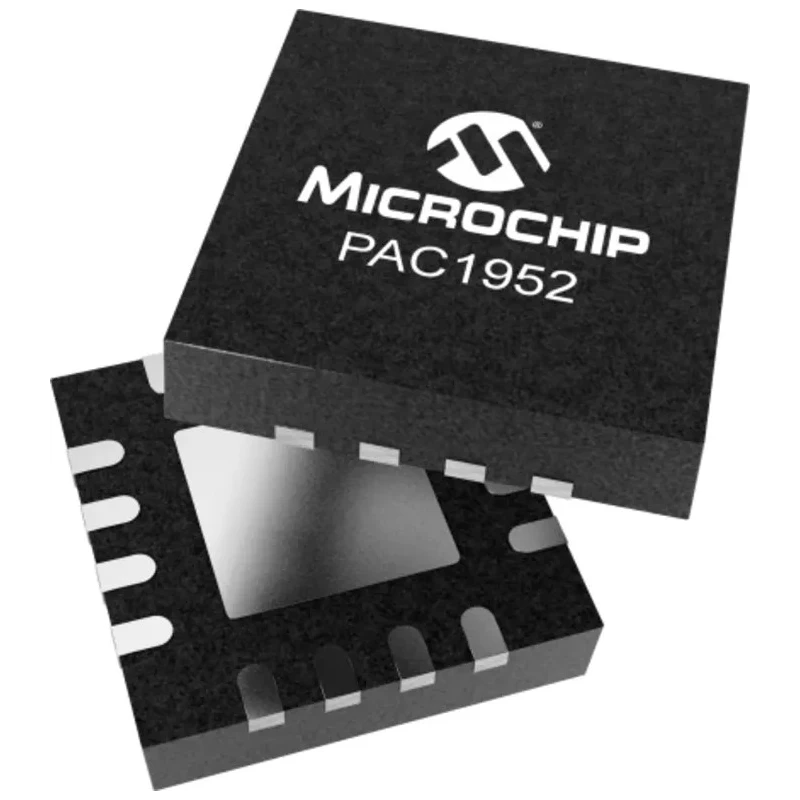

Microchip Current Monitor 16-Pin VQFN PAC1952T-2E/4MX 2.7V-5.5V 16-bit Resolution
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16-bit |
| Brand | Microchip |
| Length | 3mm |
| Model | PAC1952T-2E/4MX |
| Mount Type | Surface |
| Series | PAC1952 |
| Maximum Operating Temperature | 150°C |
| Package Type | VQFN |
| Minimum Operating Temperature | -40°C |
| Quiescent Current | 5μA |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features a 16-bit resolution for accurate voltage and current measurement.
- Operates with supply voltages ranging from 2.7V to 5.5V.
- Includes a quiescent current of only 5μA for low power consumption.
- Supports surface mount technology with a compact 3mm length VQFN package.
- Equipped with real-time calibration to minimize offset errors.
- Offers 100mV full-scale current sense voltage range with external sense resistor configuration.
- Includes digital comparators for over/under voltage, current, and power detection with ALERT signaling.
- Supports integration periods up to one year for energy accumulation.
Product Description
Microchip PAC1952T-2E/4MX Current Monitor is a sophisticated 16-pin device housed in a VQFN package, offering high-precision current sensing and energy monitoring capabilities. It operates over a voltage supply range of 2.7V to 5.5V, suitable for embedded computing and networking applications.
This device features a 16-bit resolution ADC for both voltage and current measurements, enabling 1% power measurement accuracy over a wide dynamic range. It allows integration periods up to one year, providing robust energy accumulation for power monitoring systems.
The PAC1952T-2E/4MX includes digital comparators that detect over and under voltage, current, and power thresholds on four independent channels, generating ALERT signals when programmed limits are exceeded. It supports surface mount applications with a compact 3mm length VQFN package and utilizes real-time calibration to reduce offset error, eliminating the need for input filters.
Its external sense resistor sets the full-scale current range with a 100mV full-scale voltage, and it supports high-speed SPI interface communication at 3.4 Mbps. The device is designed to function within operating temperatures ranging from -40°C to 150°C, making it suitable for industrial, server, cloud computing, and AI/GPU hardware systems.
Features a 16-bit resolution for accurate voltage and current measurement. Operates with supply voltages ranging from 2.7V to 5.5V. Includes a quiescent current of only 5μA for low power consumption. Supports surface mount technology with a compact 3mm length VQFN package.
Equipped with real-time calibration to minimize offset errors. Offers 100mV full-scale current sense voltage range with external sense resistor configuration. Includes digital comparators for over/under voltage, current, and power detection with ALERT signaling.
Supports integration periods up to one year for energy accumulation. Operates in temperatures from -40°C to 150°C for industrial applications.
This sensor IC is ideal for industrial machines, embedded computing platforms, networking hardware, cloud servers, and optical networking modules requiring precise current and power monitoring functions.
Explore more Microchip semiconductor current sensors and industrial electronics products at EnvMart.
Explore more products in our Current Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 16-bit resolution for accurate voltage and current measurement.
It operates with supply voltages ranging from 2.7V to 5.5V.
The quiescent current is only 5μA, contributing to low power consumption.
This device can operate at temperatures up to 150°C.
It is housed in a compact 16-pin VQFN package, suitable for surface mount technology.
The length of this model is 3mm.
It supports integration periods of up to one year for energy accumulation.
The minimum operating temperature is -40°C.
It supports high-speed SPI interface communication at 3.4 Mbps.
It features a 100mV full-scale current sense voltage range with an external sense resistor configuration.
