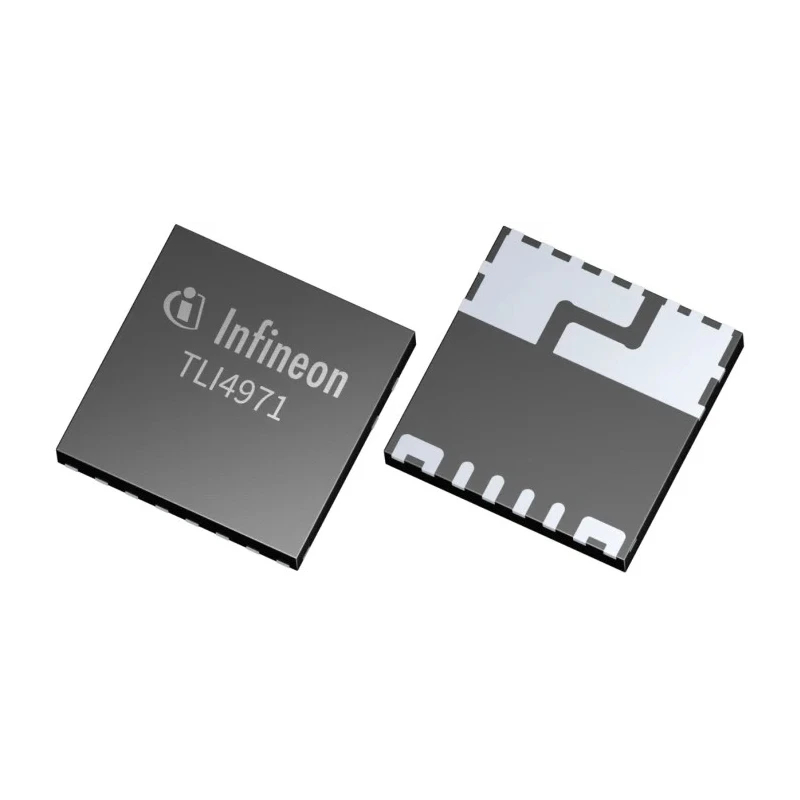

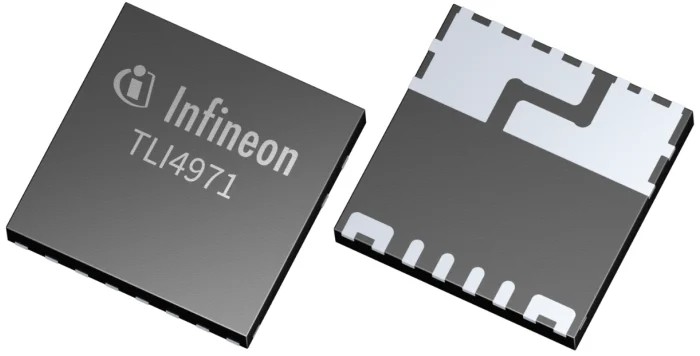

Infineon Current Sensor 8-Pin Surface Mount, PG-TISON-8 Package, 25A Range, 240kHz Bandwidth TLI4971A025T5E0001XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 8mm |
| Model | TLI4971A025T5E0001XUMA1 |
| Mount Type | Surface |
| Bandwidth | 240kHz |
| Series | TLI4971 |
| Maximum Operating Temperature | 130°C |
| Package Type | PG-TISON-8 |
| Minimum Operating Temperature | -40°C |
| Quiescent Current | 18mA |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | -0.3V |
Key Features
- Coreless magnetic sensor technology enables accurate AC and DC current measurement.
- Pre-programmed for 25A full scale range measurement.
- Robust hall effect sensor ensures low sensitivity error over temperature.
- Operating bandwidth up to 240kHz for high frequency performance.
- Low quiescent current of 18mA for efficient power consumption.
- Compact PG-TISON-8 package with an 8-pin configuration.
- Suitable for automotive applications with AEC-Q100 standard compliance.
- Wide operating temperature range from -40°C to 130°C.
Product Description
Infineon TLI4971A025T5E0001XUMA1 is a high-precision coreless magnetic current sensor designed for industrial, automotive, and electronic applications requiring accurate measurement of AC and DC currents up to ±25A full scale range. This sensor utilizes hall effect technology to deliver robust linearity and excellent magnetic stray field suppression, ensuring reliable current sensing performance over a wide temperature range from -40°C to 130°C.
This device comes in a compact PG-TISON-8 package with 8 pins configured for surface mounting, allowing seamless integration into printed circuit boards. It features a fast over-current detection output and a low quiescent current draw of 18mA, optimizing power usage in battery-powered and energy-conscious systems.
The TLI4971A sensor supports an operating bandwidth of up to 240kHz, making it suitable for applications involving rapidly changing currents, such as motor control, power supply monitoring, and automotive electronic control units.
Certified to meet the automotive AEC-Q100 standard, this sensor ensures robust quality and reliability in harsh environments. Its supply voltage range from -0.3V to 3.6V accommodates various system power configurations.
Typical use cases include current measurement in industrial motor drives, HVAC systems, battery management systems, power converters, and other manufacturing automation equipment. The device offers excellent temperature stability and magnetic immunity, enhancing performance in demanding industrial environments.
Coreless magnetic sensor technology enables accurate AC and DC current measurement. Pre-programmed for 25A full scale range measurement. Robust hall effect sensor ensures low sensitivity error over temperature. Operating bandwidth up to 240kHz for high frequency performance.
Low quiescent current of 18mA for efficient power consumption. Compact PG-TISON-8 package with an 8-pin configuration. Suitable for automotive applications with AEC-Q100 standard compliance. Wide operating temperature range from -40°C to 130°C.
Surface mount type for easy PCB integration. Explore more Infineon semiconductor sensors and current sensing solutions with EnvMart to enhance your electronic system designs.
Explore more products in our Current Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLI4971A025T5E0001XUMA1 has a full scale range measurement of ±25A.
This current sensor supports an operating bandwidth of up to 240kHz, suitable for high-frequency applications.
The supply voltage range for this model is from -0.3V to 3.6V.
It has a low quiescent current of 18mA, optimizing power consumption in applications.
The package dimensions are 8mm in length and 1.1mm in height.
This model operates within a temperature range of -40°C to 130°C.
Yes, it is compliant with the AEC-Q100 standard, making it suitable for automotive applications.
The TLI4971A025T5E0001XUMA1 is a surface mount type, designed for easy integration into PCBs.
It complies with RoHS standards, ensuring it meets environmental regulations.
Typical use cases include current measurement in industrial motor drives, HVAC systems, and battery management systems.
The PG-TISON-8 package features 8 pins.
It utilizes coreless magnetic sensor technology, which enables accurate measurement of AC and DC currents.
