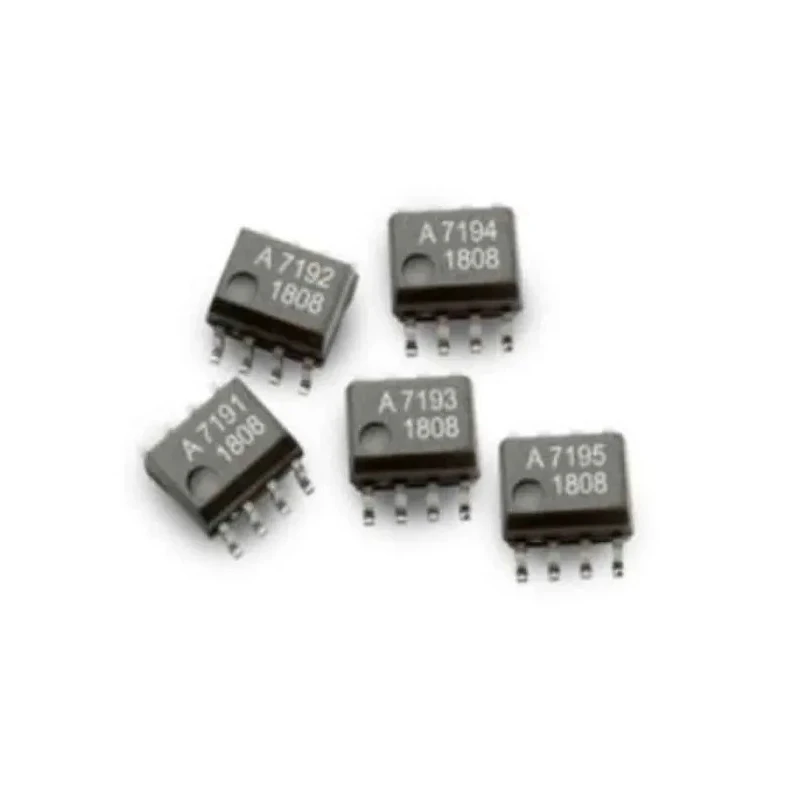

Broadcom Current Sensor 8-Pin SO Package 5.08mm Length 1.9mm Height 80kHz Bandwidth AEC-Q100 ACHS-7193-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Current Sensor 8-Pin SO Package 5.08mm Length 1.9mm Height 80kHz Bandwidth AEC-Q100 ACHS-7193-000E

Name: Broadcom Current Sensor 8-Pin SO Package 5.08mm Length 1.9mm Height 80kHz Bandwidth AEC-Q100 ACHS-7193-000E
Brand: Broadcom
SKU: 410576
Price: 3.15 USD
Availability: InStock



Category Current Sensor ICs Brand Broadcom Condition New

Specifications

Country of Origin	Philippines
Brand	Broadcom
Height	1.9mm
Length	5.08mm
Model	ACHS-7193-000E
Mount Type	Surface
Bandwidth	80kHz
Series	ACHS-719x
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	500mV
Minimum Supply Voltage	-0.5V

Key Features

Features a bandwidth of 80kHz for accurate current measurements.
Compact 5.08mm length and 1.9mm height package for versatile PCB mounting.
Automotive-grade sensor meeting AEC-Q100 standard for reliability.
Operates within temperature range of -40°C to 110°C for industrial use.
Supports supply voltages from -0.5V up to 500mV ensuring flexible integration.
Offers ratiometric output with near-zero magnetic hysteresis for stable readings.
Compliant with RoHS environmental standards for safe use.
Fully integrated Hall-effect based isolated linear current sensing technology.

Product Description

Broadcom ACHS-7193-000E is an advanced 8-pin surface-mount current sensor IC in an SO package, designed to accurately measure AC and DC currents through Hall-effect technology. With a compact 5.08mm length and 1.9mm height, this sensor fits easily onto printed circuit boards, facilitating efficient system integration.

This device supports a bandwidth of 80kHz, delivering precise current measurements suitable for demanding industrial, commercial, and communication system applications. It meets the automotive industry standard AEC-Q100, guaranteeing high reliability and stability under harsh operating conditions.

The sensor operates reliably across a wide temperature range from -40°C to 110°C, making it suitable for varied environments including automotive, manufacturing, and HVAC systems. It supports supply voltages from -0.5V up to 500mV and provides a ratiometric output that scales with the supply voltage.

Notable for its near-zero magnetic hysteresis and extremely stable output offset voltage, the ACHS-7193-000E ensures consistent performance over time. It is compliant with RoHS directives, emphasizing environmentally safe manufacturing.

Bandwidth of 80kHz enables rapid and accurate current sensing. Compact dimensions allow for flexible PCB layout design. Certified to AEC-Q100 automotive standards for enhanced durability. Wide operating temperature range supports diverse industrial applications.

Supports both AC and DC current measurement with isolated sensing. Provides ratiometric output for easy system calibration. RoHS compliant, conforming to environmental safety standards. Highly stable output with minimal magnetic hysteresis ensures measurement accuracy.

This product is ideal for use in industrial automation, automotive electronics, manufacturing equipment, HVAC systems, and communication devices requiring precise current monitoring.
