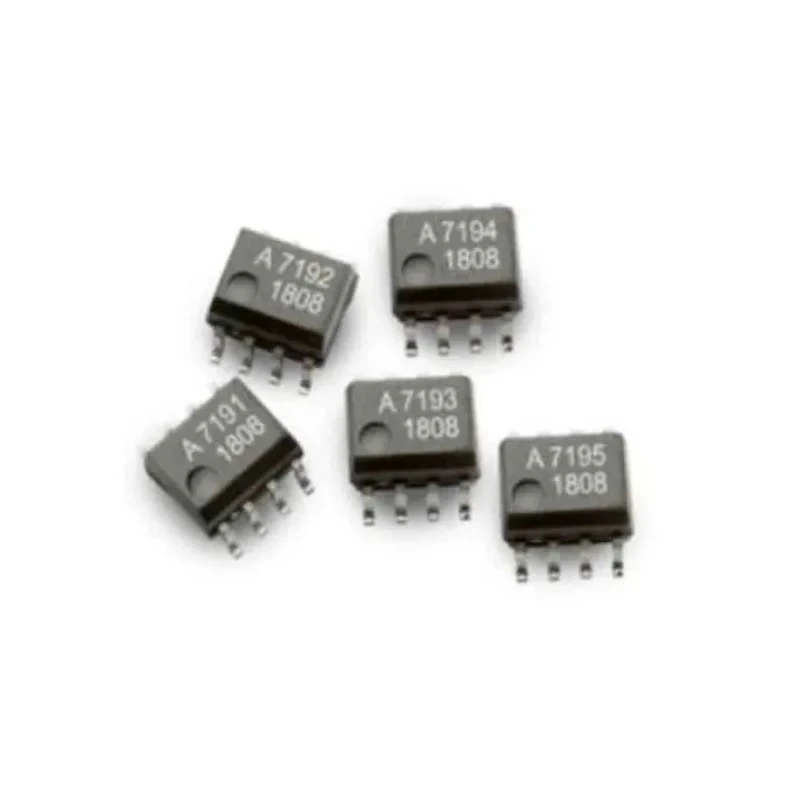

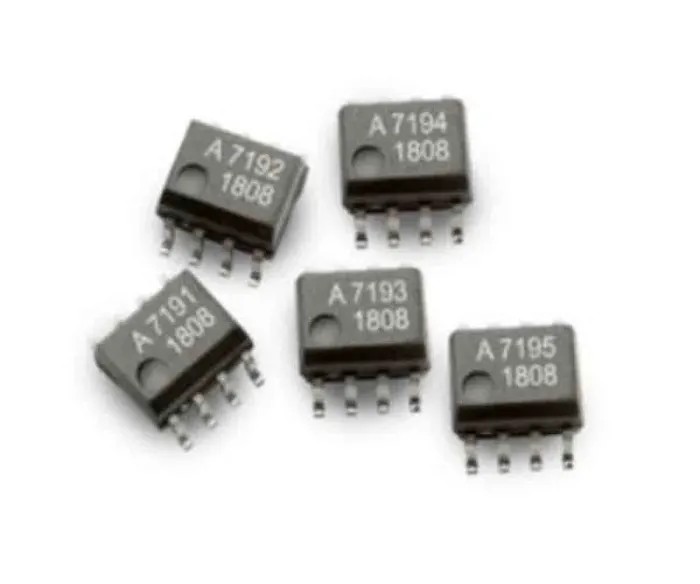

Broadcom Current Sensor 8-Pin SO Package Hall-Effect Isolated Linear 80kHz Bandwidth AEC-Q100 ACHS-7191-000E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Height | 1.9mm |
| Length | 5.08mm |
| Model | ACHS-7191-000E |
| Mount Type | Surface |
| Bandwidth | 80kHz |
| Series | ACHS-719x |
| Maximum Operating Temperature | 110°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 500mV |
| Minimum Supply Voltage | -0.5V |
Key Features
- Operates over a temperature range of -40°C to 110°C.
- Offers a minimum supply voltage of -0.5V and a maximum supply voltage of 500mV.
- Compact form factor with dimensions of 5.08mm length and 1.9mm height.
- Meets automotive standard AEC-Q100 ensuring reliability in automotive environments.
- Complies with RoHS standards for environmental safety.
- Designed for AC and DC current sensing with ratiometric output from supply voltage.
- Low magnetic hysteresis ensures stable output offset voltage.
- Ideal for industrial, commercial, and communications systems requiring precise current measurements.
Product Description
Broadcom ACHS-7191-000E is a highly integrated Hall-effect based isolated linear current sensor designed for both AC and DC current sensing applications. Packaged in an 8-pin small outline (SO) form factor, this sensor provides precise and stable current measurement with a bandwidth of 80kHz. It features ratiometric output consistent with supply voltage, ensuring high accuracy in various industrial, commercial, and communications environments.
The sensor supports a wide operating temperature range from -40°C up to 110°C, making it suitable for harsh automotive and industrial conditions. It meets the AEC-Q100 automotive standard, highlighting its reliability and durability in stringent applications. The device also complies with RoHS directives, assuring environmentally friendly manufacturing and usage.
Constructed to function with a minimum supply voltage of -0.5V and a maximum supply voltage rating of 500mV, the ACHS-7191-000E offers flexibility in power system design. The compact package dimensions (5.08mm length and 1.9mm height) allow for easy integration into densely packed electronic assemblies.
The sensor exhibits near-zero magnetic hysteresis, delivering extremely stable output offset voltage for accurate current monitoring. This makes it an excellent choice for applications such as automotive battery management, motor control, power converters, and communication equipment.
Broadcom's ACHS series current sensors are engineered to provide isolated, linear measurement capabilities improving safety and performance in electrical systems. The ACHS-7191-000E model blends precision sensing with robust design credentials to meet demanding monitoring requirements.
Operates over a temperature range of -40°C to 110°C. Provides ratiometric output from supply voltage for accuracy. Compact 8-pin SO package with 5.08mm length and 1.9mm height. Meets AEC-Q100 automotive reliability standard.
RoHS compliant ensuring environmental safety. Near-zero magnetic hysteresis for stable offset voltage output. Suitable for industrial, automotive, and communication applications requiring isolated current sensing. Explore additional Broadcom sensor ICs and related semiconductor products at EnvMart for your electronic design needs.
Explore more products in our Current Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a temperature range of -40°C to 110°C, making it suitable for harsh environments.
The maximum supply voltage for the ACHS-7191-000E is 500mV.
It features a bandwidth of 80kHz, allowing for precise current measurement.
The ACHS-7191-000E has 8 pins, packaged in a small outline (SO) format.
It meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
Yes, this current sensor complies with RoHS standards for environmental safety.
The sensor has a height of 1.9mm and a length of 5.08mm, making it compact for integration.
It is designed for both AC and DC current sensing applications with a ratiometric output.
The minimum supply voltage for this current sensor is -0.5V.
This model is designed for surface mounting, facilitating easy integration into electronic assemblies.
It is suitable for industrial, automotive, and communication applications requiring precise current measurements.
Near-zero magnetic hysteresis ensures stable output offset voltage, enhancing the accuracy of current monitoring.
