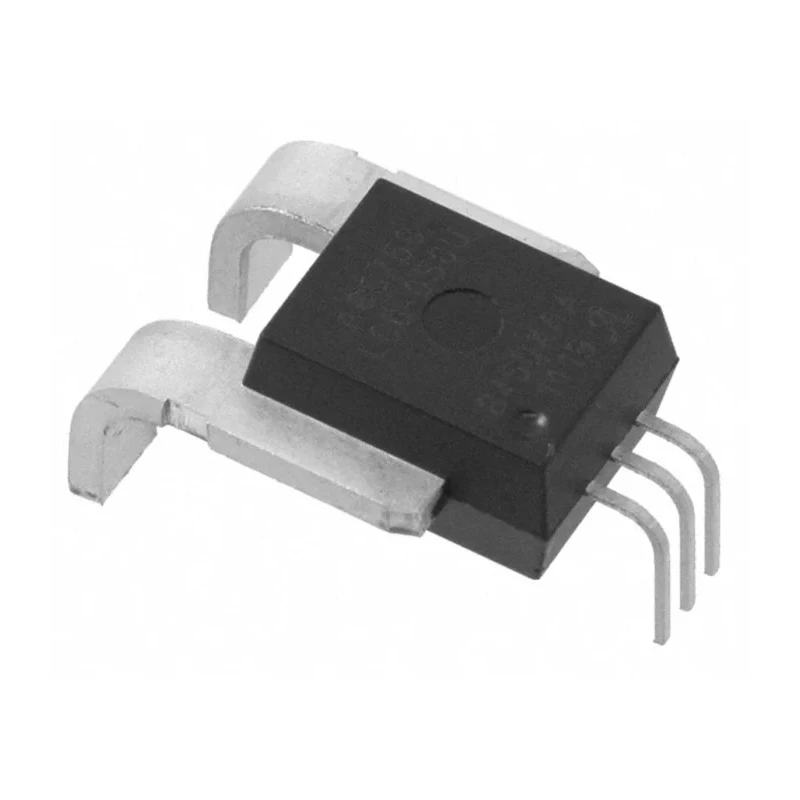

Allegro Microsystems Current Sensor 5-Pin Through Hole 4.5V-5.5V Operating Voltage ±6 mV Offset Voltage ACS770LCB-050U-PFF-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Height | 7mm |
| Length | 14mm |
| Model | ACS770LCB-050U-PFF-T |
| Mount Type | Through Hole |
| Bandwidth | 120kHz |
| Series | ACS770 |
| Maximum Operating Temperature | 150°C |
| Package Type | PFF |
| Minimum Operating Temperature | -40°C |
| Offset Voltage | ±6 mV |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
Key Features
- The sensor features a ±6 mV offset voltage for precise current measurements.
- Offers a bandwidth of 120kHz suitable for various electronic applications.
- Equipped with a 5-pin PFF package and through hole mount for reliable installation.
- Operates effectively within temperatures from -40°C to 150°C.
- Designed to meet automotive standards AEC-Q100 and RoHS compliance for quality assurance.
- Supports supply voltages from 4.5V minimum to 5.5V maximum ensuring flexible deployment.
Product Description
Allegro Microsystems ACS770LCB-050U-PFF-T is a high-performance current sensor IC designed for precise current measurement in automotive, industrial, and electronics applications. It features a 5-pin PFF package with through hole mounting, enabling easy integration on circuit boards.
This sensor operates with a supply voltage range of 4.5V to 5.5V and provides an offset voltage of ±6 mV for accurate sensing. Its bandwidth of 120kHz supports dynamic current monitoring in high-frequency environments.
Designed to withstand operating temperatures from -40°C up to 150°C, it is suitable for harsh operating conditions often encountered in automotive and industrial sectors. The device carries the AEC-Q100 automotive standard certification and complies with RoHS directives, ensuring quality and environmentally friendly manufacturing.
The sensor's physical dimensions are 7mm in height and 14mm in length, facilitating installation in tight spaces within electronic assemblies. The ±6 mV offset voltage ensures minimal measurement error. 120kHz bandwidth enables real-time current monitoring.
5-pin PFF package supports robust through hole mounting. Wide operational temperature range from -40°C to 150°C accommodates diverse environments. Compliance with automotive standard AEC-Q100 guarantees reliability. RoHS certification confirms lead-free and environmentally safe production.
Compact 7mm height and 14mm length design simplifies PCB layout.
This current sensor IC is ideal for applications in automotive electronics, industrial control systems, and power management where precise current measurement and reliability are critical. EnvMart offers this advanced sensor, combining high performance with durability, tailored for demanding industrial and electronic environments.
Explore more products in our Current Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current sensor operates effectively within a supply voltage range of 4.5V to 5.5V.
The sensor features an offset voltage of ±6 mV, ensuring precise current measurements.
It offers a bandwidth of 120kHz, suitable for dynamic current monitoring in high-frequency applications.
The current sensor has a height of 7mm and a length of 14mm, facilitating installation in compact spaces.
It can operate in temperatures ranging from -40°C to 150°C, making it suitable for harsh environments.
This model features a 5-pin PFF package designed for through hole mounting, allowing for reliable installation on circuit boards.
Yes, it is designed to meet the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
The sensor complies with RoHS directives, confirming its lead-free and environmentally safe production.
It is ideal for applications in automotive electronics, industrial control systems, and power management where precise current measurement is critical.
The ACS770LCB-050U-PFF-T features a 5-pin configuration.
This current sensor is part of the ACS770 series, which is designed for high-performance current measurement.
The current sensor is manufactured in India.
