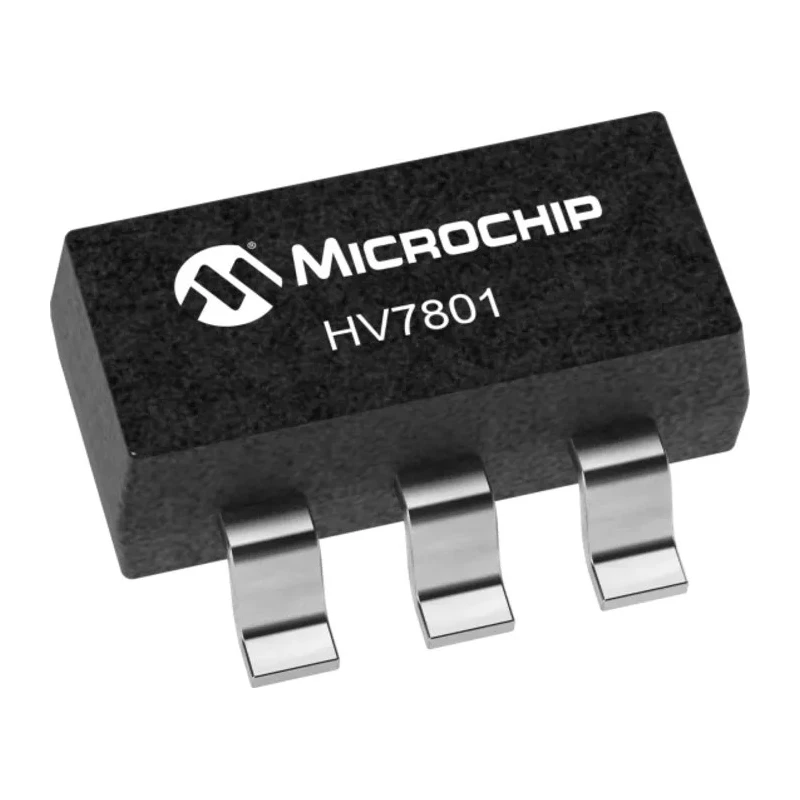

Microchip Current Monitor IC 5-Pin SOT-23 High Side Voltage Gain 5 HV7801K1-G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | HV7801K1-G |
| Mount Type | Surface |
| Series | HV7801 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Quiescent Current | 50μA |
| Offset Voltage | 450 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 450V |
| Minimum Supply Voltage | 8V |
Key Features
- The device provides a voltage gain of five for high side current sensing.
- Supports a minimum supply voltage of 8V and maximum supply voltage up to 450V.
- Extremely low quiescent current of 50 microamperes increases efficiency.
- Compact small form factor with 2.9mm length and 1.45mm height ensures easy integration.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Complies with RoHS standards ensuring environmentally friendly design.
- Fast response with voltage output rise and fall times between 700ns and 2 microseconds.
Product Description
Microchip HV7801K1-G is a precision high side current monitor IC housed in a compact 5-pin SOT-23 surface-mount package. It is designed for accurate transfer of current sense voltage across a wide input voltage range, with a fixed voltage gain of five. This versatility makes it ideal for applications such as offline power supplies, battery management, and portable electronic devices requiring efficient current monitoring.
The device supports supply voltages from 8V up to an exceptional 450V maximum, accommodating a broad spectrum of power system designs. With a low quiescent current of just 50μA, it is optimized for energy-sensitive applications where power conservation is essential.
Its fast rise and fall times, ranging from 700ns to 2μs, offer quick response suitable for dynamic current monitoring scenarios. The small size of 2.9mm x 1.45mm enables implementation in space-constrained designs without compromising performance.
Built to operate reliably in harsh environments with a temperature range from -40°C to 85°C, the HV7801K1-G ensures stable operation across automotive, industrial, and commercial sectors. Being RoHS compliant, it supports green manufacturing and regulatory requirements.
The IC can be integrated seamlessly onto PCBs requiring surface-mount technology. Its design reduces external component count, simplifying circuit design. Ideal for use in industrial control, power measurement systems, and sensor applications where precise current sensing is crucial.
Offers cost-effective and compact solution for monitoring current in high-voltage positive supply rails. The package size and pin configuration provide compatibility with automated assembly lines.
Overall, Microchip HV7801K1-G current monitor IC provides a combination of precision, efficiency, and compact sizing for reliable current sensing in modern electronic systems. Explore more current sensor and semiconductor technology products through EnvMart’s comprehensive electronics catalog for your engineering and production needs.
Explore more products in our Current Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV7801K1-G provides a fixed voltage gain of five for high side current sensing.
It operates reliably between -40°C and 85°C ambient temperatures.
The maximum supply voltage supported by the HV7801K1-G is 450V.
This model has an extremely low quiescent current of 50 microamperes, which enhances efficiency.
The dimensions of this current monitor IC are 2.9mm in length and 1.45mm in height.
It is housed in a compact 5-pin SOT-23 surface-mount package.
Yes, the HV7801K1-G complies with RoHS standards, ensuring an environmentally friendly design.
This model is ideal for applications such as offline power supplies, battery management, and portable electronic devices requiring efficient current monitoring.
The output voltage rise and fall times range from 700ns to 2 microseconds, providing a fast response for dynamic current monitoring.
The minimum supply voltage supported by this current monitor IC is 8V.
The HV7801K1-G has a pin count of 5.
The country of origin for this current monitor IC is India.
