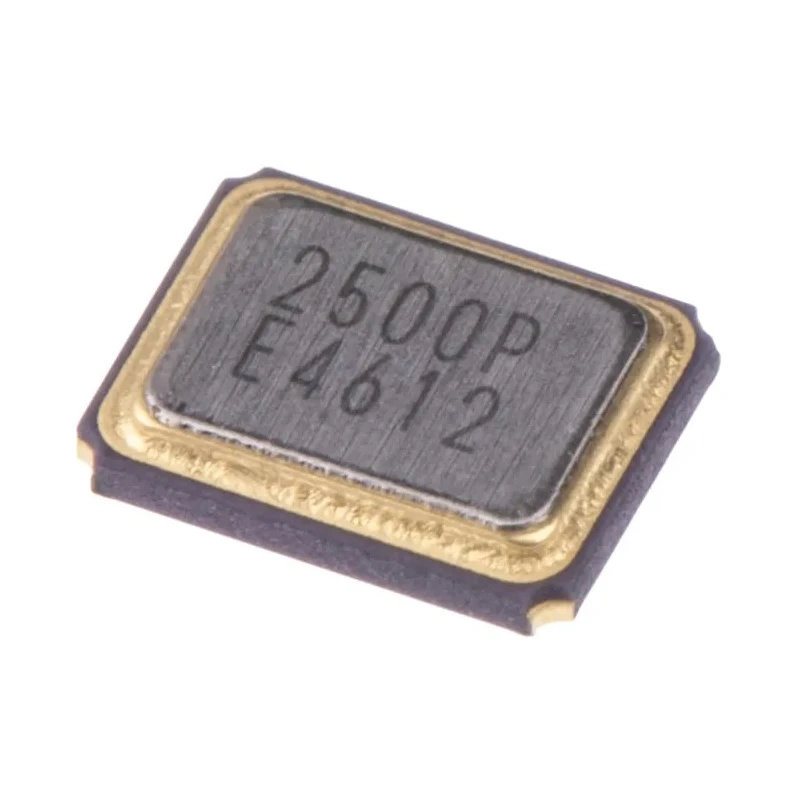

Epson 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 3.2 x 2.5 x 0.7 mm Q22FA2380019411

Free Delivery in India | Lowest Global Shipping Charges

Epson 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 3.2 x 2.5 x 0.7 mm Q22FA2380019411

Name: Epson 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 3.2 x 2.5 x 0.7 mm Q22FA2380019411
Brand: Epson
SKU: 205045
Price: 3.34 USD
Availability: InStock



Category Crystal Units Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 60 MHz
Brand	Epson
Height	0.7mm
Length	3.2mm
Model	Q22FA2380019411
Width	2.5mm
Mount Type	Surface
Series	FA-238
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU

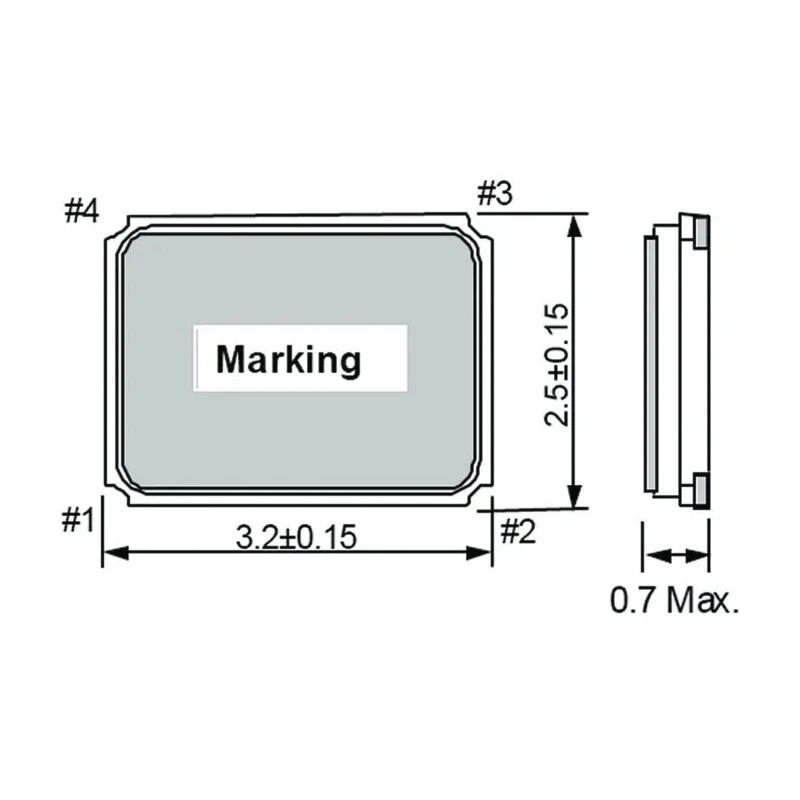

External Dimensions	3.2 x 2.5 x 0.7 mm
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	25MHz
Load Capacitance	12pF
Series Resistance	50Ω
Overtone order	Fundamental

Key Features

Compact surface mount package measuring 3.2 x 2.5 x 0.7 mm.
Load capacitance of 12 pF designed for stable oscillation.
Operating temperature range from -40°C to 85°C for wide environmental conditions.
Series resistance of 50 Ω minimizes signal loss.

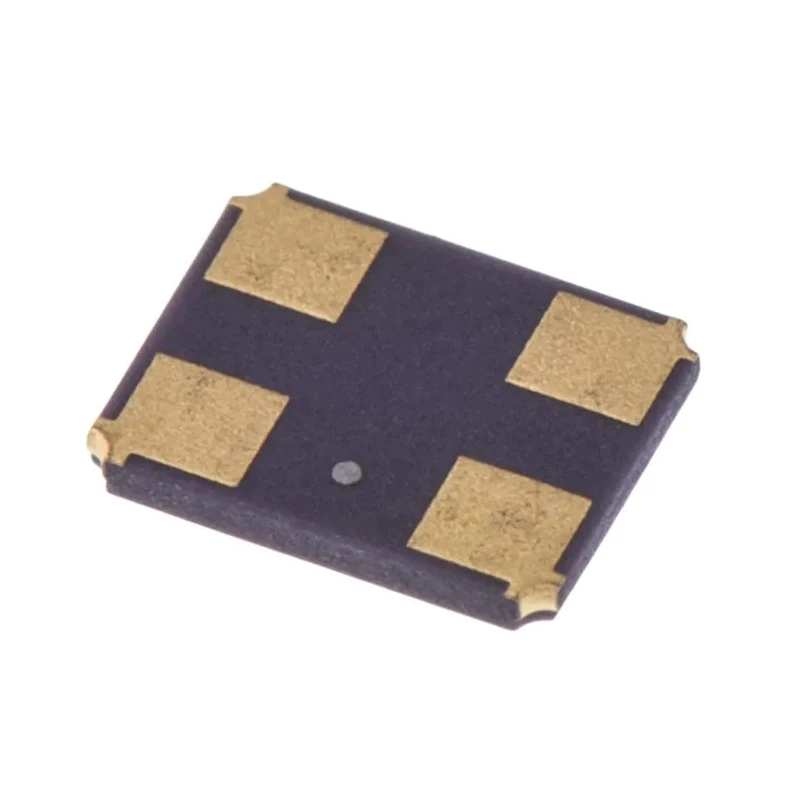

4-pin configuration for easy PCB mounting.
Compliance with RoHS standards for environmental safety.
Ideal for mobile phones, Bluetooth, WLAN ISM band radios, and MPU clock applications.

Product Description

Epson Q22FA2380019411 25 MHz Crystal Surface Mount 4-Pin device features a miniature, low profile design with precise frequency control and robust environmental tolerance. This crystal unit measures 3.2 mm in length, 2.5 mm in width, and 0.7 mm in height, making it suitable for compact electronic devices.

Operating over a temperature range of -40°C to 85°C and featuring a frequency stability of ±30 ppm, it ensures consistent timing signals critical in communication and computing hardware. Its series resistance of 50 Ω supports efficient oscillation with minimal power loss.

Designed for surface mount technology, this crystal is ideal for high-density PCB layouts in mobile phones, Bluetooth modules, WLAN ISM band radios, and microprocessor unit clocks. With a fundamental overtone order, it provides clean and stable frequency signals.

The 4-pin surface mount package simplifies automated assembly and enhances production efficiency. The product adheres to RoHS directives, confirming environmental compliance. Frequency range: 16 MHz to 60 MHz for versatile application.

Compact dimensions optimize board space. Stable operation from -40°C to 85°C. Series resistance of 50 Ω. 12 pF load capacitance for oscillator stability. Fundamental overtone order for accurate frequency resonance. RoHS compliant for environmental safety.

4-pin surface mount package facilitates PCB integration.

This crystal unit is perfectly suited for industrial, telecommunications, and consumer electronics manufacturing where reliable frequency sources are essential. Explore more components in the Crystal Units category at EnvMart for your design and production needs.
