Hirose FH26 0.3 mm Pitch 15 Way Straight Female FPC Connector, Solder

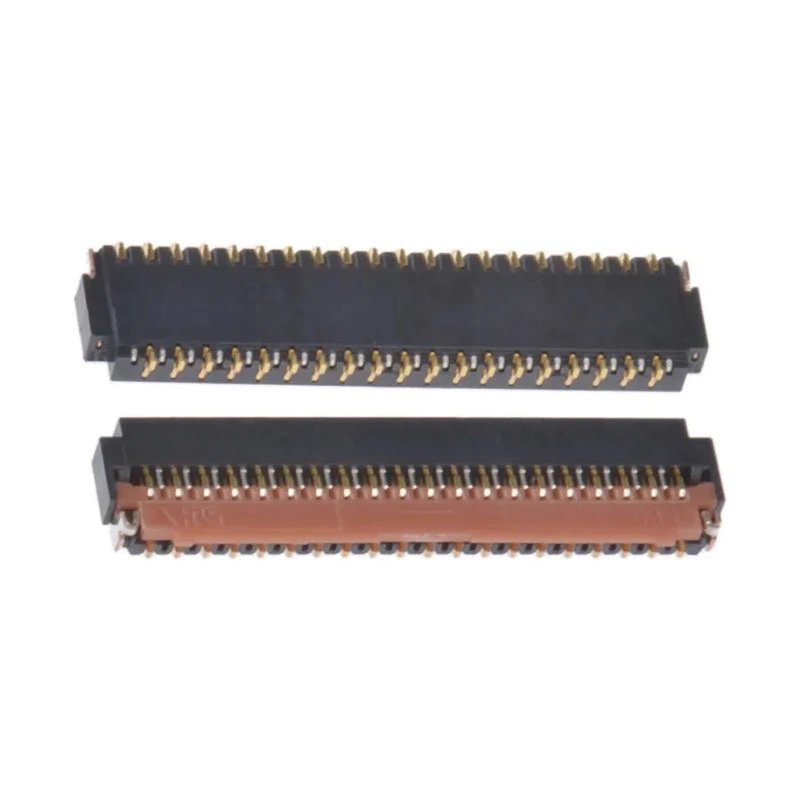

Hirose FH26W-15S-0.3SHW(97) is a 15 way straight female FPC Connector featuring a 0.3 mm pitch and solder termination designed for precise and secure electrical connections in compact electronic assemblies.

This FPC/FFC connector belongs to the FH26 series and incorporates a low-profile, lightweight design with a height of only 1.0 mm and a narrow width of 3.2 mm, offering significant PCB space savings. The connector is equipped with a zero insertion force (ZIF) rotating actuator facilitating easy insertion and firm locking of the flexible printed circuit (FPC). A tactile click confirms the actuator is fully locked, enhancing reliability.

The metal fittings alongside the connector ensure accurate alignment of the FPC/FFC without protruding beyond the connector body, preserving precious PCB space. The bottom of the connector is fully enclosed, permitting mounting over conductive PCB traces without risk of exposure.

Contacts made of gold-plated phosphor bronze and double-sided leads with a 0.6 mm pitch simplify surface mounting, while the connector accepts standard 0.2 mm thick FPCs. The polyamide housing assures excellent mechanical strength, and the connector meets halogen free requirements under IEC61249-2-21 standards.

Ideal for use in miniaturized portable equipment including personal mobile devices, notebook PCs, mobile phones, PDAs, portable audio players, and DVD-R devices. This connector is well suited for industrial, laboratory, manufacturing, and commercial electronics applications where compact, reliable FPC connections are essential.

Features a 0.3 mm pitch with 15 contacts for reliable connections. Female connector type with straight orientation and bottom contact position. Zero Insertion Force (ZIF) insertion for easy and secure cable engagement. Gold-plated phosphor bronze contacts ensure excellent conductivity and durability.

Polyamide housing provides robust insulation and durability. Operating voltage of 30V AC and current rating of 200mA suitable for low-power applications. Wide operating temperature range from -55°C to 85°C for versatile environments.

Locking mechanism with a rotating one-touch actuator for secure retention. Halogen free design complying with IEC61249-2-21 for environmental safety. Compact dimensions with a 1.0 mm height profile and double-sided leads enhance PCB mounting flexibility.
