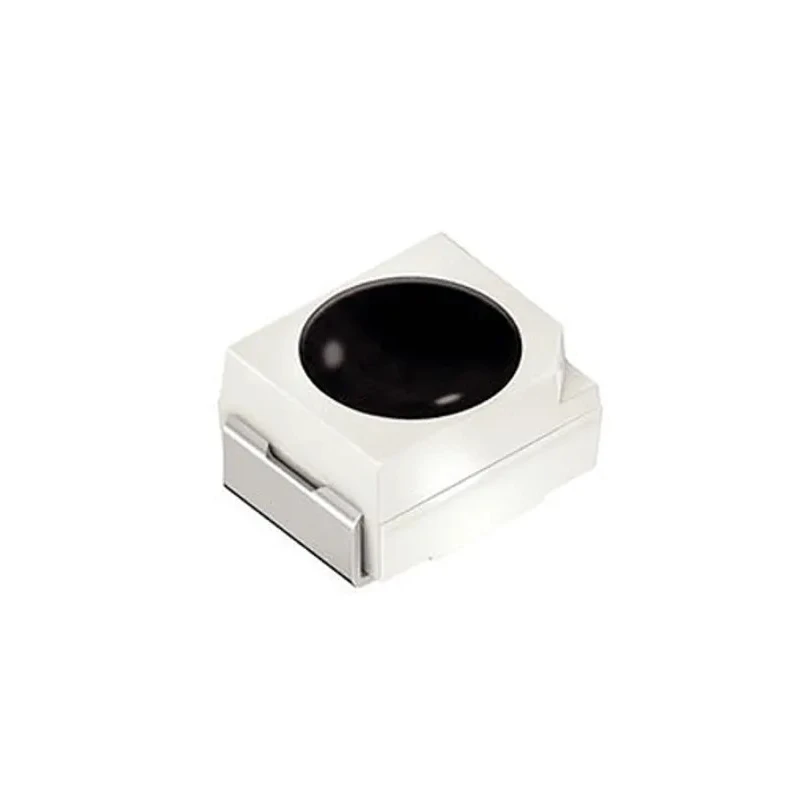

ams OSRAM TOPLED 120° Infrared Phototransistor Surface Mount 2-Pin PLCC Package SFH 320 FA-4

The ams OSRAM SFH 320 FA-4 TOPLED® Infrared Phototransistor is designed for precise and reliable infrared sensing applications. Featuring a surface mount 2-pin PLCC package, it offers a wide angular sensitivity of 120° suitable for diverse detection environments.

This phototransistor detects infrared signals at a peak wavelength of 980nm with high linearity, making it ideal for applications requiring rapid and accurate response. Its fast typical rise and fall times of 7μs enhance performance in high-speed signal processing circuits.

The SFH 320 FA-4 supports a maximum collector current of 15mA with a maximum light current of 1000μA and maintains minimal dark current leakage of 50nA enhancing signal-to-noise ratio even under low-light conditions.

Its compact PLCC-2 package measuring 3.4mm in length, 3mm in width, and 2mm in height, makes it suitable for space-constrained electronic assemblies with surface mount technology (SMT). The device operates effectively over a wide temperature range from -40°C to 100°C, ensuring reliability under varying environmental conditions.

The phototransistor has a collector emitter voltage rating of 35V and is compliant with RoHS standards, reflecting its suitability for eco-conscious manufacturing and industrial use.

Applications of this phototransistor include optical sensing in industrial, consumer electronics, communication devices, and automation systems. The component is supplied in tape & reel packaging facilitating efficient manufacturing workflows.

Explore more from ams OSRAM in the Phototransistors category at EnvMart to find complementary components ideal for your design requirements. The phototransistor detects infrared spectrum with a peak wavelength of 980nm. It features a fast typical rise and fall time of 7μs each for responsive signal detection.

Maximum collector current rating is 15mA with a maximum light current of 1000μA. The device is housed in a compact PLCC-2 surface mount package measuring 3.4mm x 3mm x 2mm. Operates reliably between -40°C and 100°C ambient temperature.

Collector emitter voltage rating is 35V, suitable for typical electronic applications. Compliant with RoHS standards ensuring environmental conformity. Packaging is supplied as Tape & Reel for efficient automated assembly processes.
