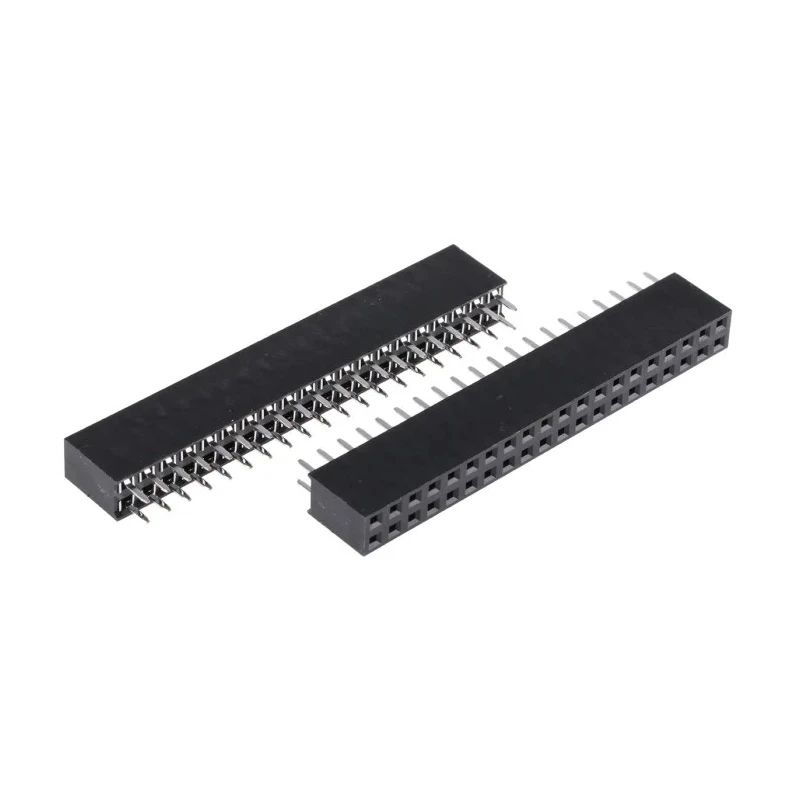

HARWIN M20 Series 40-Contact 2 Row Straight Through Hole PCB Socket, 2.54 mm Pitch, 12A Current M20-7832046
Specifications
| Country of Origin | China |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7832046 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design suitable for increased PCB density and height restrictions.
- Constructed with high temperature UL94V-0 Liquid Crystal Polymer housings.
- Durable dual beam bronze contacts plated with tin over nickel for reliable connections.
- Rated for continuous current up to 12A per contact.
- Suitable for up to 300 mating cycles ensuring long-term reliability.
- Wide operating temperature range from -40°C to 105°C.
- Designed for use in embedded PCs, motherboards, industrial controls, and communications equipment.
- Through hole mounting ensures sturdy solder connections in various electronics applications.
Product Description
HARWIN M20-7832046 is a precision-engineered PCB socket with 40 female contacts arranged in 2 rows, featuring a 2.54 mm pitch and a straight through hole mounting configuration. The socket is constructed using high temperature UL94V-0 rated Liquid Crystal Polymer housings, allowing it to withstand standard reflow soldering processes. Its robust design incorporates bronze dual beam contacts plated with tin over nickel to deliver excellent electrical connectivity and enhanced durability over a product lifecycle.
Rated to carry a maximum current of 12A per contact and designed for up to 300 mating operations, this socket provides reliability for demanding electronic assemblies. Operating reliably over a wide temperature range (-40°C to 105°C), it meets RoHS standards to support environmentally compliant manufacturing processes.
The M20 series socket supports board-to-board connections, making it ideal for use in high-density embedded PCs, motherboards, industrial monitoring systems, communication devices, and control drives. The through hole mount type ensures secure and stable soldered connections on printed circuit boards.
Compact design to meet high PCB density and height constraints. Made using UL94V-0 high temperature thermoplastic Liquid Crystal Polymer. Bronze dual beam contacts provide improved electrical performance. Tin over nickel plating enhances corrosion resistance.
Supports current rating of up to 12A per contact. Suitable for industrial and consumer electronics applications. Designed for reliable solder termination with through hole mounting.
This HARWIN M20 series PCB socket is manufactured in China and is widely adopted for industrial, consumer electronics, communication, and computing applications requiring robust and reliable connector solutions. It is a standard component in embedded systems and motherboards where space and reliability are critical.
Explore EnvMart's extensive catalog of electronics components like PCB Sockets and connectors for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of up to 12A per contact.
The contacts are arranged with a pitch of 2.54 mm.
It features 40 female contacts arranged in 2 rows.
The housing is made from high temperature UL94V-0 rated Liquid Crystal Polymer, while the contacts are made of bronze with tin over nickel plating.
It operates reliably over a wide temperature range from -40°C to 105°C.
Yes, it meets RoHS standards, supporting environmentally compliant manufacturing processes.
This model uses through hole mounting, ensuring secure and stable soldered connections.
It is designed for up to 300 mating cycles, ensuring long-term reliability.
It supports board-to-board connections, making it suitable for various electronic applications.
The orientation of this socket is straight.
This socket is manufactured in China.
The termination type for this model is solder.
