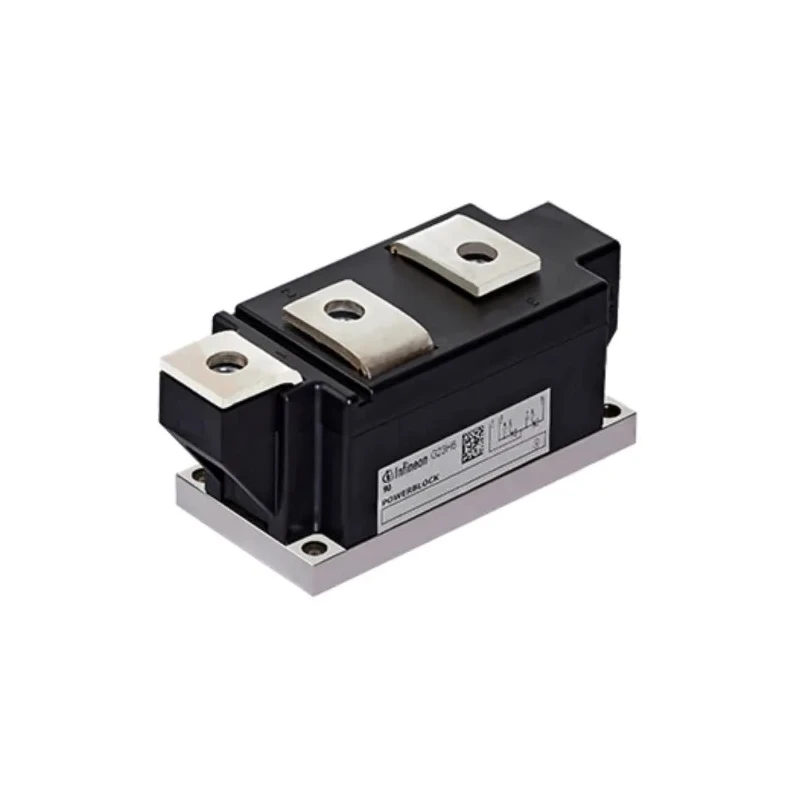

Infineon Thyristor Module 1800 V, 20 kA Surge Current, 566 A On-State Current TT570N18KOFHPSA1

Infineon TT570N18KOFHPSA1 is a high-performance Thyristor Module designed for power electronics applications. Featuring a repetitive peak reverse voltage of 1800 V and a surge current rating of 20 kA, this module handles heavy industrial loads efficiently and reliably.

The device delivers a rated average on-state current of 566 A, supported by maximum gate trigger current and holding current ratings of 250 mA and 300 mA respectively. Its low peak on-state voltage of 1.38 V ensures minimal conduction losses, enhancing power efficiency.

Constructed with pressure contact technology, the module guarantees exceptional reliability and durability under prolonged industrial usage. It is rated to operate at maximum temperatures up to 125°C, making it suitable for harsh environments commonly found in industrial, manufacturing, and power control systems.

Mounting is made easy with its chassis mount design and 60 mm base plate, facilitating integration into various machinery and control assemblies. The module’s repetitive peak off-state current of 120 mA and maximum gate trigger voltage of 2 V add to its stable performance in electrical applications.

Although it does not comply with specific automotive standards, this Thyristor Module is ideal for industrial power electronics, including phase control, power conversion, and surge current management. It is widely used in industrial automation, manufacturing equipment, power supplies, and energy management systems.

Rated average on-state current 566 A. Repetitive peak reverse voltage 1800 V. Surge current rating 20 kA for transient protection. Maximum operating temperature of 125°C. Pressure contact technology for high reliability.

Chassis mount with a 60 mm base plate. Low peak on-state voltage of 1.38 V. Maximum gate trigger current 250 mA. Maximum holding current 300 mA. Industrial applications including phase control and power management. Explore more Infineon semiconductor modules and power control products in the Electronics & Electricals category on EnvMart for reliable industrial use.
