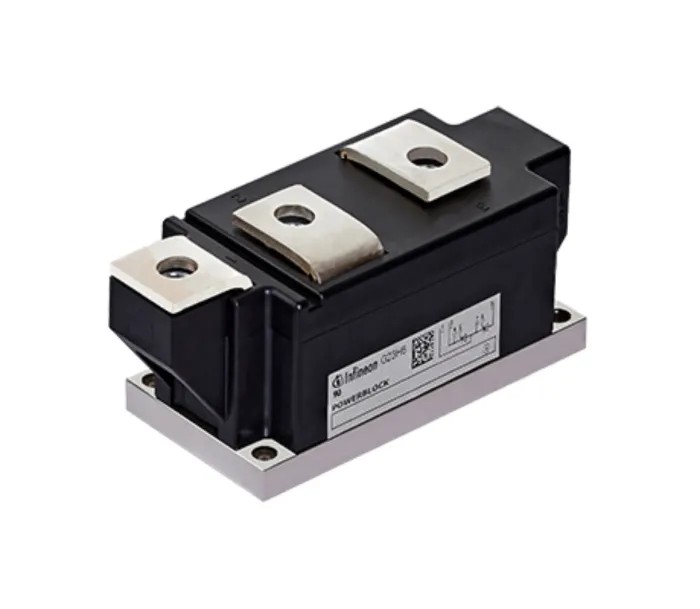

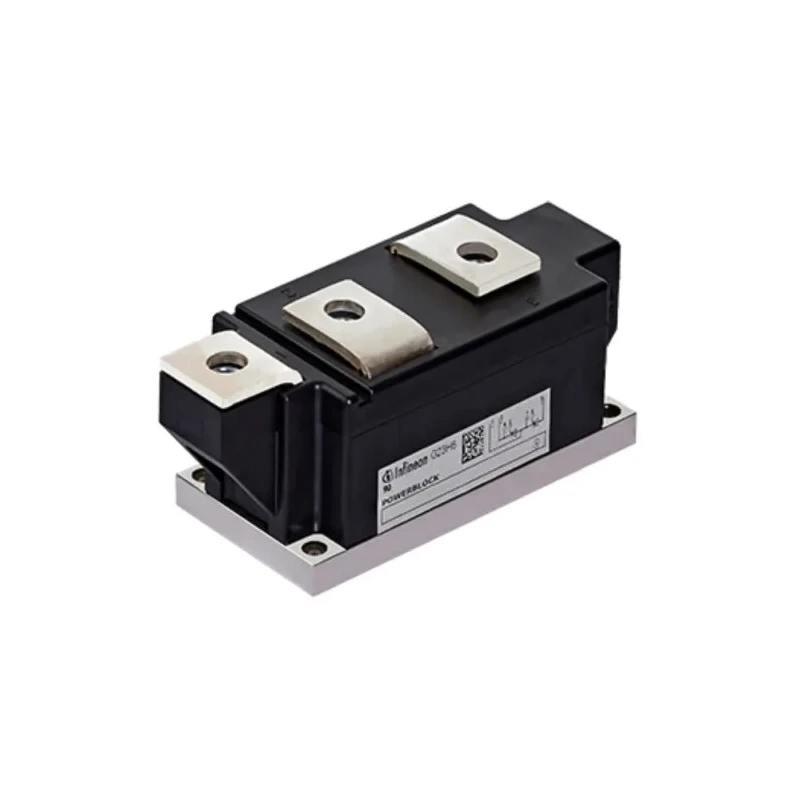

Infineon Thyristor Module 1800 V 23.5 kA 775 A 250 mA 1.35 V TT780N18KOF TD780N18KOFHPSA1

The Infineon TD780N18KOFHPSA1 Thyristor Module is engineered for demanding industrial and power electronic applications requiring robust current and voltage control. This module features a repetitive peak reverse voltage of 1800 V and a rated average on-state current of 775 A, supporting a surge current as high as 23.5 kA, making it suitable for high-power switching tasks.

Designed with a maximum gate trigger current of 250 mA and a gate trigger voltage of 2 V, it offers precise control capabilities, ensuring safe and efficient switching. Its maximum holding current of 300 mA and peak on-state voltage of 1.35 V provide stable conduction and minimal losses during operation. The module can operate at temperatures up to 135°C, ensuring reliable performance in harsh industrial environments.

The chassis mount configuration with a 60 mm base plate allows secure and effective heat dissipation, promoting longevity and operational stability. This thyristor module is ideal for use in power management systems, motor controls, industrial automation, and HVAC applications where phase control is critical.

Though this product does not comply with automotive standards or hold specific certifications, it remains a reliable component for varied industrial systems requiring durable and efficient power semiconductor devices. The TT780N18KOF series ensures compatibility and performance consistency within its product range.

Designed for high surge current rating of 23.5 kA. Maximum gate trigger current is 250 mA with a gate trigger voltage of 2 V. Maximum holding current rated at 300 mA for stable operation. Peak on-state voltage maintained at 1.35 V for efficient conduction.

Supports maximum operating temperature up to 135°C ensuring durability. Chassis mount design with 60 mm base plate for secure installation. Ideal for industrial power control and phase control applications. Non-automotive grade standard, with no specific certifications listed.

Series TT780N18KOF ensures consistency within product family. Repetitive peak off-state current rated at 120 mA for reliability. Explore more high-quality Thyristor Modules and power semiconductor devices in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
