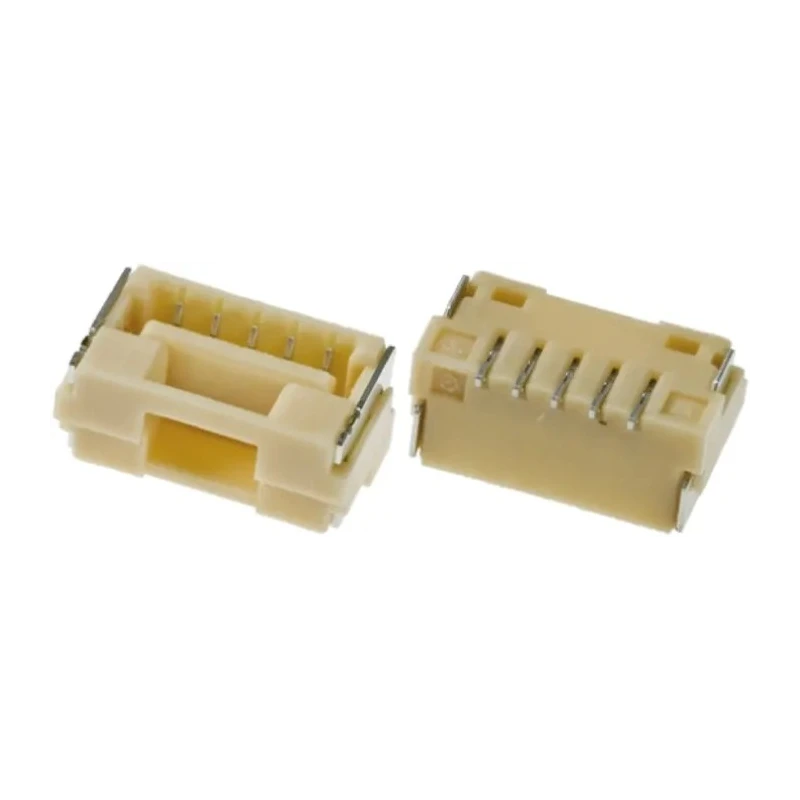

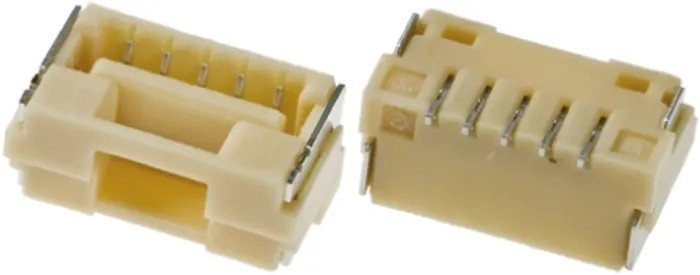

Molex CLIK-Mate Series Vertical Surface PCB Socket 5-Contact 1 Row 1.25 mm Pitch 50V Solder 502382-0570
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 12A |
| Mount Type | Surface |
| Contact Material | Copper |
| Series | CLIK-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Connector System | Wire-to-Board |
Key Features
- Current rating of 12A suitable for moderate power applications.
- Operates at a maximum voltage of 50V for reliable performance.
- Features a vertical orientation mounting style optimized for surface installation.
- Constructed with copper contacts ensuring durability and conductivity.
- Lock design enables ease of use with superior mating retention.
- Compact 1.25mm pitch offers approximately 60% space saving compared to 2.00mm pitch versions.
- Operates within a temperature range of -25°C to 85°C for versatile environmental use.
- Compliance with RoHS standards ensuring eco-friendly manufacturing.
Product Description
Molex 502382-0570 CLIK-Mate Series Vertical Surface PCB Socket is a high-quality 5-contact, single-row connector with a 1.25 mm pitch designed for wire-to-board connections. It features solder termination and surface mounting with a vertical orientation, making it suitable for compact PCB applications requiring reliable electrical connections.
The socket supports a current rating of 12A and a voltage rating of 50V, ensuring stable performance in demanding electronic circuits. The robust copper contact material guarantees excellent conductivity and long service life. Operating temperature ranges from -25°C to a maximum of 85°C, allowing use in a variety of industrial and commercial environments.
This socket is part of the CLIK-Mate series, which incorporates a unique lock design for easy operation combined with superior mating retention. The tuning-fork terminal concept provides low insertion force with a secure mating contact, enhancing reliability. The compact 1.25 mm pitch allows approximately 60% space savings compared to traditional 2.00 mm pitch connectors, optimizing PCB real estate utilization.
Designed for applications such as LCD televisions and other consumer electronics that require higher pin counts and signal density in limited space, this connector meets RoHS compliance standards, supporting environmentally responsible manufacturing processes.
Current rating of 12A supports moderate power levels. Voltage rating up to 50V ensures secure electrical operation. Solder termination and surface mount type for stable PCB assembly. Vertical orientation suitable for specialized component layouts.
Compact pitch contributes to space-saving on high-density PCBs. Locking mechanism provides positive mating assurance and prevents disconnects. Constructed with copper contacts for high conductivity and durability. Wide temperature range supports varied operating environments.
RoHS compliant for eco-friendly usage and disposal. Ideal for consumer electronic devices needing reliable connectors. Explore more PCB Sockets and related electronic components at EnvMart, your trusted industrial catalog partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 12A, making it suitable for moderate power applications.
This connector operates at a maximum voltage of 50V, ensuring reliable performance in various applications.
The pitch size of this socket is 1.25 mm, which allows for approximately 60% space savings compared to 2.00 mm pitch connectors.
It supports surface mounting with a vertical orientation, optimized for compact PCB applications.
The contacts of this model are constructed from copper, ensuring good conductivity and durability.
This socket operates within a temperature range of -25°C to 85°C, suitable for various environmental conditions.
This connector features 5 contacts, designed for wire-to-board connections.
Yes, this model is RoHS compliant, supporting eco-friendly manufacturing processes.
It uses solder termination, which provides stable PCB assembly.
This socket is designed for applications such as LCD televisions and other consumer electronics that require higher pin counts in limited space.
It incorporates a unique lock design that provides positive mating assurance and prevents disconnects during operation.
The country of origin for this model is Japan.
