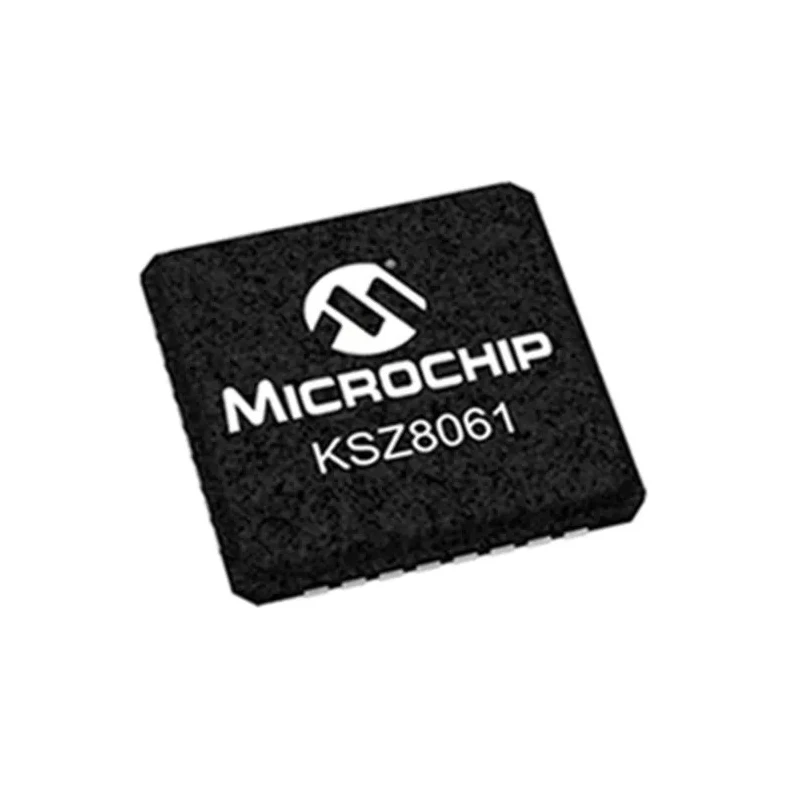

Microchip 32-Pin QFN Ethernet Transceiver 3.3 V 100 Mbps RMII 100Base-TX 10Base-T KSZ8061RNDW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 5mm |
| Model | KSZ8061RNDW |
| Width | 5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet |
| Communication Mode | 100Base-TX, 10Base-T |
| Interface Type | RMII |
| Standards/Approvals | IEEE 802.3az, AEC-Q100 |
| Pin Count | 32 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 59mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Local (Digital) Loopback, Remote (Analogue) Loopback |
| Standard Supported | IEEE 802.3az |
| Number of Transceivers | 1 |
Key Features
- Supports 100Base-TX and 10Base-T Ethernet communication standards.
- Comes in a 32-pin QFN package suitable for surface mount applications.
- Includes Quiet-WIRE® technology for programmable EMI noise filtering.
- Exceeds automotive AEC-Q100 and IEEE 802.3az Energy Efficient Ethernet standards.
- Operates over a wide temperature range from -40°C to 105°C.
- Features Local Digital and Remote Analogue Loopback diagnostic modes.
- Low supply current of 59mA at 3.3 V supply voltage.
- Compact 5mm x 5mm footprint with 800μm package height.
Product Description
Microchip KSZ8061RNDW is a 32-pin QFN Ethernet Transceiver designed for high-speed 10Base-T and 100Base-TX network applications. Operating at 3.3 V, it supports the Reduced Media Independent Interface (RMII) for seamless integration with Ethernet MAC processors and switches. This transceiver is ideally suited for automotive and industrial environments where robust communication and EMI noise reduction are critical.
The device incorporates Microchip's proprietary Quiet-WIRE® technology, enabling programmable EMI filters that reduce emissions and enhance immunity, allowing use in stringent environments without costly shielded cables. It complies with automotive standard AEC-Q100 and IEEE 802.3az Energy Efficient Ethernet, ensuring energy savings and reliability.
The KSZ8061R features Local Digital and Remote Analogue Loopback modes for diagnostic testing, and an ultra-deep sleep standby mode for power conservation. With on-chip termination resistors for differential pairs and the LinkMD®+ feature providing receive signal quality indication, it delivers excellent signal integrity. Its compact 5 mm by 5 mm QFN package with 800μm height supports surface mounting, making it suitable for dense PCB layouts.
This Ethernet transceiver operates reliably across a temperature range of -40°C to 105°C, making it highly adaptable for harsh conditions in automotive and industrial applications where data communication through unshielded twisted pair (UTP) cable is required.
Supports 100Base-TX and 10Base-T Ethernet communication standards. Comes in a 32-pin QFN package suitable for surface mount applications. Includes Quiet-WIRE® technology for programmable EMI noise filtering. Exceeds automotive AEC-Q100 and IEEE 802.3az Energy Efficient Ethernet standards.
Operates over a wide temperature range from -40°C to 105°C. Features Local Digital and Remote Analogue Loopback diagnostic modes. Low supply current of 59mA at 3.3 V supply voltage. Compact 5mm x 5mm footprint with 800μm package height.
Designed for automotive and industrial Ethernet applications requiring reliable noise immunity. Explore the full range of Microchip Ethernet transceivers and interface ICs on EnvMart for reliable industrial and automotive Ethernet networking components.
Explore more products in our Ethernet Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports 100Base-TX and 10Base-T Ethernet communication standards.
This model operates over a wide temperature range from -40°C to 105°C.
It operates at a supply voltage of 3.3 V with a low supply current of 59 mA.
The transceiver comes in a 32-pin QFN package with dimensions of 5 mm x 5 mm and a height of 800 μm.
It features Local Digital and Remote Analogue Loopback diagnostic modes for testing purposes.
It exceeds the automotive standard AEC-Q100, ensuring reliability in automotive applications.
It incorporates Quiet-WIRE® technology for programmable EMI noise filtering, enhancing immunity in stringent environments.
Yes, it is designed for surface mount applications, making it ideal for dense PCB layouts.
The maximum data rate supported by this transceiver is 100 Mbps.
It complies with IEEE 802.3az Energy Efficient Ethernet standards, ensuring energy savings.
This model includes one transceiver.
It uses the Reduced Media Independent Interface (RMII) for integration with Ethernet MAC processors and switches.
