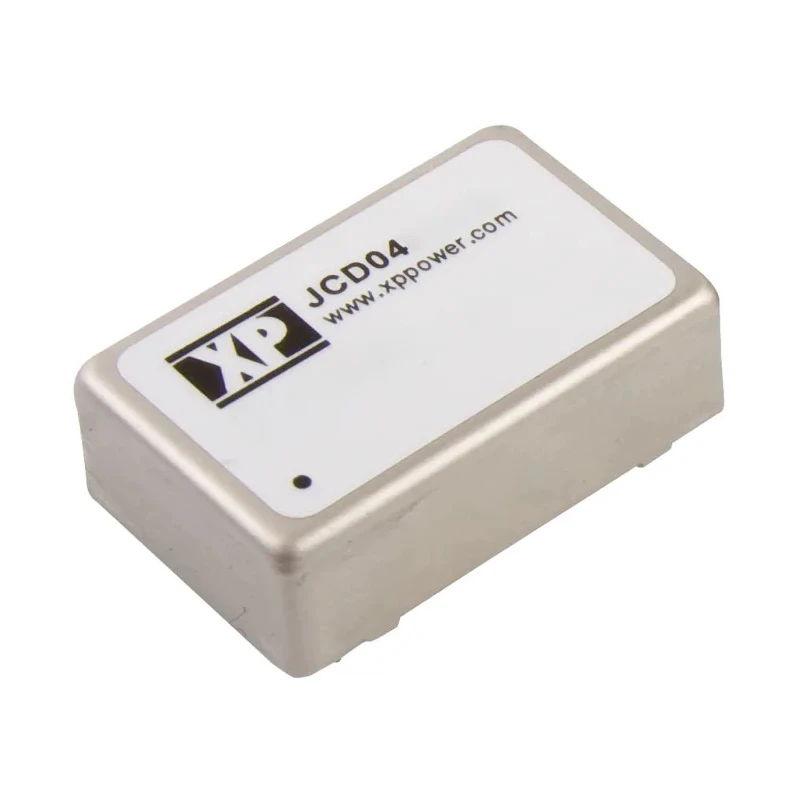

XP Power Isolated DC/DC Converter 12V dc, 333 mA Output, 18-36V Input, 4W Power, Through Hole DIP Package, JCD0424S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 12V dc/ 333 mA, 36V |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 31.75mm |
| Model | JCD0424S12 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 4W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 333mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This converter features a compact DIP package for easy through-hole mounting.
- It supports a wide input voltage range from 18V to 36V for flexible power sources.
- The output voltage is a regulated 12V DC at 333 mA current.
- High efficiency of approximately 84% ensures low power loss during conversion.
- Designed for operation between -40 °C to 100 °C ambient temperatures.
- It offers 1600 VDC isolation voltage for enhanced safety and noise reduction.
- Continuous short circuit protection provides reliable and safe operation.
- Compact dimensions with 31.75mm length, 20.32mm width, and 10.4mm depth conserve PCB space.
Product Description
XP Power JCD0424S12 is a reliable isolated DC-DC converter designed to deliver 12V DC output at 333 mA with a maximum power rating of 4W. It accepts a wide input voltage range of 18V to 36V DC, making it suitable for various power supply conditions.
This converter is housed in a through-hole DIP package facilitating straightforward board mounting, ideal for industrial and electronic applications requiring compact and efficient power conversion solutions. Its 2:1 input ratio and a single output configuration provide versatility for use in electronics, power supplies, and embedded systems.
Featuring an efficiency of 84% and continuous short circuit protection, the unit maximizes energy conversion while protecting against fault conditions. The 1600 VDC isolation ensures system safety by separating input and output, which is critical in sensitive electronics and industrial control circuits.
The converter operates reliably over a temperature range from -40 °C to 100 °C, allowing deployment in harsh environments including industrial, laboratory, and manufacturing settings. Its compact dimensions (31.75 mm length, 20.32 mm width, and 10.4 mm depth) enable efficient use of PCB real estate in multilayer designs.
The product complies with RoHS standards, supporting eco-friendly electronics manufacturing. With a high MTBF rating of 1,100,000 hours, it ensures long operational life and reduced maintenance in critical installations.
Compact through-hole DIP package for easy board mounting. Wide input voltage range of 18V to 36V DC with 2:1 input ratio. Provides stable 12V DC output at 333 mA current. High conversion efficiency of 84% to minimize heat and energy loss.
Continuous short circuit protection enhances operational safety. 1600 VDC isolation voltage supports noise immunity and safety. Operating temperature range from -40 °C to 100 °C for harsh environments. RoHS compliant for environmental standards.
MTBF of 1.1 million hours indicates durable performance.
This XP Power DC/DC converter is suitable for use in electronic components, power supply units, industrial control, automation systems, and embedded electronic applications requiring isolated voltage conversion with reliable performance.
Explore more quality DC/DC Converters from XP Power and related products in the Electronics & Electricals category at EnvMart for efficient power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a maximum output current of 333 mA.
It accepts a wide input voltage range from 18V to 36V DC, allowing for flexible power source options.
The converter boasts an efficiency of approximately 84%, minimizing heat and energy loss during operation.
It has compact dimensions of 31.75 mm in length, 20.32 mm in width, and 10.4 mm in depth, making it suitable for space-constrained applications.
This unit features an isolation voltage of 1600 VDC, enhancing safety and noise immunity in sensitive applications.
It operates reliably within a temperature range of -40 °C to 100 °C, suitable for harsh environments.
The JCD0424S12 is designed for through-hole mounting, facilitating easy installation on printed circuit boards.
Yes, it includes continuous short circuit protection to enhance operational safety during use.
The maximum output power is rated at 4W, making it suitable for various electronic applications.
The mean time between failures (MTBF) is rated at 1,100,000 hours, indicating a long operational life.
Yes, it complies with RoHS standards, supporting eco-friendly electronics manufacturing practices.
This converter is suitable for use in electronic components, power supply units, industrial control, automation systems, and embedded electronic applications.
