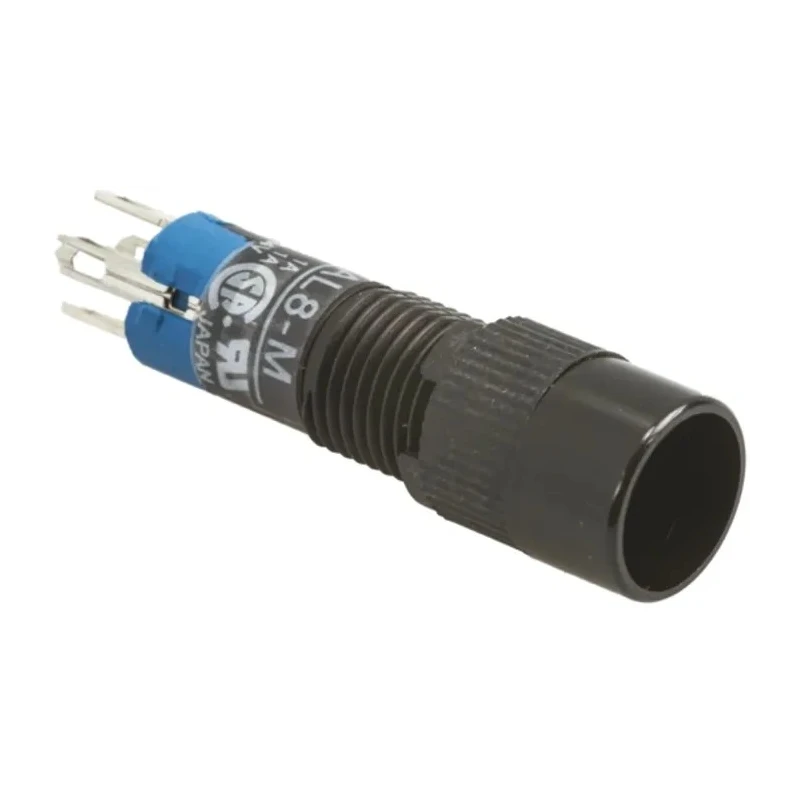

Idec Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 8 mm Cutout, SPDT, IP40, 24 V dc 125 V ac AL8M-M100
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Length | 22mm |
| Model | AL8M-M100 |
| IP Rating | IP40 |
| Mount Type | Panel |
| Series | AL |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Note | When not illuminated, the green LED appears to be yellow |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 8 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cylinder |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 125V ac |
| SUB-MIN ILLUM SW MOM RNDBrand | NEUTRAL |
Key Features
- The switch features a black cylinder actuator for intuitive control.
- It has a SPDT contact configuration, allowing single-pole double-throw operation.
- Designed for panel mount with solder terminals ensuring secure connections.
- Rated IP40 for protection against solid objects larger than 1 mm.
- Operates reliably between -25°C and 120°C to suit diverse industrial environments.
- Supports contact voltages of 24 V dc and 125 V ac with a contact current rating of 100 mA.
- LED illumination is designed to be used with suitable LEDs supplied separately for clear visibility.
- The switch length is 22 mm, facilitating compact installations.
Product Description
Idec AL8M-M100 is an illuminated miniature push button switch designed for panel mounting with an 8 mm cutout. Featuring a momentary operation and a cylindrical black actuator, it provides reliable single-pole double-throw (SPDT) switching suitable for various control panel applications.
This switch supports a contact voltage of 24 V dc and 125 V ac with a current rating of 100 mA, making it suitable for low power industrial control circuits. Its IP40 rating ensures protection against solid objects larger than 1 mm, suitable for indoor environments requiring basic dust ingress protection.
The switch operates within a temperature range from -25°C to 120°C, ensuring reliable performance under wide environmental conditions. It is equipped with solder terminals facilitating secure and easy installation within electrical panels.
The illumination feature of the AL8M-M100 uses LEDs which are supplied separately, allowing customization of indicator colors and visibility. When not illuminated, the green LED appears as yellow. The lens system consists of a diffuser and a colored transparent front cover, optionally marked for switch function identification.
The actuator has a black cylinder style for ergonomic operation. SPDT contact configuration enables switching between two circuits. Mount type is panel, designed for secure panel installation. LED illumination requires current limiting with an external resistor as specified in technical documents.
Conforms to CSA and UL standards for safety and quality assurance. Compact length of 22 mm supports space-saving panel designs. Manufactured in Japan ensuring high manufacturing quality and consistency.
This push button switch is ideal for use in industrial automation systems, electrical switch panels, machinery control interfaces, HVAC equipment control, and instrumentation panels where reliable momentary switching with visible status indication is required.
Explore the range of professional grade push button switches at EnvMart for industrial and commercial electrical applications.
Explore more products in our Push Button Switches & Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing it to switch between two circuits.
It supports contact voltages of 24 V dc and 125 V ac, with a contact current rating of 100 mA.
This switch operates reliably between -25°C and 120°C, making it suitable for diverse industrial environments.
The switch has an IP40 rating, providing protection against solid objects larger than 1 mm.

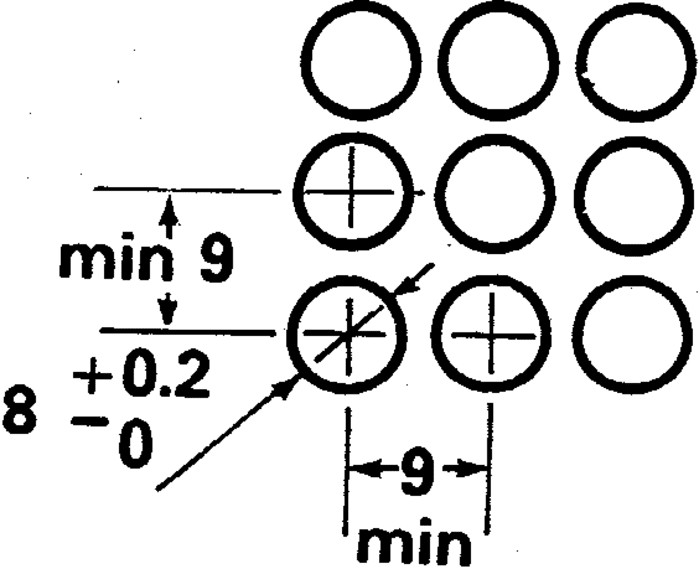

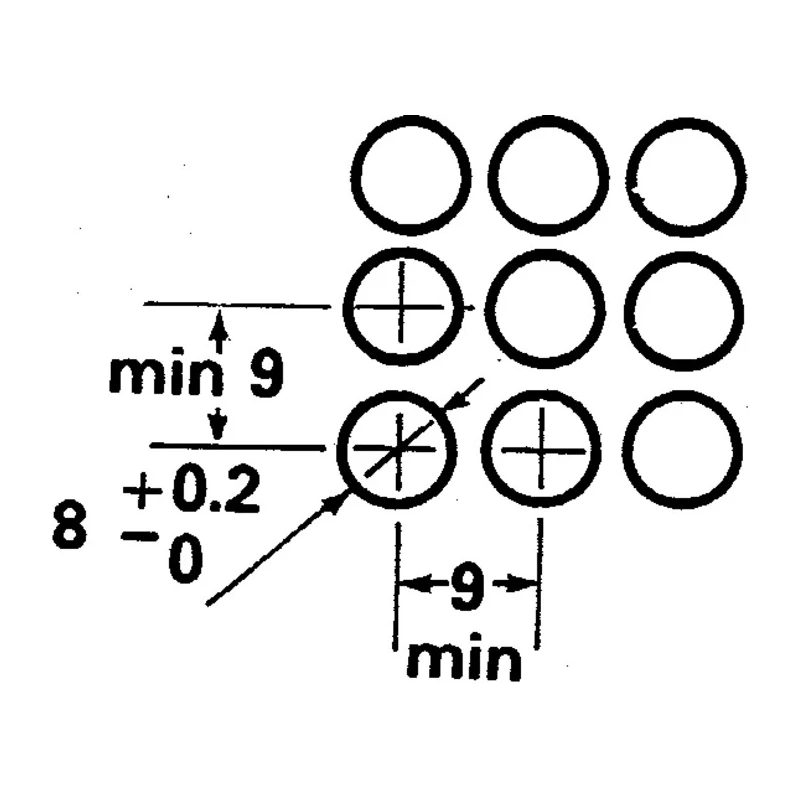

It requires an 8 mm cutout for panel mounting.
This model is equipped with solder terminals, ensuring secure connections during installation.
The switch has a compact length of 22 mm, facilitating space-saving installations.
It is designed for use with suitable LEDs supplied separately, allowing for customization of indicator colors.
It conforms to CSA and UL standards for safety and quality assurance.
The actuator has a black cylinder style, providing ergonomic operation.
This push button switch is ideal for use in industrial automation systems, electrical switch panels, and machinery control interfaces.
