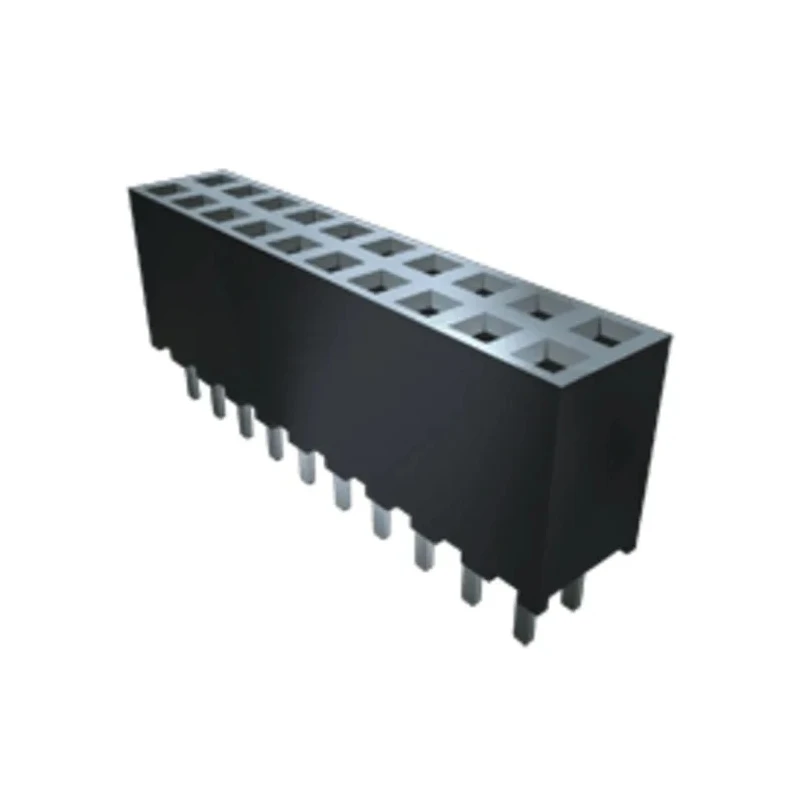

Samtec SQW Series Straight Surface PCB Socket, 16-Contact, 2 Row, 2 mm Pitch, 3.8A, 281V SQW-108-01-L-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | SQW-108-01-L-D |
| Mount Type | Surface |
| Special Features | FleXYZ™ design allows design flexibility in all three axes |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SQW |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Constructed with Liquid Crystal Polymer housing for durability.
- Contact material is bronze with gold plating for reliable conductivity.
- Designed with FleXYZ™ technology allowing flexible alignment in three axes.
- Supports operating temperatures from -55°C to 125°C for harsh environments.
- Mount type is surface mount, providing easy PCB installation.
- Orientation is straight, suitable for vertical configuration.
- Compatible with Tiger Buy™ contact system for performance consistency.
- Termination type includes solder, suitable for secure electrical connections.
Product Description
Samtec SQW-108-01-L-D PCB Socket from the SQW Series is a high-quality straight surface mount connector with 16 contacts arranged in 2 rows and a 2 mm pitch. It supports a current rating of 3.8A and a voltage rating of 281V, making it suitable for various industrial and electronic applications requiring reliable board-to-board connections.
The socket housing is made of robust Liquid Crystal Polymer, ensuring mechanical stability and high temperature resistance, operating from -55°C up to 125°C. Contacts are fabricated from bronze and plated with gold for enhanced conductivity and corrosion resistance. The FleXYZ™ design provides multi-axis flexibility during PCB assembly, easing alignment challenges.
This connector employs the Tiger Buy™ contact system and offers solder termination for secure attachment on printed circuit boards. Its straight vertical orientation and surface mount design simplify installation and ensure consistent electrical performance.
Ideal for industrial, manufacturing, laboratory, and electronic equipment assembly use cases, this socket is engineered to deliver durability and precision. It complies with industry standards, though no explicit certifications are listed.
The product is manufactured in the United States, ensuring adherence to stringent quality and reliability benchmarks. Constructed with Liquid Crystal Polymer housing for durability. Contact material is bronze with gold plating for reliable conductivity.
Designed with FleXYZ™ technology allowing flexible alignment in three axes. Supports operating temperatures from -55°C to 125°C for harsh environments. Mount type is surface mount, providing easy PCB installation. Orientation is straight, suitable for vertical configuration.
Compatible with Tiger Buy™ contact system for performance consistency. Termination type includes solder, suitable for secure electrical connections. Manufactured in the United States, assuring quality standards. Explore more high-quality PCB Sockets and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3.8A and a voltage rating of 281V, making it suitable for various applications requiring reliable board-to-board connections.
The housing is constructed from Liquid Crystal Polymer, which provides mechanical stability and high temperature resistance.
This connector features a 2 mm pitch and has 16 contacts arranged in 2 rows.
The orientation of this model is straight, making it suitable for vertical configuration during installation.
It employs solder termination, which ensures secure electrical connections on printed circuit boards.
It supports operating temperatures from -55°C to 125°C, allowing it to function in harsh environments.
The FleXYZ™ design allows for flexible alignment in all three axes during PCB assembly, easing alignment challenges.
This model utilizes the Tiger Buy™ contact system, which ensures performance consistency.
The contacts are made from bronze and are plated with gold for enhanced conductivity and corrosion resistance.
This product is manufactured in the United States, adhering to stringent quality and reliability benchmarks.
It supports surface mount installation, which simplifies the process of attaching it to printed circuit boards.
It is ideal for use in industrial, manufacturing, laboratory, and electronic equipment assembly applications.
