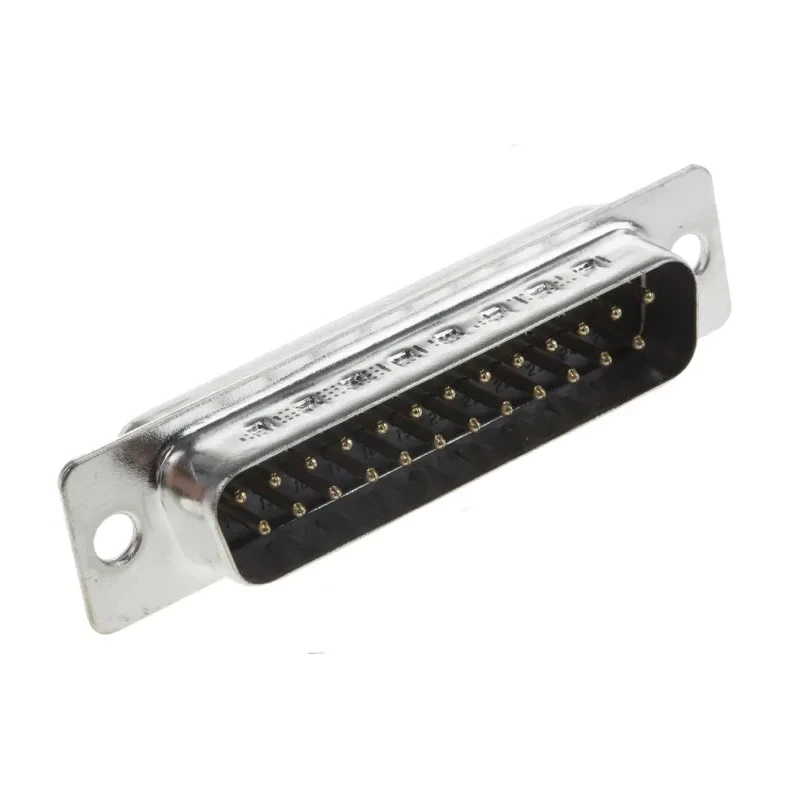

Amphenol Communications Solutions SD 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male L717SDB25P

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions SD 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male L717SDB25P

Name: Amphenol Communications Solutions SD 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male L717SDB25P
Brand: Amphenol Communications Solutions
SKU: 126776
Price: 1.94 USD
Availability: InStock



Category D-Sub Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	5A
Model	L717SDB25P
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Series	SD
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.76mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Male
Connector Gender	Male
Connector Type D	D-Sub
D-Sub Shell Size	B
ITT Cannon ORIGINAL D 25 Way Straight Panel Mount D-Sub Connector MaleBrand	ITT Cannon

Key Features

This connector features 25 contacts rated for 5A current capacity.
The pitch between contacts is 2.76 mm, suitable for precise electrical connections.
Constructed with a steel housing and brass contacts plated in gold for durability and corrosion resistance.
Operates reliably between -55°C and 105°C temperature range.
Designed for solder termination and panel mounting with a male connector gender.
The connector shell follows the 'B' size standard in the SD series.
Suitable for applications requiring robust D-Sub connections in electronic and power equipment.

Product Description

Amphenol Communications Solutions L717SDB25P is a 25 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male that delivers reliable and durable connectivity solutions for industrial electronic and power applications. This connector features a 2.76 mm pitch, accommodating 25 contacts designed to carry currents up to 5A at voltages up to 250V. Its construction includes a robust steel housing to provide mechanical strength and long-term usage performance.

The brass contacts are plated with gold to ensure optimal conductivity and corrosion resistance, making it suitable for demanding environments. It operates efficiently within a temperature range of -55°C to 105°C, ensuring stable performance in extreme conditions. The connector is designed for solder termination and secure panel mounting with a male connector gender, making installation straightforward.

This connector forms part of the SD series, with a D-Sub shell size designated as 'B', which complies with common industrial standards for such components. It is ideal for use in electronic components, power connectors, and computing equipment where robust and dependable connections are required.

Its panel mount orientation and straight configuration facilitate easy integration into existing panel layouts, supporting effective connectivity for control systems, instrumentation, and communication devices in industrial, manufacturing, and commercial settings.

Features 25 contacts rated for a 5A current. Offers a 2.76 mm pitch for precise contact spacing. Steel housing provides mechanical protection and durability. Gold-plated brass contacts ensure high conductivity and corrosion resistance.

Supports operation in temperatures ranging from -55° C to 105° C. Designed for solder termination and panel mount installation. Rated for voltages up to 250V suitable for industrial use. Includes a male connector with a straight orientation for ease of use.

Choose Amphenol Communications Solutions connectors for dependable and standardized D-Sub connectivity in demanding power and electronic environments. Explore more connectors and related products in the EnvMart Electronics & Electricals category for optimized industrial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector features 25 contacts rated for a current capacity of 5A.

It is rated for voltages up to 250V, making it suitable for industrial applications.

The pitch between contacts is 2.76 mm, allowing for precise electrical connections.

The connector has a steel housing and brass contacts plated in gold for optimal conductivity and corrosion resistance.

It operates reliably within a temperature range of -55°C to 105°C.

It is designed for solder termination and panel mounting, featuring a male connector gender.

The connector shell follows the 'B' size standard in the SD series.

It is ideal for use in electronic components, power connectors, and computing equipment requiring robust D-Sub connections.

This model features a straight orientation for ease of integration into panel layouts.

The connector has a male gender for both the contacts and the connector itself.

The country of origin for this connector is China.

It is suitable for demanding environments in industrial, manufacturing, and commercial settings, particularly for control systems and communication devices.
