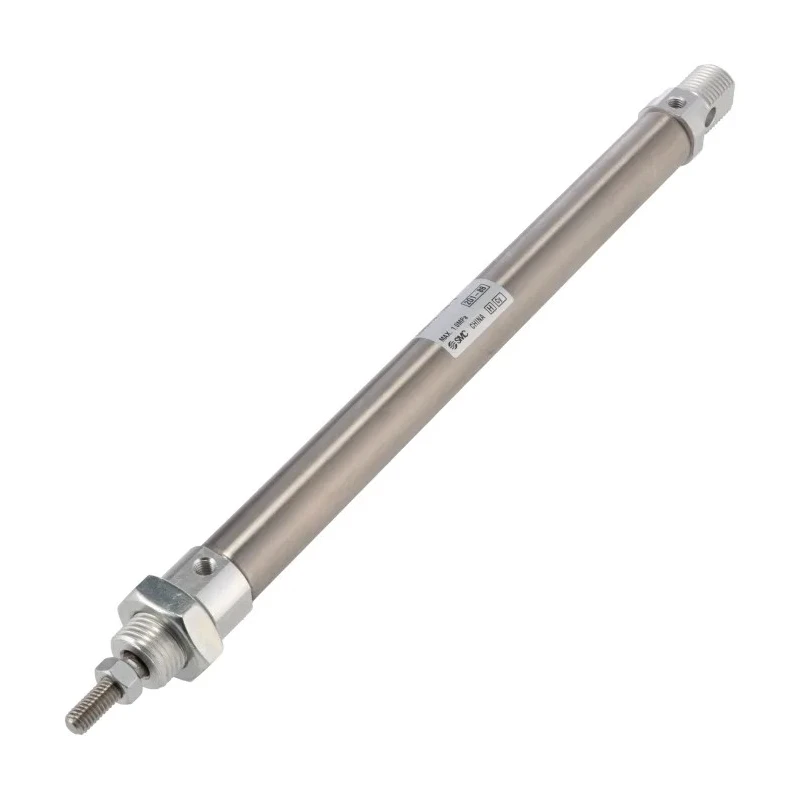

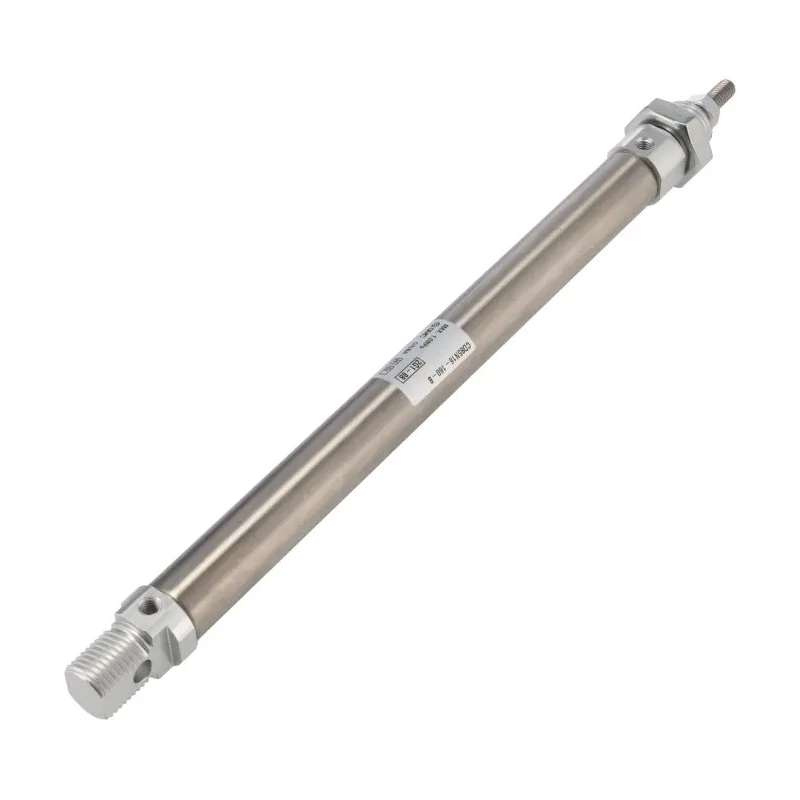

SMC 160 mm Pneumatic Piston Rod Cylinder CD85 Series Double Acting Aluminium Alloy Body M6 Thread
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Length | 271mm |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | +60°C |
| Stroke Length | 160mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M6 |
| RS PRO 160 mm Roundline Cylinder -RS Stock No. | 176-1602Brand: RS PRO |
Key Features
- The aluminium alloy body offers corrosion resistance and lightweight construction.
- Double acting action delivers controlled push and pull movement for precise positioning.
- Rubber bumper cushioning reduces impact stress, extending cylinder service life.
- Clevis mount facilitates easy pivoting attachment and alignment to mechanical linkages.
- Single male piston rod with M6 metric thread supports secure fitting and mechanical connections.
- Maximum piston speed of 1500 mm/s enables high-speed cycling in production environments.
- Rated for operation up to +60°C suitable for a range of industrial settings.
- ISO 6432-compliant bore standard provides interchangeability with other pneumatic cylinders.
Product Description
SMC CD85N16-160-B is a high-quality pneumatic piston rod cylinder designed for industrial automation requiring reliable linear actuation with a 160 mm stroke length and 271 mm overall length.
Featuring a double acting cylinder design, it converts compressed air to push and pull motion, suitable for pick-and-place operations, valve actuation, and compact gripping fixtures in electronics manufacturing.
The body is constructed from durable aluminium alloy, providing a lightweight yet robust solution that reduces system weight and improves mechanical efficiency. The cylinder includes a clevis mount allowing easy pivoting attachment and precise alignment to other components or brackets, enhancing integration flexibility.
Integral rubber bumpers cushion the piston stroke ends to absorb impact energy, minimizing wear and extending the overall service life of the cylinder. The piston rod is a single male rod with an M6 metric thread enabling secure connection with standard mechanical fittings and clevis pins.
The cylinder is designed for maximum piston speed of 1500 mm/s, supporting fast cycling required in high productivity lines. It can operate safely at temperatures up to +60°C, ensuring durability in elevated temperature environments.
Conformance to ISO 6432 bore standards ensures interchangeability and ease of replacement within pneumatic systems.
Typical applications include use in automated assembly lines, valve actuation in pneumatic control circuits, slide actuation in testing rigs, and lightweight transfer mechanisms in material handling systems.
This pneumatic piston rod cylinder from SMC is an ideal choice for industrial, manufacturing, and laboratory automation tasks where precision linear motion and reliability are critical.
Explore the SMC range in the Pneumatic Piston Rod Cylinder category for comprehensive pneumatic automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 160 mm, allowing for effective linear actuation in various applications.
It is rated for operation at temperatures up to +60°C, making it suitable for a range of industrial environments.
This unit features a double acting action, which enables controlled push and pull movement for precise positioning.
The body is constructed from aluminium alloy, providing a lightweight and corrosion-resistant solution.
The maximum piston speed is 1500 mm/s, allowing for high-speed cycling in production settings.
It features a single male piston rod with an M6 metric thread, which supports secure fitting and mechanical connections.
This model includes rubber bumpers that cushion the piston stroke ends, reducing impact stress and extending service life.
The overall length of this unit is 271 mm, which is important for installation considerations.
It utilizes a clevis mount, facilitating easy pivoting attachment and alignment to mechanical linkages.
It conforms to ISO 6432 bore standards, ensuring interchangeability with other pneumatic cylinders.
Typical applications include automated assembly lines, valve actuation, and lightweight transfer mechanisms in material handling systems.
The clevis mount and lightweight aluminium alloy body enhance integration flexibility with other components or brackets.
