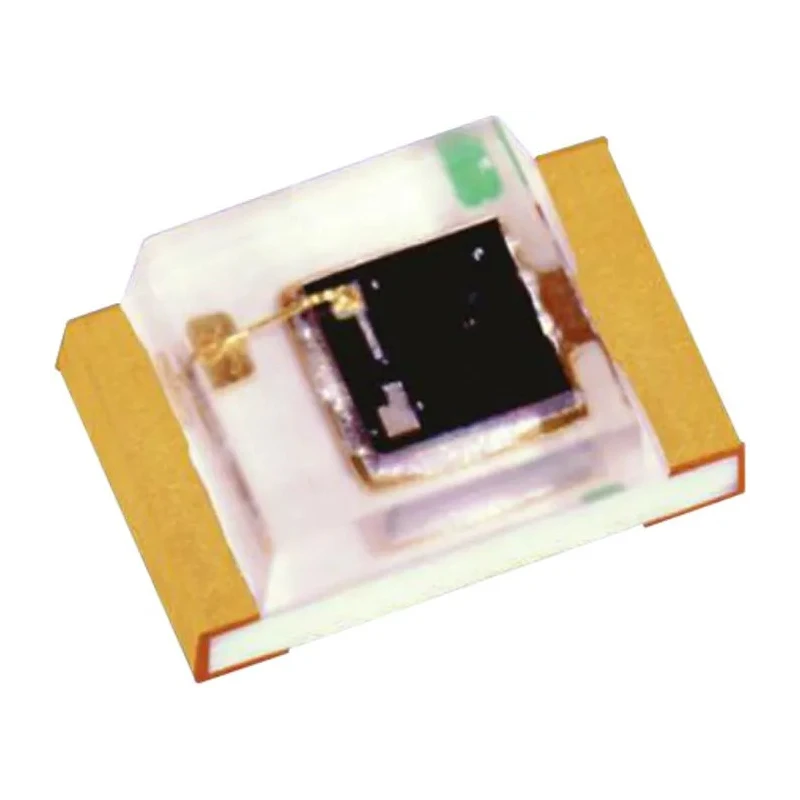

ams OSRAM SFH 3710-3/4 120 ° Infrared, Ultraviolet, Visible Light Phototransistor Surface Mount 2-Pin Package

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM SFH 3710-3/4 120 ° Infrared, Ultraviolet, Visible Light Phototransistor Surface Mount 2-Pin Package

Name: ams OSRAM SFH 3710-3/4 120 ° Infrared, Ultraviolet, Visible Light Phototransistor Surface Mount 2-Pin Package
Brand: ams OSRAM
SKU: 202123
Price: 0.77 USD
Availability: InStock



Category Phototransistor Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Height	0.9mm
Length	2.1mm
Model	SFH 3710-3/4
Packaging	Tape & Reel
Width	0.75mm
Mount Type	Surface
Series	SFH 3710
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	JEDEC J-STD-020D.01
Number of Pins	2
Peak Wavelength	570nm
Spectrums Detected	Infrared, Ultraviolet, Visible Light
Angle of Half Sensitivity	120 °
Collector Current	20mA
Maximum Light Current	570μA
Maximum Dark Current	3nA
Collector Emitter Voltage	5.5V
Emitter Collector Voltage	0.5V

Key Features

Equipped with a peak wavelength of 570 nm for precise light sensing.
Compact surface mount design with 2 pins suitable for PCB mounting.
Maximum collector current and light current rated at 20mA and 570μA respectively.
Wide operating temperature range from -40°C to 85°C enabling use in varied environments.
Available in tape and reel packaging convenient for automated assembly processes.
Complies with JEDEC J-STD-020D.01 standard ensuring reliable quality.
Low dark current of 3nA ideal for sensitive detection applications.
Emitter collector voltage of 0.5V and collector emitter voltage of 5.5V for electrical compatibility.

Product Description

ams OSRAM SFH 3710-3/4 phototransistor is an advanced ambient light sensor designed for detecting infrared, ultraviolet, and visible light spectrums. It features a surface mount 2-pin package, making it highly suitable for integration into compact electronic devices and PCB assembly lines. The phototransistor has a wide angle of half sensitivity of 120 °, allowing it to capture light effectively from a broad field of view.

With a peak wavelength at 570 nm, the device is well adapted to the human eye's light sensitivity spectrum. It boasts a maximum collector current of 20mA and a maximum light current of 570μA, allowing reliable conversion of detected light into electrical signals with minimal dark current noise of only 3nA.

Designed to operate in a challenging temperature range from -40°C to 85°C, this phototransistor is suited for industrial, automotive, and consumer electronics applications including ambient light detection, backlight dimming sensors, and exposure meters for varying lighting conditions both natural and artificial.

Detects infrared, ultraviolet, and visible light spectrums. Surface mount 2-pin package for compact electronic integration. Wide operating temperature range from -40°C to 85°C. Tape and reel packaging compatible with automated manufacturing.

Low dark current enhances sensitivity and signal accuracy. Compliant with JEDEC J-STD-020D.01 quality standard. Minimal physical dimensions enable use in space-constrained applications. Suitable for ambient light sensors, exposure meters, and backlight dimming sensors.

This product is ideal for use in industrial machines and instruments, electronic and electrical components applications including ambient light sensing, sensor circuits, and control systems. It offers practical performance for OEMs and system integrators requiring sensitive and reliable phototransistors with broad spectral detection.
