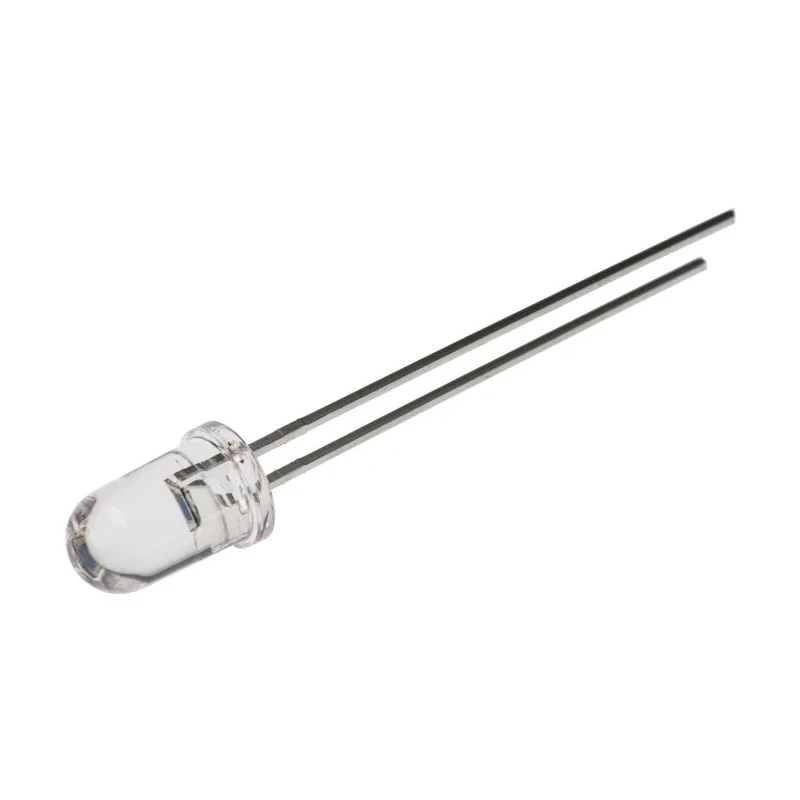

ams OSRAM Infrared Visible Light Photodiode T-1 3/4 Through Hole 2-Pin 10° Angle SFH 213

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Infrared Visible Light Photodiode T-1 3/4 Through Hole 2-Pin 10° Angle SFH 213

Name: ams OSRAM Infrared Visible Light Photodiode T-1 3/4 Through Hole 2-Pin 10° Angle SFH 213
Brand: ams OSRAM
SKU: 202122
Price: 0.67 USD
Availability: InStock



Category Photodiode Brand ams OSRAM Condition New

Specifications

Country of Origin	India
Brand	ams OSRAM
Height	9mm
Length	5.9mm
Model	SFH 213
Wavelength Range	400 to 1100 nm
Packaging	Tape & Reel
Width	5mm
Mount Type	Through Hole
Series	SFH
Short Circuit Current	71μA
Maximum Operating Temperature	85°C
Package Type	T-1 3/4
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	5nA
Open Circuit Voltage	350mV
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	0.005μs
Wavelength of Peak Sensitivity	850nm
Spectrums Detected	Infrared, Visible Light
Breakdown Voltage	20V
Minimum Wavelength Detected	400nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	10 °
Radiant sensitive area	1 x 1 mm²
IR T-1 PIN Photodiode 20°,SFH213Brand	OSRAM Opto Semiconductors

Key Features

Detects both infrared and visible light spectrums for versatile sensing.
Comes in a standard 5 mm clear plastic (T-1 3/4) through-hole package.
Features a radiant sensitive area of 1 x 1 mm² with a 10 ° angle of half sensitivity.
Operates over a wide wavelength range from 400 nm to 1100 nm with peak sensitivity at 850 nm.
Supports operating temperature range from -40°C to 85°C for harsh conditions.
Offers very fast rise and fall times of 0.005 μs for high-speed switching.
Has a breakdown voltage of 20 V and a short circuit current of 71 μA.
Includes a clear plastic package suitable for through-hole mounting.

Product Description

ams OSRAM SFH 213 is an infrared and visible light photodiode designed in a 5 mm clear plastic through-hole T-1 3/4 package with a 10 ° acceptance angle. The device offers a radiant sensitive area of 1 x 1 mm² and covers a wide spectral range from 400 nm to 1100 nm, with peak wavelength sensitivity at 850 nm. This photodiode features fast switching times of 0.005 μs for both rise and fall time, enabling high-speed photointerrupters and industrial electronics applications.

The SFH 213 is packaged in tape and reel format, suitable for automated insertion in manufacturing. It operates reliably over a temperature range from -40°C to 85°C, and its forward polarity design supports a breakdown voltage of 20 volts along with a short circuit current of 71 μA and a dark current of just 5 nA, ensuring precise detection in various lighting conditions.

This product is widely used in industrial electronics, control and drive circuits, and applications requiring high speed and accurate photodetection of both infrared and visible light. The through-hole mounting type facilitates easy installation on printed circuit boards in diverse environments.

The SFH 213 photodiode complies with RoHS environmental directives, confirming its environmentally friendly design. Detects both infrared and visible light spectrums. Standard 5 mm (T-1 3/4) through-hole clear plastic package.

10 ° angle of half sensitivity suitable for directional sensing. Radiant sensitive area of 1 x 1 mm² for effective light detection. Operating temperature range from -40°C to +85°C. Fast response time with 0.005 μs rise and fall times.

Breakdown voltage rated at 20 V for reliability. Short circuit current of 71 μA and dark current of 5 nA ensure sensitivity. Package supplied in tape and reel format for manufacturing efficiency. Compliant with RoHS standards for environmental safety.

This photodiode is ideal for use in industrial, electronic component, and optoelectronic systems, particularly where detection of infrared and visible light is required. The robust packaging and wide operating parameters ensure reliability in demanding applications. Browse other Photodiode products and components on EnvMart to enhance your design and manufacturing solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The SFH 213 photodiode operates over a wavelength range from 400 nm to 1100 nm, with peak sensitivity at 850 nm.

This model has an angle of half sensitivity of 10 °, making it suitable for directional sensing applications.

The dimensions of this photodiode are 5.9 mm in length, 5 mm in width, and 9 mm in height.

It can operate reliably at a maximum temperature of 85°C.

This photodiode is designed for through-hole mounting, facilitating easy installation on printed circuit boards.

The short circuit current for the SFH 213 is rated at 71 μA.

It is supplied in a tape and reel format, suitable for automated insertion in manufacturing processes.

The dark current for this model is specified at just 5 nA, ensuring high sensitivity in low-light conditions.

This photodiode has a breakdown voltage rated at 20 V, providing reliability in various applications.

It is widely used in industrial electronics, control and drive circuits, and applications requiring high-speed and accurate photodetection of both infrared and visible light.

The SFH 213 features very fast rise and fall times of 0.005 μs, enabling high-speed switching.

Yes, it complies with RoHS environmental directives, confirming its environmentally friendly design.
