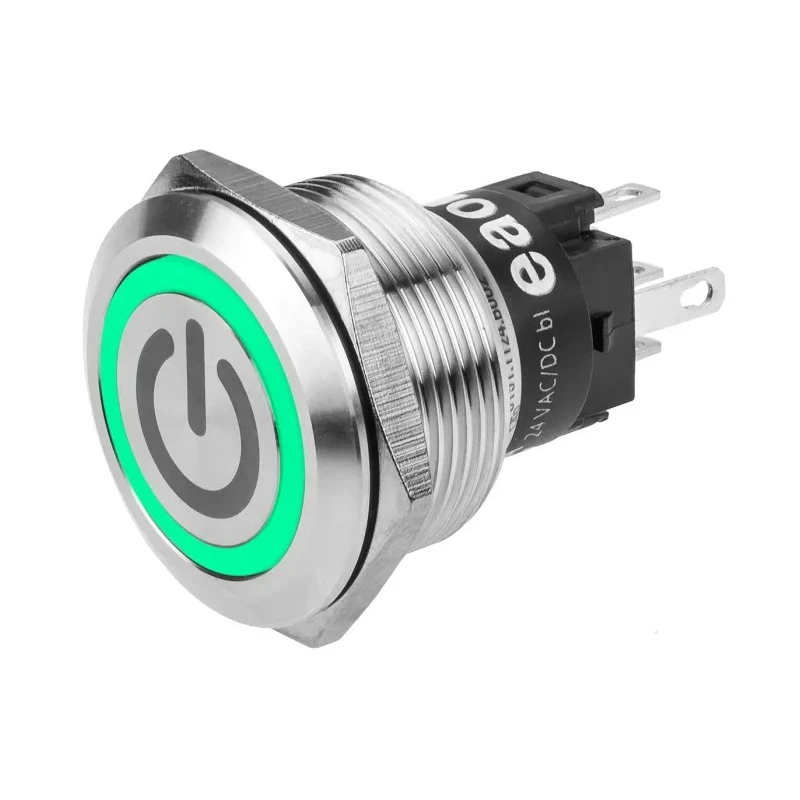

EAO Illuminated Momentary Push Button Switch Panel Mount SPDT Green LED IP65 IP67 22.3 mm Cutout 240 V dc 82-6151.1134.B002



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-6151.1134.B002
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Momentary
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Standby Symbol
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

Designed for high durability and vandal resistance with impact-resistant construction.
Gold-plated silver contacts ensure reliable low voltage and current switching.
IP65 and IP67 rated for protection against dust and water ingress.
Suitable for industrial, public, and medical equipment applications.
Operating temperature range from -30°C to 70°C enables use in diverse environments.
Compact size with a length of 35.5 mm for easy panel integration.
Provides excellent tactile feedback and over one million operational cycles.
Supports 240 V dc and 240 V ac contact voltages with 3 A contact current.

Product Description

EAO 82-6151.1134.B002 is a high-quality illuminated momentary push button switch designed for panel mounting with a precise 22.3 mm cutout. Its SPDT (Single Pole Double Throw) contact configuration makes it suitable for a variety of electrical control applications requiring dependable switching.

This switch features a green LED indicator for clear status visibility and is engineered with vandal-resistant and impact-resistant materials including stainless steel anodised aluminium or brass colors, ensuring robust performance in demanding environments.

Its IP65 and IP67 ingress protection ratings guarantee excellent resistance to dust and water, making it ideal for exposed public areas such as ticketing and vending machines, industrial machinery control, elevators, building management systems, access control, and medical equipment.

The mechanical design offers tactile feedback with a long service life exceeding one million operation cycles. It supports operating temperatures ranging from -30°C to 70°C allowing use in both cold and warm climates.

The switch also includes gold-plated silver contacts to enable low voltage and current switching with high reliability. A standby symbol is provided as the legend on the round actuator style for intuitive user interaction.

This compact device measures 35.5 mm in length and supports contact voltages of up to 240 V dc and 240 V ac with a contact current rating of 3 A. The switch complies with RoHS standards.

Designed for durability and impact resistance, suitable for vandal-prone environments. Gold-plated contacts provide reliable switching for low voltages and currents. IP65 and IP67 ratings ensure suitability for harsh industrial and public settings.

Over one million mechanical cycles assure long service life. Wide operating temperature range from -30°C to 70°C. Compact size for seamless panel integration with 22.3 mm cutout. Green LED illumination offers clear operational status indication.

Ideal for applications including public ticketing machines, industrial equipment, elevators, building controls, medical devices, and food industry. Explore the extensive range of Push Button Switches at EnvMart to find the perfect industrial solution for your electrical control needs.
