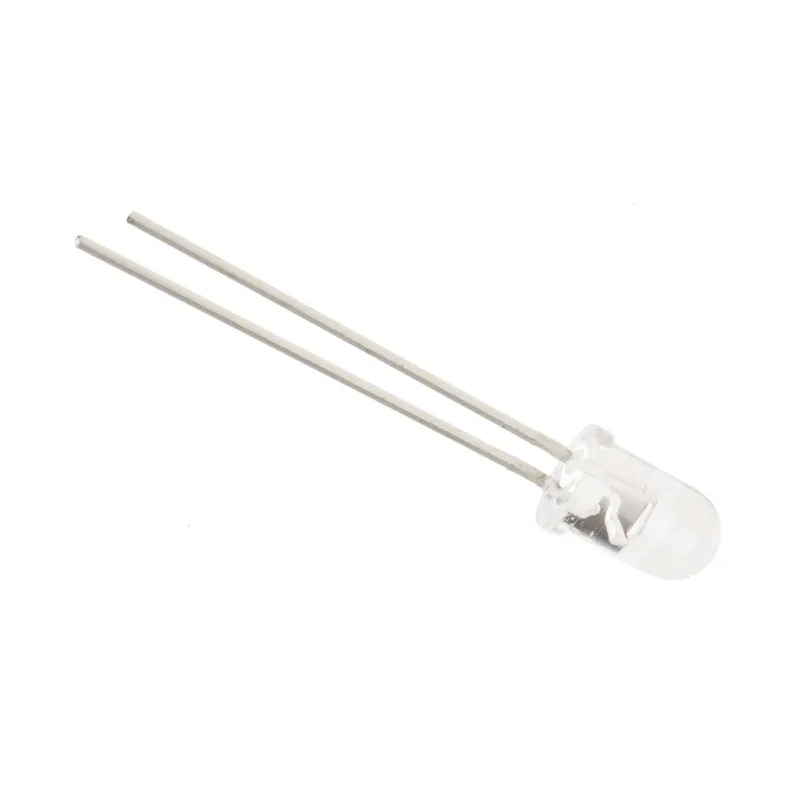

ams OSRAM Photodiode Visible Light and Infrared 20 ° Half Sensitivity Angle Through Hole T-1 3/4 SFH 203

ams OSRAM SFH 203 photodiode is a high-performance sensor designed to detect a broad range of visible light and infrared wavelengths from 400 nm to 1100 nm, with peak sensitivity at 850 nm. Packaged in a standard 5 mm (T-1 3/4) clear plastic through-hole package, this device is ideal for applications requiring reliable, precise light detection.

The photodiode operates efficiently within a temperature range of -40°C to 85°C, supporting use in various industrial and electronic environments such as control and drive circuits, high-speed photointerrupters, and industrial electronics. Its fast rise and fall times of 0.005 µs enable rapid signal response critical for high-speed sensing.

Featuring a radiant sensitive area of 1 x 1 mm² and a narrow 20° half sensitivity angle, the SFH 203 provides focused light detection with minimal ambient interference. The device has a dark current of 5 nA and a short circuit current of 80 µA, allowing precise measurement with low noise.

The T-1 3/4 through-hole mount package includes a 5 mm diameter clear plastic housing ensuring easy integration into PCB designs. Forward polarity and a breakdown voltage of 20 V provide robust electrical characteristics suitable for various electronic applications.

Manufactured in compliance with RoHS, the SFH 203 photodiode meets environmental safety requirements. Its versatile spectral response makes it suitable for industrial, commercial, and laboratory applications including optoelectronics, sensing, and control systems.

This photodiode features a spectral sensitivity range from 400 nm to 1100 nm. The peak sensitivity occurs at a wavelength of 850 nm. It uses a 5 mm diameter clear plastic package suitable for through-hole mounting. Operating temperature ranges from -40°C to 85°C, ensuring suitability for diverse environments.

It delivers a short circuit current of 80 µA and has a dark current of only 5 nA. The device's rise and fall times are both approximately 0.005 µs, enabling high-speed response. Forward polarity and breakdown voltage of 20 V allow reliable operation in control and sensing circuits.

It features a radiant sensitive area of 1 x 1 mm², providing effective light detection. Compliant with RoHS standards for environmental safety. Explore the ams OSRAM Photodiode range and other electronics components on EnvMart for your industrial, laboratory, and electronic design needs.
