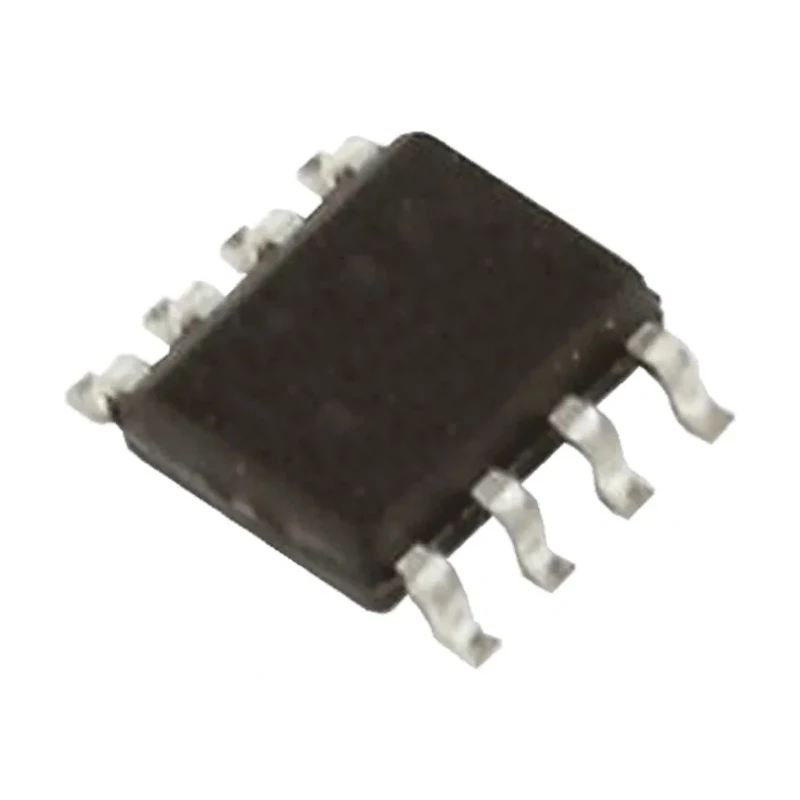

Nisshinbo Micro Devices Operational Amplifier 1.3 MHz 15V 8-Pin SSOP NJM3414AV-TE1

Nisshinbo Micro Devices NJM3414AV-TE1 is a dual-channel operational amplifier designed for reliable performance in electronic circuits requiring moderate bandwidth and low supply voltages up to 15V. Packaged in a compact 8-pin SSOP surface mount form factor, this amplifier integrates a gain bandwidth product of 1.3 MHz suitable for analog signal amplification applications.

This operational amplifier features input bias currents as low as 500 nA and an input offset voltage of 5 mV, enabling accurate signal processing with minimal distortion. Its slew rate of 1 V/μs allows for quick response to rapid changes in input signal, making it suitable for audio, instrumentation, and general electronic applications.

Its electrical characteristics include a minimum supply voltage of 5V and a maximum of 15V, allowing compatibility with a variety of power sources. The device operates within a temperature range of -20°C to 75°C, supporting industrial and commercial environment requirements.

The package dimensions measure 3.5 mm in length, 4.4 mm in width, and 1.15 mm in height, making it ideal for space-constrained printed circuit boards using surface mount technology.

The NJM3414AV-TE1 boasts an output current capacity of 70 mA, enabling it to drive moderate loads efficiently. Automotive standards are not applicable for this product, and no specific approvals or certifications are indicated.

This operational amplifier is commonly used in industrial electronics, laboratory instrumentation, consumer electronics, and embedded systems for signal conditioning and amplification tasks. Its surface mount package facilitates automated assembly and high-density PCB layouts.

Package contents include the NJM3414AV-TE1 chip supplied typically on reels, suitable for direct machine insertion enhancing production throughput. Dual-channel 8-pin SSOP operational amplifier. 1.3 MHz gain bandwidth product.

Input bias current of 500 nA for precision. Supply voltage range from 5V to 15V. Slew rate of 1 V/μs supports fast signals. Compact dimensions for surface mount assembly. Operating temperature -20°C to 75°C. 70 mA output current capability.

Input offset voltage and current ensure stable operation. Package supplied on reel for manufacturing. Explore a wide range of Operational Amplifiers and semiconductor devices in EnvMart’s Electronics & Electricals category for your industrial and design needs.
