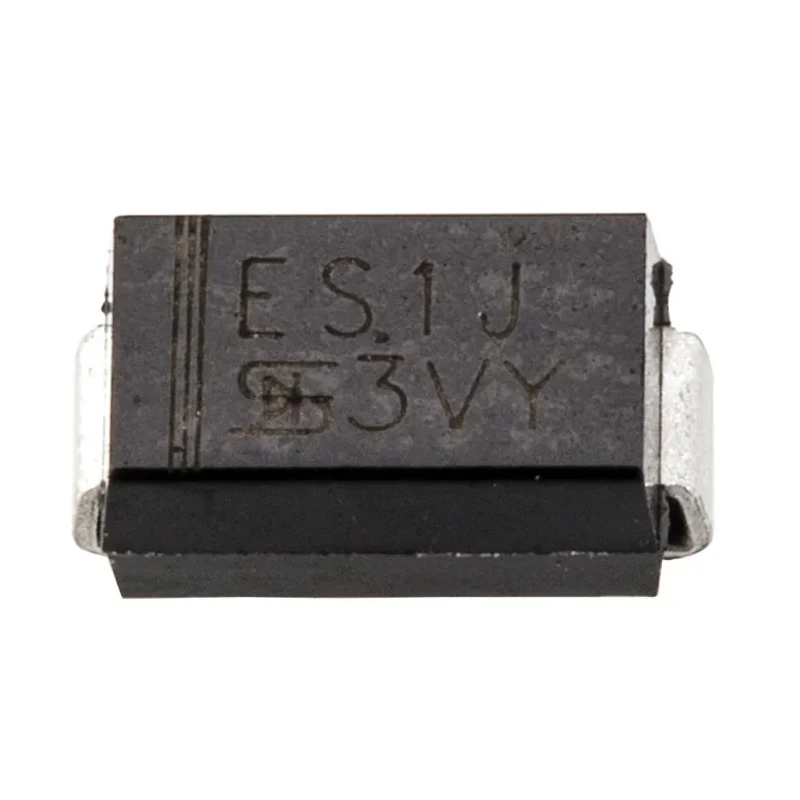

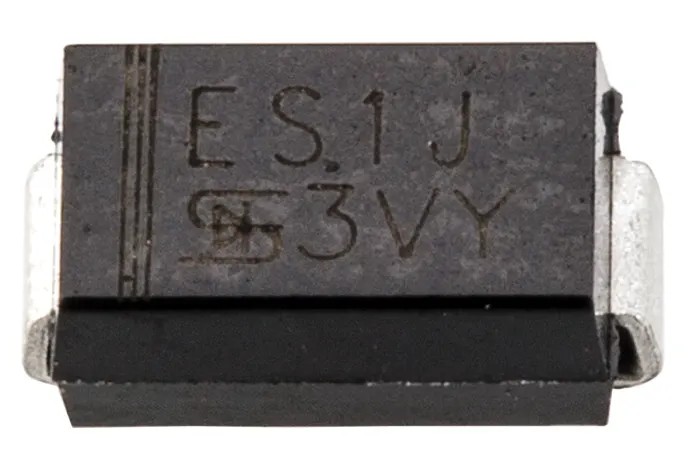

Taiwan Semiconductor 600 V 1 A Surface Mount Switching Rectifier Diode DO-214AC ES1J R2

Taiwan Semiconductor ES1J R2 is a switching rectifier diode designed for high-performance electronic applications requiring 600 V peak reverse voltage and 1 A continuous forward current ratings. Packaged in a surface mount DO-214AC package, it offers high reliability in compact form factor.

This single diode configuration supports fast switching operations with a peak reverse recovery time of 35 nanoseconds, making it suited for industrial and power electronics circuits.

Key electrical parameters include a maximum forward voltage of 1.7 V and a peak surge current of 30 A, ensuring robust transient handling capability. The diode operates in a wide temperature range from -55°C up to 150°C for dependable performance under harsh environmental conditions.

Its small physical footprint with dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height allows for efficient PCB layout. The product is manufactured in China and maintained in new condition.

Maximum continuous forward current of 1 A. Peak reverse repetitive voltage of 600 V. Surface mount DO-214AC compact package. Single diode configuration ideal for switching circuits. Maximum forward voltage drop of 1.7 V.

High surge current rating for handling peak loads. Wide operating temperature from -55°C to 150°C. Fast peak reverse recovery time of 35 ns. Compact dimensions suitable for dense electronics assemblies. Manufactured in China and supplied new.

This diode is suitable for applications in industrial electronics, power management systems, telecommunications, and electronic assemblies requiring efficient rectification and switching capabilities. It ensures reliable switching performance in demanding environments.
