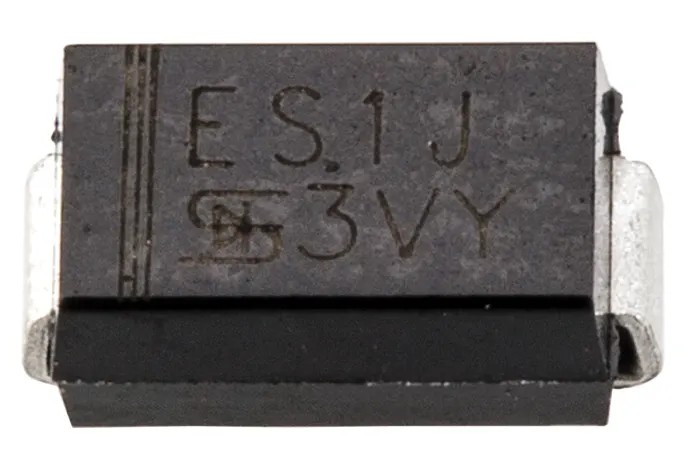

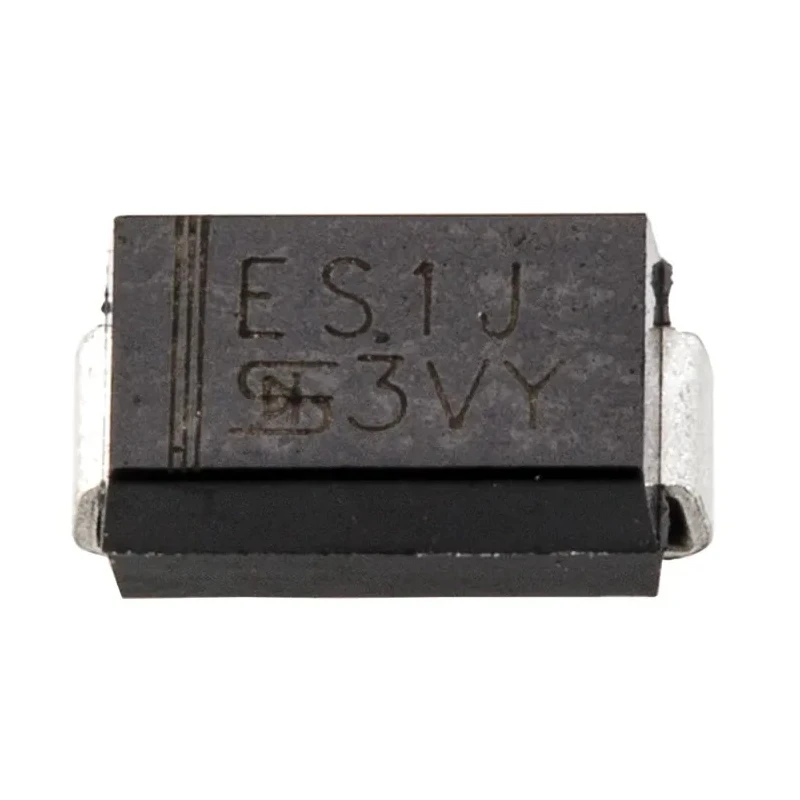

Taiwan Semiconductor 600 V 1 A Surface Mount Switching Diode DO-214AC ES1J R2

Taiwan Semiconductor ES1J R2 is a high-performance switching diode designed with a surface mount DO-214AC package. Rated for a continuous forward current of 1 A and a peak reverse repetitive voltage of 600 V, this diode is ideal for applications requiring efficient rectification and rapid switching performance.

The diode features a maximum forward voltage of 1.7 V, contributing to reduced power loss and enhanced efficiency in power electronics circuits. With a peak reverse recovery time of only 35 ns, it supports high-speed switching requirements commonly found in industrial, consumer electronics, automotive, and power supply systems.

Its robust thermal operating range from -55°C to 150°C ensures reliable performance under harsh environmental conditions. The compact physical dimensions (4.6 mm length, 2.83 mm width, and 2.3 mm height) and the 2-pin configuration facilitate easy integration into printed circuit boards using surface mount technology.

The diode is suitable for various industrial uses including power conversion, switching regulators, and electronic protection circuits. Its ability to handle a peak non-repetitive forward surge current of 30 A provides resilience against transient overstress events during operation.

Maximum continuous forward current of 1 A ensures stable conduction. Peak reverse repetitive voltage rating of 600 V supports high voltage environments. Low forward voltage drop increases efficiency of electronic circuits.

Fast peak reverse recovery time of 35 ns enables high-speed switching. Wide operating temperature range from -55°C to 150°C for durability. Compact dimensions suitable for space-constrained designs. 2-pin surface mount DO-214AC package for reliable soldering and mounting.

Single diode configuration optimized for switching applications. Peak non-repetitive forward surge current of 30 A withstands surges and transients.

This Taiwan Semiconductor diode is a reliable choice for semiconductor applications in electronics, power management, automotive, and industrial machinery. Browse the Semiconductor category on EnvMart for more switching diodes and related components.
