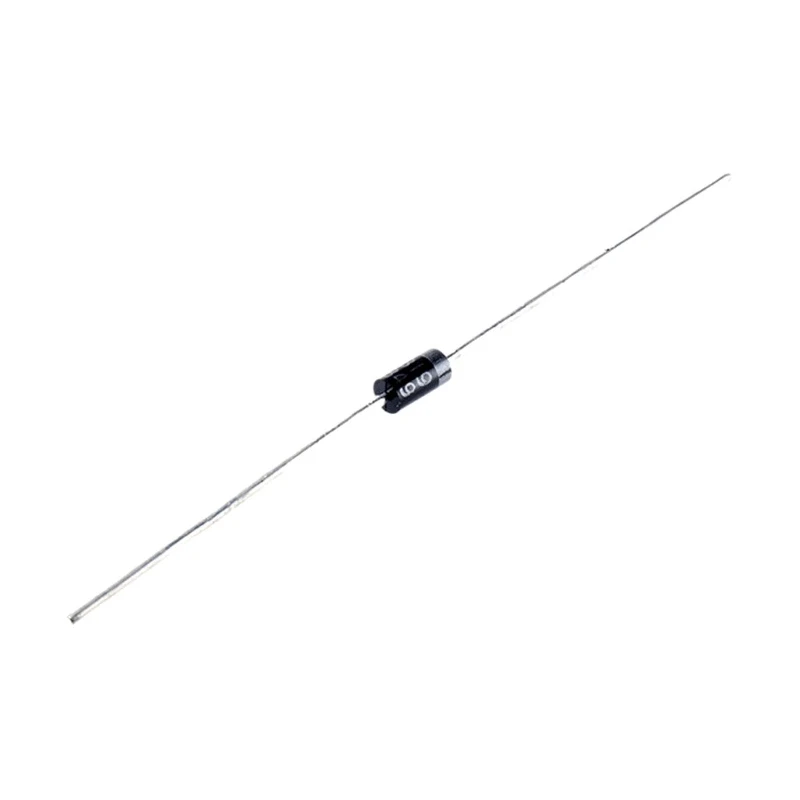

Taiwan Semiconductor 40 V 1 A Through Hole Schottky Barrier Rectifier Diode DO-41 Package 1N5819

Taiwan Semiconductor 1N5819 Schottky Barrier Rectifier Diode is a discrete semiconductor device suitable for use in electronic and electrical applications that require efficient rectification with low forward voltage loss.

This diode comes in a DO-41 package which supports through hole mounting, providing an easy integration into various circuit designs. With a maximum continuous forward current rating of 1 A and peak surge current capability of 30 A, it is able to handle transient high current demands efficiently.

The diode’s peak reverse repetitive voltage rating of 40 V ensures safe blocking of reverse voltages in circuits, while a low forward voltage drop of 900 mV reduces power dissipation and improves efficiency.

The operating temperature range from -65°C up to 125°C makes it suitable for industrial, commercial, and laboratory environments where varying temperature conditions may apply. This diode features a two-pin single diode configuration ideal for rectification purposes.

Its compact dimensions (length 5.2 mm, diameter 2.7 mm) make it suitable for space-constrained circuit layouts. Low power loss and high current capability support its use in power supplies and converters. Absence of automotive and other certifications indicates usage primarily in general electronics rather than automotive sectors.

The product is labeled as new and made with reliable semiconductor manufacturing standards in Taiwan.

This Taiwan Semiconductor 1N5819 diode is extensively used in electronic components, power semiconductor applications, and discrete semiconductor assemblies in various industries including construction, manufacturing, and HVAC systems.
