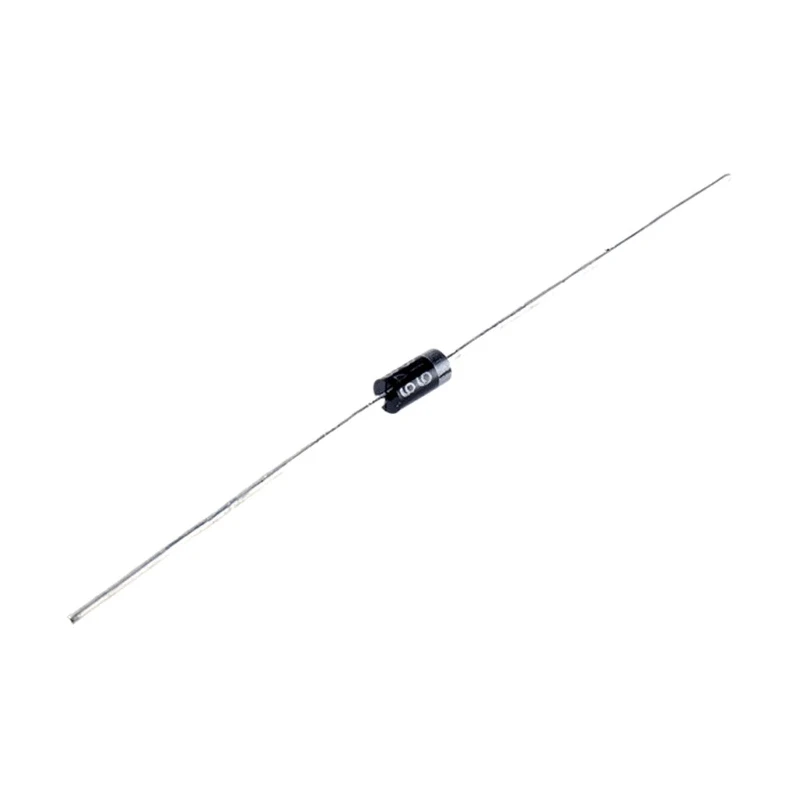

Taiwan Semiconductor 40 V 1 A Through Hole Rectifier Diode DO-41 1N5819

Taiwan Semiconductor 1N5819 Rectifier Diode DO-41 is a reliable Schottky barrier diode designed for low power loss and high current capability applications. With a maximum continuous forward current of 1A and peak reverse repetitive voltage of 40 V, it suits a variety of electronics circuits requiring efficient rectification.

The diode's DO-41 through-hole package supports easy PCB mounting and stable mechanical installation. It features a low forward voltage drop (maximum 900 mV) that reduces power dissipation and increases efficiency in power supply and switching applications.

Operating within a wide temperature range from -65°C to 125°C, this diode ensures robust performance in harsh industrial and commercial environments. Its compact size, with 5.2 mm length and 2.7 mm diameter, facilitates use in space-constrained electronic assemblies.

With a peak non-repetitive forward surge current capacity of 30A, the 1N5819 diode is suitable for transient surge handling ensuring durability. The single diode and 2-pin configuration simplify circuit integration and design.

Designed as a Schottky barrier diode with low forward voltage drop. Package type DO-41 for through-hole mounting applications. Handles peak surge currents up to 30 A effectively. Operates reliably in temperatures ranging from -65°C to 125°C.

Compact dimensions approximately 5.2mm length and 2.7mm diameter. Supports high current capability with low leakage and high efficiency. Ideal for power and switching applications in electronics circuits. Single diode configuration with standard 2-pin design.

This diode is commonly used in industrial electronics, power supplies, rectifiers, and switching applications within HVAC, manufacturing, laboratory equipment, and other commercial electronic systems. Its high efficiency and rugged construction ensure long service life and reduced energy losses.
