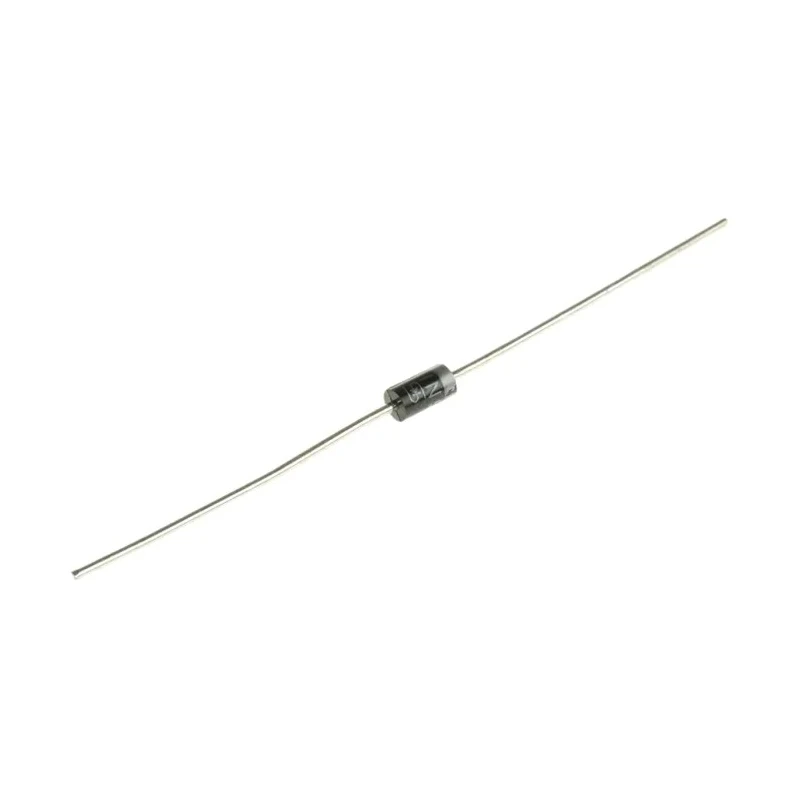

Taiwan Semiconductor 20 V 1 A Schottky Barrier Rectifier Diode Through Hole DO-41 1N5817

Taiwan Semiconductor 1N5817 is a high quality Schottky barrier rectifier diode designed for use in electronic circuits requiring efficient rectification and low power loss. This diode is housed in a DO-41 through hole package that offers ease of mounting and robust mechanical strength. Rated for a continuous forward current of 1 ampere and a peak reverse repetitive voltage of 20 volts, it is suitable for low voltage power applications.

Featuring a maximum forward voltage drop of 750 millivolts, the 1N5817 diode effectively reduces conduction losses, making it ideal for power-sensitive designs in industrial, consumer electronics, and automotive control systems. Its peak non-repetitive forward surge current of 30 amperes provides protection against voltage spikes and transient events.

The device operates reliably within a wide temperature range from -65°C to 125°C, supporting demanding operating conditions in manufacturing, HVAC control, power supplies, and industrial machinery environments. Its compact DO-41 package with dimensions of 5.2 mm length and 2.7 mm diameter facilitates efficient PCB space utilization.

Additional product benefits include its single diode configuration ensuring straightforward implementation and a low peak reverse current of 1 mA minimizing leakage losses. While this product does not carry specific certifications or automotives standards, it complies with standard semiconductor quality levels.

Use Taiwan Semiconductor 1N5817 Schottky Diode for reliable rectification in power conversion, voltage clamping, and circuit protection applications. The diode is designed for through-hole PCB mounting to support ease of assembly and robust electrical connections.

This rectifier diode supports a maximum continuous forward current of 1 ampere. It operates with a peak reverse repetitive voltage rating of 20 volts. The device features a low forward voltage drop up to 750 millivolts to ensure energy efficiency.

Constructed with a single diode configuration and 2-pin DO-41 package for through-hole mounting. Peak non-repetitive forward surge current capability of 30 amperes for short transient conditions. Operating temperature range from -65°C to 125°C ensures reliable performance in varied environments.

Compact dimensions with 5.2 mm length and 2.7 mm diameter suitable for tight PCB layouts. Explore our extensive range of semiconductor components at EnvMart for your industrial and commercial electronics engineering needs.
