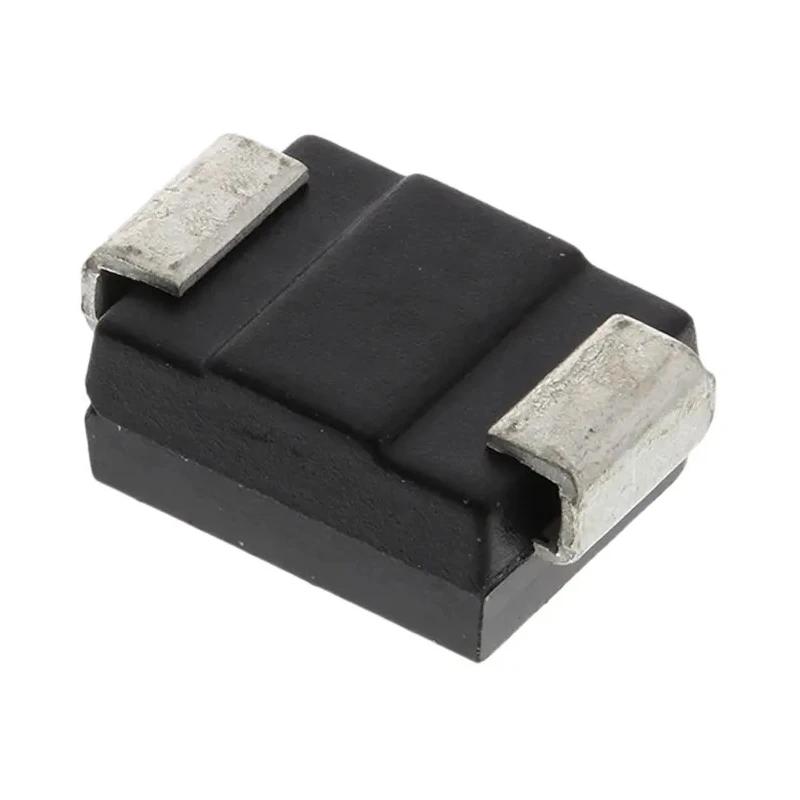

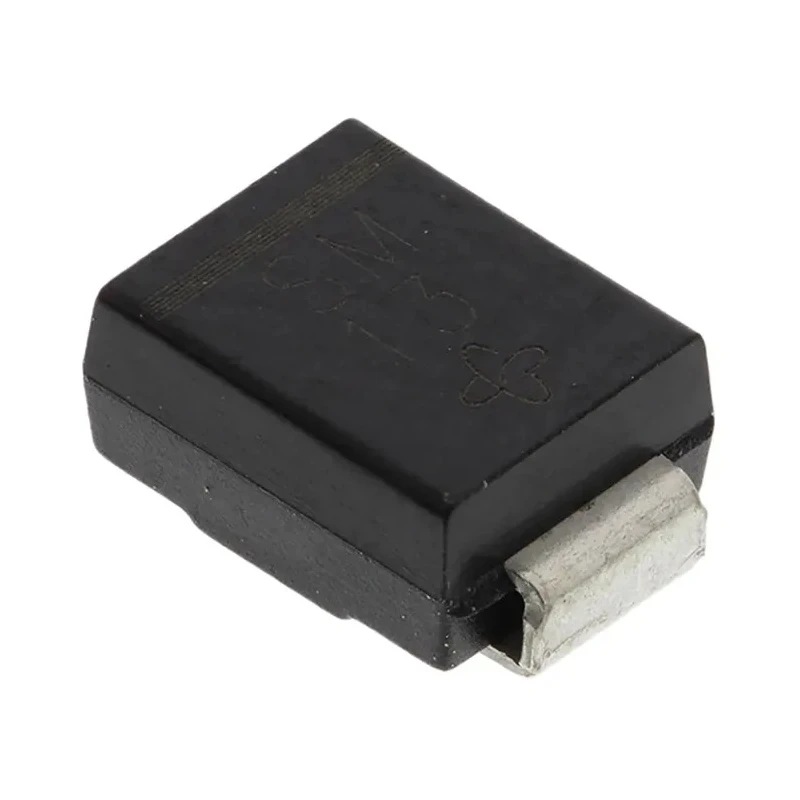

Vishay General Purpose 1000 V 1.5 A Surface Mount DO-214AA 2-Pin Diode S2M-E3/52T

Vishay S2M-E3/52T general purpose diode is designed for use in power electronics requiring reliable rectification at peak reverse voltage ratings up to 1000 V and forward currents up to 1.5 A. Packaged in a surface mount DO-214AA (SMB) format, this 2-pin diode integrates efficiently into compact PCB designs, ensuring minimal footprint.

This device features a single diode configuration optimized as a standard recovery rectifier. Its low maximum forward voltage of 1.15 V, combined with a fast peak reverse recovery time of 2 μs, makes it highly efficient for switching applications, reducing power loss and thermal buildup.

The diode tolerates a broad operational temperature range from -55°C to 150°C and supports a peak non-repetitive forward surge current of 50 A, ensuring robust performance under transient overload conditions.

Physical dimensions for the component are 4.57 mm in length, 3.94 mm width, and 2.24 mm height. The compact size makes it suitable for high-density electronic assemblies. Compliance with standards such as RoHS, JESD 201 Class 1A and 2, J-STD-002, and UL 94 V-0 confirms its suitability for industrial and commercial use.

Additionally, the S2M-E3/52T meets automotive standard AEC-Q101, making it ideal for automotive electronics requiring stringent quality and reliability.

Applications for this diode span across electronic circuit protection, power conversion, and rectification circuits commonly used in industrial, automotive, and consumer electronics manufacturing.

This diode features a single diode configuration and a general-purpose rectifier type. Surface mount type with DO-214AA (SMB) package ensures easy PCB integration. Maximum continuous forward current of 1.5 A with peak non-repetitive surge current rating of 50 A.

Low forward voltage drop of 1.15 V and fast recovery time of 2 μs optimize efficiency. Wide operating temperature range from -55°C to 150°C for versatile use. Package dimensions are length 4.57 mm, width 3.94 mm, and height 2.24 mm.

Complies with industry standards including RoHS, JESD 201 Class 1A and Class 2, J-STD-002, and UL 94 V-0. Automotive grade certified to AEC-Q101 for reliable performance in demanding applications. Explore the Vishay product range on EnvMart for high-quality discrete semiconductors and power electronic components.
