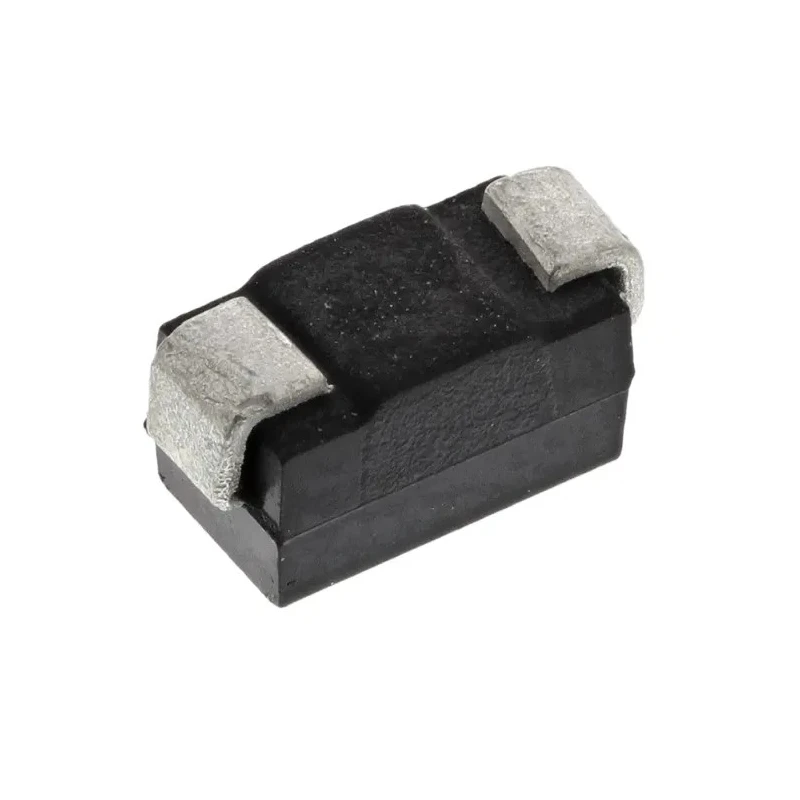

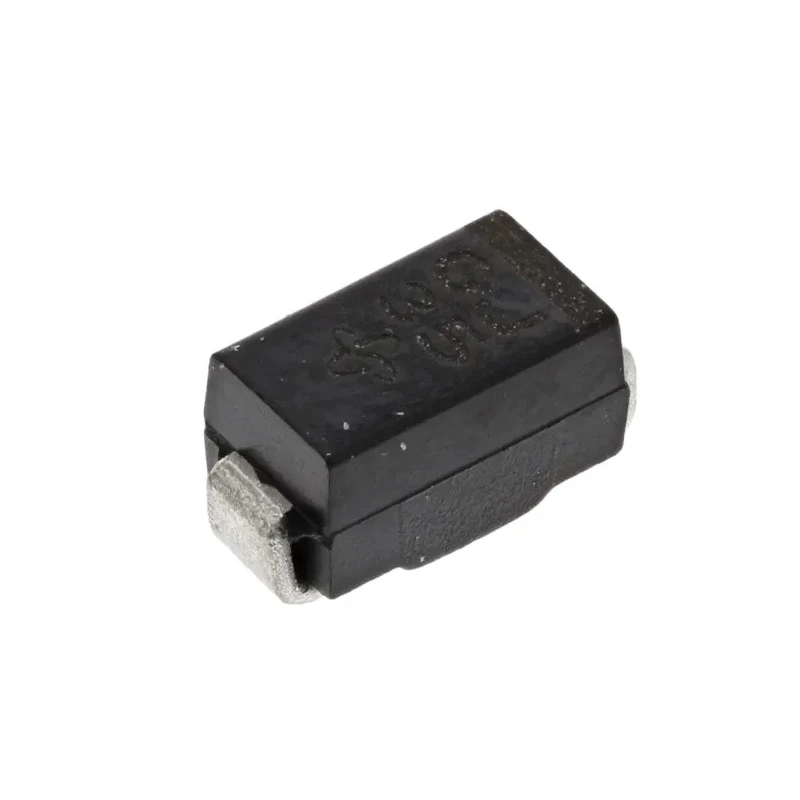

Vishay General Purpose Surface Mount Diode 600V 1A DO-214BA GF1J-E3/67A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | GF1J-E3/67A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | GF1 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, J-STD-002, UL 94 V-0 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 2μs |
Key Features
- The diode offers high efficiency with a maximum forward voltage of 1.1V.
- Features a peak reverse repetitive voltage of 600V suitable for general purpose rectification.
- Compact surface mount DO-214BA package measuring 4.75mm length and 2.9mm width.
- Operates reliably between -65°C and 175°C for industrial and automotive applications.
- Peak reverse current is very low at 5μA ensuring minimal leakage.
- Designed to comply with automotive standard AEC-Q101 for high reliability.
- Equipped with fast peak reverse recovery time of 2μs enhancing switching performance.
- Constructed according to international standards including RoHS and JESD to ensure quality and safety.
Product Description
Vishay GF1J-E3/67A is a General Purpose Surface Mount Diode designed in a compact DO-214BA package measuring 4.75mm in length and 2.9mm in width. It supports a maximum continuous forward current of 1A and can withstand peak reverse repetitive voltages up to 600V, making it well-suited for efficient rectification tasks in power electronics.
The diode has a maximum forward voltage drop of 1.1V and features a very low peak reverse current of 5μA, ensuring minimal energy loss and high performance. It operates effectively over a wide temperature range from -65°C to 175°C, supporting demanding industrial and automotive environments.
This product conforms to automotive reliability standards AEC-Q101 and complies with multiple international certifications such as RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, and UL 94 V-0, ensuring safety and regulatory compliance.
The diode's peak reverse recovery time of 2μs enables high-speed switching operations, while a peak non-repetitive forward surge current capability of 30A allows robust transient handling.
Applications for this diode include industrial power supplies, automotive electrical systems, general-purpose rectification, and high-reliability semiconductor circuits. Its surface mount form factor supports compact PCB layout and efficient manufacturing workflows.
The diode offers high efficiency with a maximum forward voltage of 1.1V. Features a peak reverse repetitive voltage of 600V suitable for general purpose rectification. Compact surface mount DO-214BA package measuring 4.75mm length and 2.9mm width.
Operates reliably between -65°C and 175°C for industrial and automotive applications. Peak reverse current is very low at 5μA ensuring minimal leakage. Designed to comply with automotive standard AEC-Q101 for high reliability.
Equipped with fast peak reverse recovery time of 2μs enhancing switching performance. Constructed according to international standards including RoHS and JESD to ensure quality and safety. This diode has a peak non-repetitive surge current capacity of 30A for transient protection.
Explore comprehensive options and technical specifications of Vishay semiconductors in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay GF1J-E3/67A diode is 1A.
This model has a peak reverse repetitive voltage rating of 600V, making it suitable for general purpose rectification.
The DO-214BA package measures 4.75mm in length and 2.9mm in width.
It operates reliably between -65°C and 175°C, supporting both industrial and automotive applications.
The peak reverse current is very low at 5μA, ensuring minimal leakage.
The maximum forward voltage drop is 1.1V, contributing to its efficiency.
It is designed to comply with the automotive standard AEC-Q101 for high reliability.
The diode has a peak non-repetitive forward surge current capability of 30A, allowing for robust transient handling.
This model features a fast peak reverse recovery time of 2μs, enhancing its switching performance.
It complies with several international standards, including RoHS, JESD 201 Class 1A/Class 2, JESD 22-B102, and UL 94 V-0.
The diode has a pin count of 2, suitable for its surface mount configuration.
This diode is classified as a general purpose rectifier, making it versatile for various applications.
